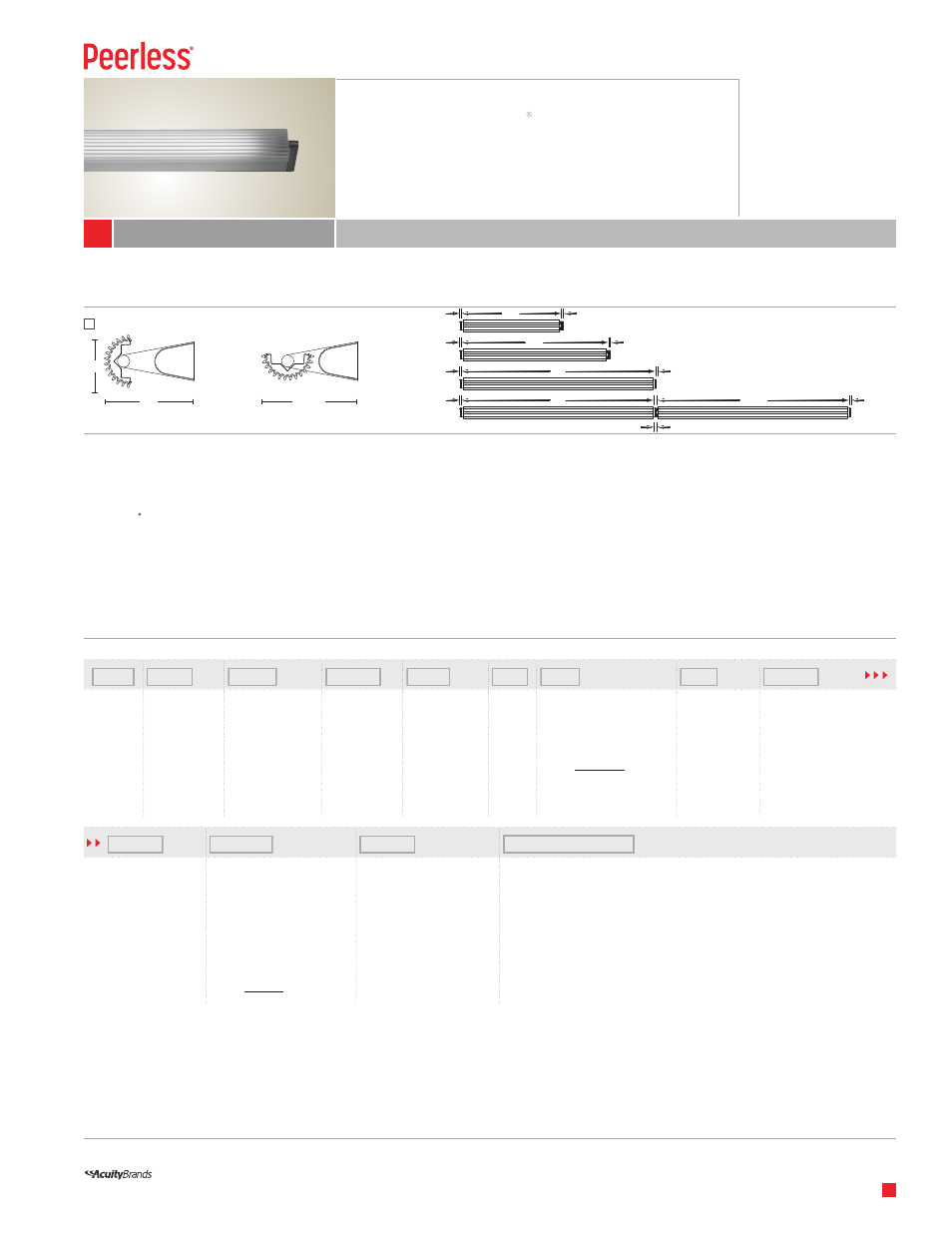

Peerless Lighting CLW9 - T5_T5HO User Manual
Contrail wall, Indirect-direct t5/t5ho, Wall mount
LAMPING OPTIONS
SPECIFICATIONS
CATALOG NUMBER
S P E C I F I C A T I O N S
2246 5th Street, Berkeley, CA 94710
•
Tel: 510.845.2760
•
Fax: 510.845.2776
•
•
__________ __________ __________ __________ __________ __________ __________ __________ __________ __________ __________ __________ _____________________
R2
R3
R4
R8
1
/
4
”
1
/
4
”
1
/
4
”
1
/
4
”
1
/
4
”
1
/
4
”
4’
4’
1
1
/
4
”
1
/
4
”
1
/
4
”
2’
3’
4’
Type:
________________________
Project:
______________________
1
© 2012 Acuity Brands Lighting, Inc. All Rights Reserved. “Peerless” and “Contrail” are registered trademarks of Acuity Brands Lighting.
Products in this document may be covered by one or more U.S. Patents and Patents Pending. Specifications subject to change without notice.
1-year limited warranty. Complete warranty terms locat
Indirect-Direct T5/T5HO
CLW9 Contrail Wall
3 Option EL or EN (Battery Pack) is not permitted in 2’, 3’, 4’ section.
4 ALC (Alternate Lamping Module Circuit) is not available with dimming.
Notes:
1 Not available in 347V
2 Not available with 28T5 lamps
Construction
Cold rolled steel housing. Die-cast aluminum
end caps.
Shielding
GrateOptic curved, crenulated diffuser is extruded
opal acrylic. Shielding can be rotated to one of two
positions, wall-facing or ceiling-facing.
Reflectors
Die-formed, white, high reflectance aluminum
reflector.
Finish
Housing cover is painted white. Select white or
painted aluminum finish for joiners and end caps.
Electrical
Specify 120V, 277V or 347V. Pre-wired with 16AWG
fixture wires. For special circuiting or wire gauge,
consult factory. Plug-in electrical connectors
included. UL and C-UL listed.
Luminaire Length
Individual luminaire lengths in a single section are
2’, 3’, 4’ and 8’. For total luminaire length, add
1
⁄
4
”
for each end cap. Using internal joiners, 2’, 3’, 4’
and 8’ sections can be joined to form longer length
luminaires. Lenses are not continuous in a run or
8’ unit. Lenses are separated by a 1
1
⁄
4
” gap between
lamp modules.
Examples:
CLW9 1 28T5 40FT R8 277 GEB10 SCT LP835 C041 — CLW9 1 54T5HO 32FT R8 277 GEB10 1SE EL SCT LP835 C110
Wall Mount
CLW9
Contrail Wall
Indirect-Direct T5/T5HO
5”
5
3
⁄
8
”
3”
CLW9
__________
__________
__________
_________
__________
__________ __________
__________
__________
Luminaire
CLW9
# of Lamps in
Cross Section
1
Lamp Type
28T5 28W T5
54T5HO 54W T5HO
Available for 3 FT:
21T5 21W T5
39T5HO 39W T5HO
Available for 2 FT:
14T5 14W T5
24T5HO 24W T5HO
Luminaire Row
Length
2 FT
3 FT
4 FT
8 FT
X FT
Maximum
Section
Length
R2
2’ section(s)
R3
3’ section(s)
R4
4’ section(s)
R8
8’ section(s)
Voltage
120
277
347
2
Ballast Type
GEB10
<10% THD Electronic
ADEZ
1,2
Advance Mark 10 dim
DMHL3D
1
Lutron Hi-Lume dim
OSDIM
1,2
Osram 0-10V dim
Referenc
ebsite
or consult factory for other options.
# of Emergency
Modules
(Blank) None
1SE
1 section
2SE
2 sections
XSE
X sections
Emergency Type
3
(Blank) None
EC
Emergency circuit
EL
Emergency battery pack
EN
Emergency battery pack
w/night light circuit
______________
________________
______________
_________________________________
Switching
SCT
Single circuit
ALC
4
Alternate Lamping
Module Circuit
Lamp Color
L/LP No lamp
LP830 3000k 80+ CRI
LP835 3500k 80+ CRI
LP841 4100k 80+ CRI
Available with T5 only:
LP830P 3000K 80+ CRI Premier
LP835P 3500K 80+ CRI Premier
LP841P 4100K 80+ CRI Premier
Referenc
ebsite or
consult factory for other options.
Joiner/End Cap Finish
C041 White white (low gloss)
C110 Painted aluminum (low gloss)
Options
DL
Damp location label
DU
Dust cover
ELH
Emergency through wiring w/separate feed
ELS
Emergency through wiring w/single feed, shared neutral
ELS2 Emergency through wiring w/single feed, separate neutrals
GLR Fusing (fast blow)
GMF Fusing (slow blow)
