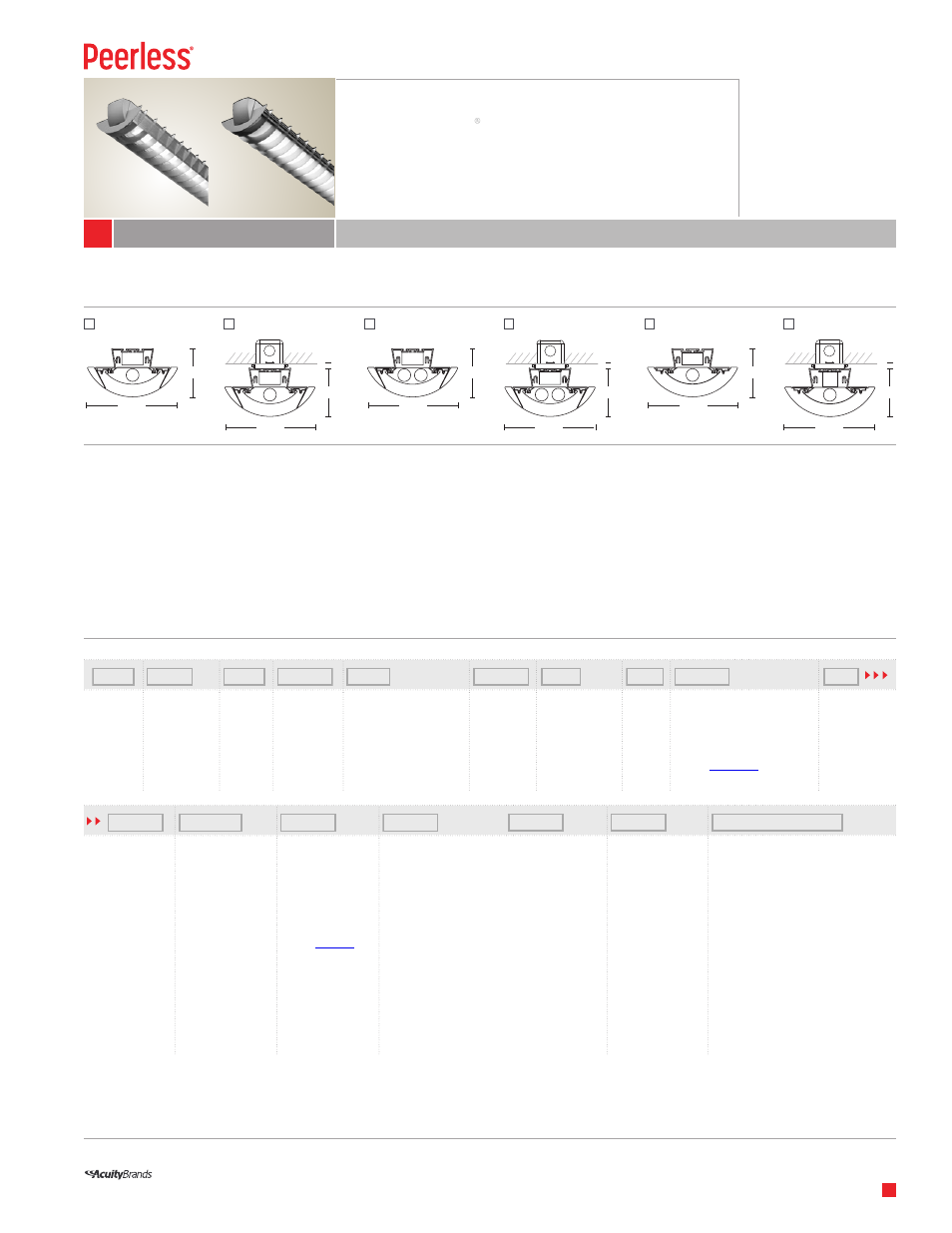

Peerless Lighting ICDM8 - T8 User Manual
Icetray curved direct, Direct t8, Surface/suspended
LAMPING OPTIONS
SPECIFICATIONS
CATALOG NUMBER
S P E C I F I C A T I O N S
__________ __________ __________ __________ __________ __________ __________ __________ __________ __________ __________ __________ __________ __________ __________ _____________________
2246 5th Street, Berkeley, CA 94710
•
Tel: 510.845.2760
•
Fax: 510.845.2776
•
•
With SBP
With OPD
Type:
________________________
Project:
______________________
1
© 2012 Acuity Brands Lighting, Inc. All Rights Reserved. “Peerless” and “IceTray” are registered trademarks of Acuity Brands Lighting.
Products in this document may be covered by one or more U.S. Patents and Patents Pending. Specifications subject to change without notice.
1-year limited warranty. Complete warranty terms locat
Direct T8
Examples:
ICDM8 2 32 SBP 20FT R8 120 GEB10 SCT LP835 F1/18 C100 — ICDM8 S 1 32 OPD 24FT R12 277 GEB10 1SE EN SCT LP835 CO41
Surface/Suspended
ICDM8
IceTray Curved Direct
Direct T8
Construction
Nominal 7” x 4” with extruded aluminum spine
and nominal four 4’ one-piece aluminum baffle
assemblies. Steel and die-cast aluminum sculptured
end cap.
Reflectors
White painted center reflector (nominal 90%
reflectance). Perforated side reflector/shield.
Shielding
Straight blade baffles with perforated side
reflector/shield or opal acrylic diffuser.
Finish
Satin anodized or white polyester powder paint.
Satin anodized finish consists of satin anodized
housing, clear-coated aluminum baffles and end
caps painted C110 to match. Note that clear coated
aluminum baffles retain the slight imperfections
and characteristics of the raw aluminum source
material. Custom colors available, consult factory.
Electrical
Specify 120V, 277V or 347V. Pre-wired with 16AWG
fixture wires. For special circuiting or wire gauge,
consult factory. Plug-in electrical connectors
included. UL and C-UL listed.
Luminaire Length
4’, 8’, and 12’ lengths in a single section for exact
suspension spacing of 4’, 8’ and 12’. For total
luminaire length, add 1
3
⁄
8
” for each end cap. Using
internal joiners 4’, 8’, and 12’ sections can be joined
to form longer rows.
Notes:
1 Not available with 2-lamp cross section
2 Not available in 347V
3 Emergency type is installed in last 4’ of luminaire sections.
Separate feed required unless ELS or ELS2 is specified
__________
__________
__________
__________
__________
_________
__________
__________ __________
__________
Luminaire
ICDM8
Ceiling Type
(Blank) Suspended
S Surface
mounted
# of
Lamps in
Cross
Section
1
2
Lamp Type
32
32W T8
Shielding
OPD
1
Straight blade baffle with
opal diffuser
SBP
Straight blade baffle with
side perforated shield
Luminaire
Row
Length
X FT
(4’ increments)
Maximum
Section
Length
R4
4’ section(s)
R8
8’ section(s)
R12
12’ section(s)
Voltage
120
277
347
Ballast Type
GEB10
<10% THD Electronic
ADEZ
2
Advance Mark 10 dim
DMHL3D
2
Lutron Hi-Lume dim
ADZT
2
Advance Mark 7 0-10V dim
Referenc
ebsite
or consult factory for other options.
# of Emergency
Modules
(Blank) None
1SE
1 section
2SE
2 sections
XSE
X sections
______________
________________
________________
______________
______________
______________
_________________________________
Emergency Type
3
(Blank) None
EC Emergency
circuit
EL
2
Emergency
battery pack
EN
2
Emergency
battery pack
w/night light
circuit
Switching
SCT
Single circuit
DCT Dual circuit
Lamp Color
L/LP No lamp
L/LPE No lamp. Wired
for energy saving
lamps.
LP830 3000K 80+ CRI
LP835 3500K 80+ CRI
LP841 4100K 80+ CRI
Referenc
website or consult factory
for other options.
Mounting Type /
F1/
T-bar ceiling (universal
mounting bracket)
F1A/ T-bar ceiling (UMB with
integrated J-box)
F2/
Hard ceiling (horizontal
J-box)
F3/
Rigid stem
Overall Suspension
12 12”
15 15”
18 18”
21 21”
24 24”
XX XX”
Overall suspension is
measured from ceiling to
bottom of luminaire.
Finish
C041 White white (low
gloss)
C100 Satin anodized
finish
C099 Custom finish
Options
ACG
Adjustable cable grippers
BLK
Black cord, cord manager and canopy
(not available with F3)
CP
Chicago plenum (available with F1A only)
DL
Damp location label
ELH
Emergency through wiring w/separate
feed
ELS
Emergency through wiring w/single feed,
shared neutral
ELS2
Emergency through wiring w/single feed,
separate neutrals
GLR
Fusing (fast blow)
GMF
Fusing (slow blow)
MCS
Matching feed canopy at support
NYC
New York City code
OJB
Offset junction box
SLP
Sloped ceiling (for 10-45°, must be
specified with F2, ACG and OJB options)
ICDM8 - 1 SBP ICDM8 S - 1 SBP
3
13
⁄
16
”
7
1
⁄
8
”
7
1
⁄
8
”
ICDM8 - 2 SBP ICDM8 S - 2 SBP
3
13
⁄
16
”
7
1
⁄
8
”
7
1
⁄
8
”
ICDM8 - 1 OPD ICDM8 S - 1 OPD
3
13
⁄
16
”
7
1
⁄
8
”
7
1
⁄
8
”
3
⁄
8
”
3
13
⁄
16
”
3
⁄
8
”
3
13
⁄
16
”
3
⁄
8
”
3
13
⁄
16
”
ICDM8 IceTray Curved
