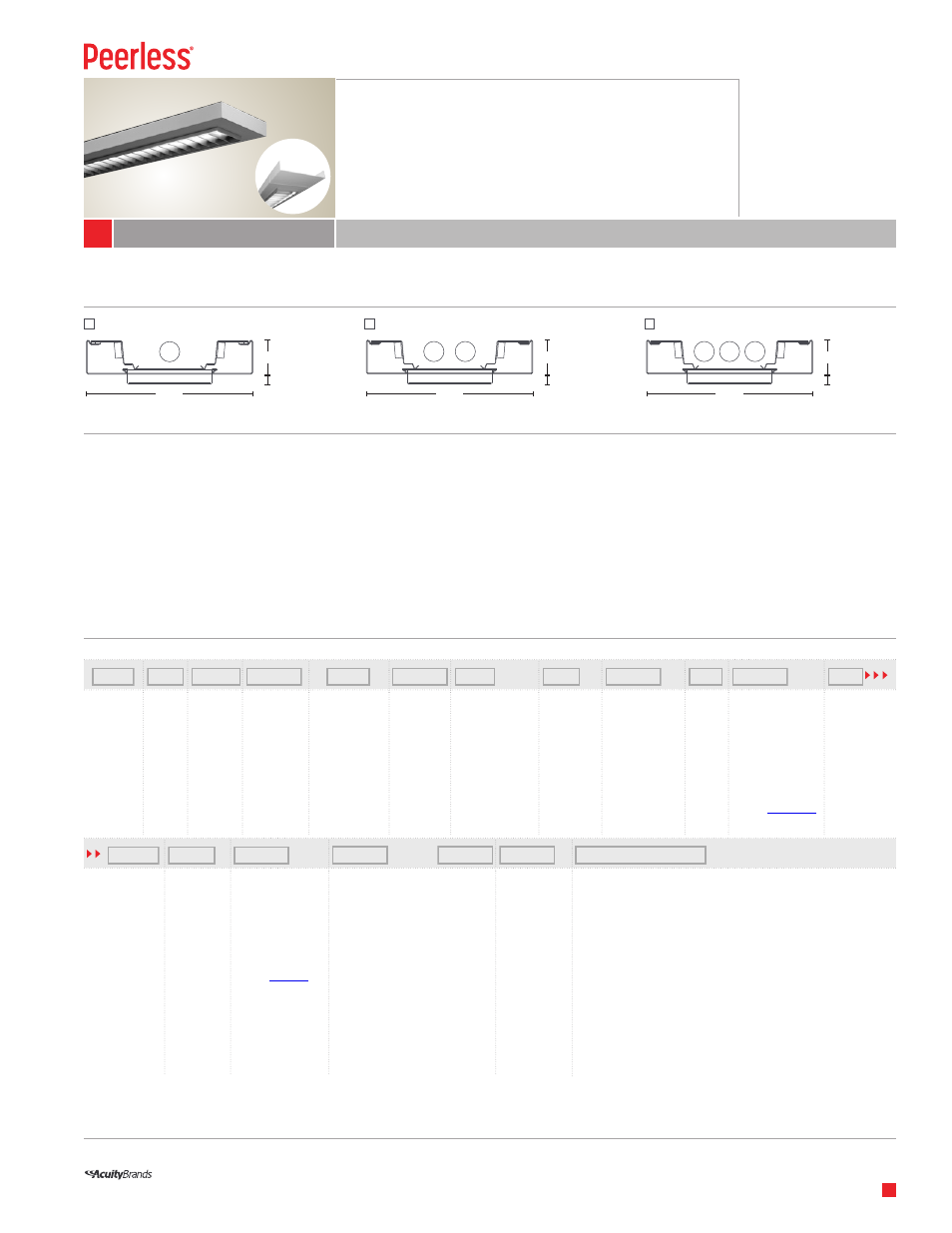

Peerless Lighting BRM4 - T8 User Manual
Bruno i/d, Indirect-direct t8, Suspended
LAMPING OPTIONS
SPECIFICATIONS
CATALOG NUMBER
S P E C I F I C A T I O N S
2246 5th Street, Berkeley, CA 94710
•
Tel: 510.845.2760
•
Fax: 510.845.2776
•
•
________ ________ ________ ________ ________ ________ ________ ________ ________ ________ ________ ________ ________ ________ ________ ________ ________ ________ _____________________
BRM4 1 T8 WHR
BRM4 3 T8 WHR
BRM4 2 T8 WHR
BRM4 1 T8 WHR
BRM4 3 T8 WHR
BRM4 2 T8 WHR
BRM4 1 T8 WHR
BRM4 3 T8 WHR
BRM4 2 T8 WHR
Type:
________________________
Project:
______________________
1
© 2013 Acuity Brands Lighting, Inc. All Rights Reserved. “Peerless” and “Peerless Bruno” are registered trademarks of Acuity Brands Lighting.
Products in this document may be covered by one or more U.S. Patents and Patents Pending. Specifications subject to change without notice.
1-year limited warranty. Complete warranty terms locat
Indirect-Direct T8
BRM4 Bruno I/D
Examples:
BRM4 2 32 SPR WPB 40FT R8 277 GEB10 DCT LP835 F1/18 C210 SCEP — BRM4 3 32 SPR SPR 32FT R8 277 GEB10 1SE EL DCT LP835 F1/21 C110
Construction
Nominal 8
1
⁄
4
” x 1
3
⁄
4
” rectangular housing is formed
from cold-rolled steel. Die-cast end caps are
mechanically attached with no exposed fasteners.
Reflectors
Die-formed specular reflector with 95% reflectance.
Shielding /Baffle
Choose one of four parabolic baffle options: semi-
specular, white painted, semi-specular perforated
blade or white painted, perforated blade. Each
available with optional acrylic opal overlay.
Finish
Fine textured white polyester powder
paint is standard. Consult factory for special
finish requirements.
Electrical
Specify 120V, 277V or 347V. Pre-wired with 16AWG
fixture wires. For special circuiting or wire gauge,
consult factory. Plug-in electrical connectors
included. UL and C-UL listed.
Luminaire Length
4’
3
⁄
8
”, 8’ and 12’ lengths in a single section for
nominal support spacing at 4’, 8’ and 12’. For total
luminaire length, add
5
⁄
8
” for each flat end cap
and 4” for each sculptured end cap. Using internal
joiners, 4’, 8’ and 12’ sections can be joined to form
longer rows.
Suspended
BRM4
SCEP Option
8
1
⁄
4
”
BRM4 - 1
BRM4 - 2
BRM4 - 3
1
3
⁄
4
”
1
⁄
2
”
8
1
⁄
4
”
1
3
⁄
4
”
1
⁄
2
”
8
1
⁄
4
”
1
3
⁄
4
”
1
⁄
2
”
________
_______
_______
__________
__________
__________
__________
_________
__________
_______
__________
__________
Luminaire
BRM4
# of
Lamps
in
Cross
Section
1
2
3
Lamp
Type
32 32W
T8
Reflector
SPR Specular
reflector
Distribution
(Blank) Standard
65/35
20/80
1
20% up,
80% down
40/60
1
40% up,
60% down
0/100
1
0% up,
100% down
CLI
2
Center lamp
isolater
Shielding
(Blank)
OPD Opal
overlay
Baffle
SSB Semi-specular
baffle
WPB White painted
baffle
SSP Semi-specular
perforated
blade baffle
WPP White painted
perforated
blade baffle
Luminaire
Row
Length
X FT
(4’ increments)
Maximum
Section
Length
R4
4’ section(s)
R8
8’ section(s)
R12
12’ section(s)
Voltage
120
277
347
Ballast Type
GEB10
<10% THD
Electronic
ADEZ
3
Advance
Mark 10 dim
DMHL3D
3
Lutron Hi-
Lume dim
OSDIM
3
Osram
0-10V dim
Referenc
on website or consult
factory for other options.
# of
Emergency
Modules
(Blank) None
1SE
1 section
2SE
2 sections
XSE
X sections
______________ _______
________________
______________
______________
______________
_________________________________
Emergency
Type
4
(Blank) None
EC Emergency
circuit
EL
3
Emergency
battery
pack
EN
3
Emergency
battery
pack
w/night
light circuit
Switching
SCT Single
circuit
DCT Dual
circuit
Lamp Color
L/LP No lamp
L/LPE No lamp. Wired
for energy saving
lamps.
LP830 3000K 80+ CRI
LP835 3500K 80+ CRI
LP841 4100K 80+ CRI
Referenc
website or consult factory
for other options.
Mounting Type /
F1/
T-bar ceiling
(universal
mounting bracket)
F1A/ T-bar ceiling (UMB
with integrated
J-box)
F2/
Hard ceiling
(horizontal J-box)
F3/
Rigid stem
Overall
Suspension
12 12”
15 15”
18 18”
21 21”
24 24”
XX XX”
Overall
suspension
is measured
from ceiling
to bottom of
luminaire.
Finish
C110 Painted
aluminum
(low gloss)
C210 White
white
(fine-
textured
low gloss)
C099 Custom
finish
Options
ACG
Adjustable cable grippers
BLK
Black cord, cord manager and canopy (not available with F3)
CP
Chicago plenum (available with F1A only)
DL
Damp location label
DU
Dust cover
ELH
Emergency through wiring w/separate feed
ELS
Emergency through wiring w/single feed, shared neutral
ELS2
Emergency through wiring w/single feed, separate neutrals
GLR
Fusing (fast blow)
GMF
Fusing (slow blow)
MCS
Matching feed canopy at support
NEPP5D nLight enabled control module per row/zone
NYC
New York City code
OJB
Offset junction box
SCEP
Sculptured end cap
SLP
Sloped ceiling (for 10-45°, must be specified with F2, ACG and OJB options)
XXXX Integrated sensor; choose options and obtain code on page 2
Notes:
1 Nominal distribution, refer to photometric tests for exact
distribution. Not available with DU option
2 Available with 3-lamp cross section luminaires only
3 Not available in 347V
4 Emergency type is installed in last 4’ of luminaire sections.
Separate feed required unless ELS or ELS2 is specified
Bruno I/D
Indirect-Direct T8
