Peerless Lighting MRM4 - T8 User Manual

Mirage, Indirect-direct t8, Suspended

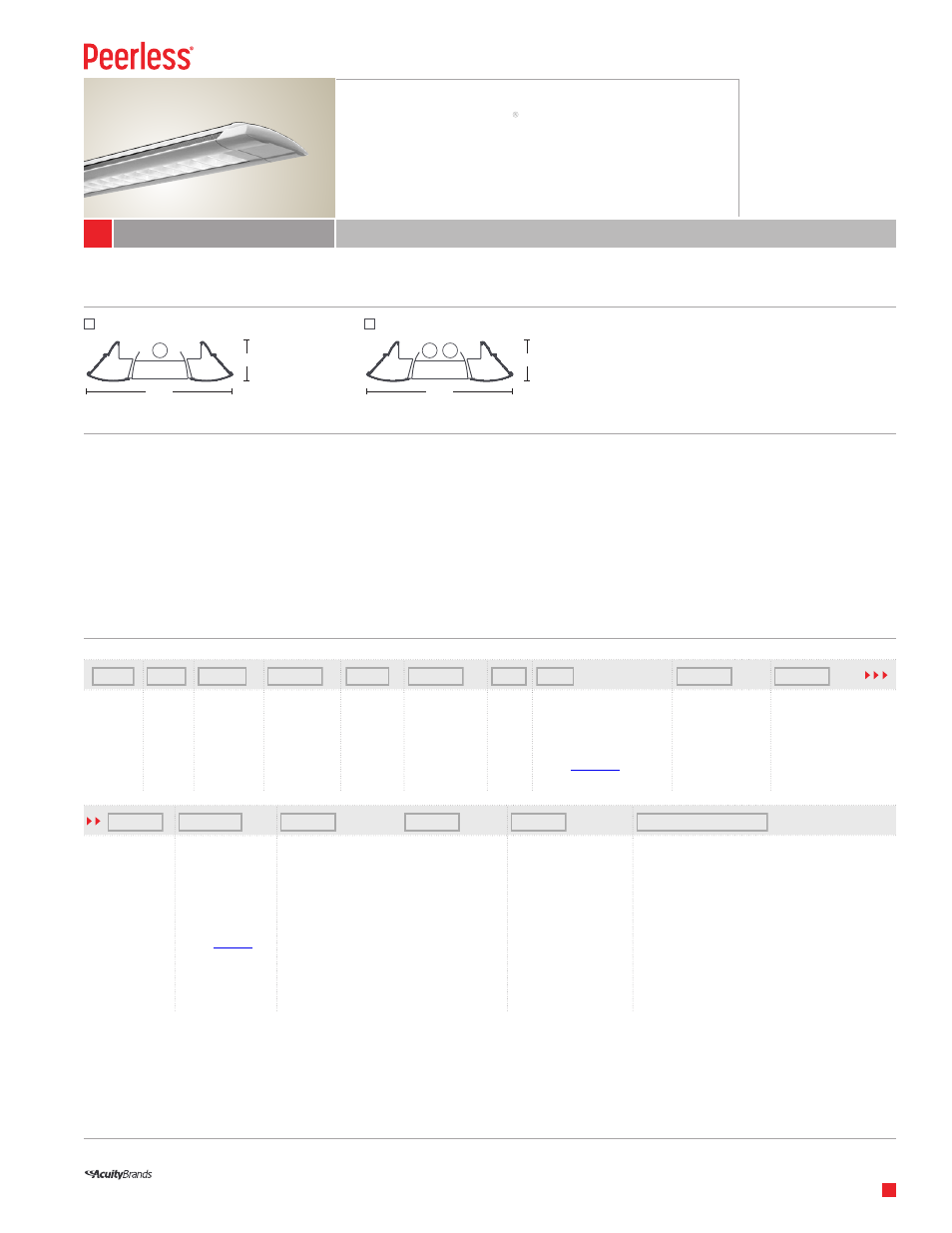

background image

LAMPING OPTIONS

SPECIFICATIONS

CATALOG NUMBER

S P E C I F I C A T I O N S

__________ __________ __________ __________ __________ __________ __________ __________ __________ __________ __________ __________ __________ __________ __________ _____________________

2246 5th Street, Berkeley, CA 94710

Tel: 510.845.2760

Fax: 510.845.2776

Email: [email protected]

PeerlessLighting.com

Type:

________________________

Project:

______________________


1

© 2012 Acuity Brands Lighting, Inc. All Rights Reserved. “Peerless” and “Mirage” are registered trademarks of Acuity Brands Lighting.

Products in this document may be covered by one or more U.S. Patents and Patents Pending. Specifications subject to change without notice.

1-year limited warranty. Complete warranty terms located at www.acuitybrands.com/customerresources/terms_and_conditions.aspx

Indirect-Direct T8

MRM4  Mirage

Suspended

MRM4

Examples:

MRM4 1 32 SSB 40FT R8 120 GEB10 2SE EL SCT LP835 F1/24 C041 — MRM4 2 32 SSB 12FT R12 277 GEB10 DCT L/LP F2/15 C100 GLR

Mirage

Indirect-Direct T8

MRM4 - 2

MRM4 - 1

2

3

4

9

7

8

2

3

4

9

7

8

Construction

Housing is extruded aluminum forming a

9

7

8

” x 2

3

4

” profile. Die-cast end caps mechanically

attaches with no exposed fasteners.

Reflectors

Die-formed hammertone specular aluminum.

Shielding

Satin aluminum parabolic baffles with luminous

edges.

Finish

Satin anodized or white paint standard; custom

colors available. Design detail: black perforated

side strips.

Electrical

Specify 120V, 277V or 347V. Pre-wired with 16AWG

fixture wires. For special circuiting or wire gauge,

consult factory. Plug-in electrical connectors

included. UL and C-UL listed.

Luminaire Length

4’, 8’ and 12’ lengths in a single section for exact

suspension spacing of 4’, 8’, and 12’. For total

luminaire length, add 4

1

4

” for each end cap. Using

internal joiners, 4’, 8’ and 12’ sections can be joined

to form longer rows.

________

________

________

________

________

________

________

________

________

________

Luminaire

MRM4

# of

Lamps in

Cross

Section

1

2

Lamp Type

32

32W T8

Baffle

SSB

Semi-

specular

Baffle

Luminaire

Row

Length

X FT

(4’ increments)

Maximum

Section

Length

R4

4’ section(s)

R8

8’ section(s)

R12

12’ section(s)

Voltage

120

277

347

Ballast Type

ADZT

1

Advance Mark 7 0-10V

dim

GEB10

<10% THD Electronic

DMHL3D

1

Lutron Hi-Lume dim

Reference

Ballast Wizard

on website

or consult factory for other options.

# of Emergency

Modules

(Blank) None

1SE

1 section

2SE

2 sections

XSE

X sections

Emergency Type

2

(Blank) None

EC

Emergency circuit

EL

1

Emergency battery pack

EN

1

Emergency battery pack

w/night light circuit

______________

________________

______________

______________

______________

_________________________________

Switching

SCT

Single circuit

DCT Dual circuit

Lamp Color

L/LP No lamp

L/LPE No lamp. Wired

for energy

saving lamps.

LP830 3000k 80+ CRI

LP835 3500k 80+ CRI

LP841 4100k 80+ CRI
Reference

Lamp Chart

on

website or consult factory

for other options.

Mounting Type /

F1/

T-bar ceiling (universal

mounting bracket)

F1A/ T-bar ceiling (UMB with

integrated J-box)

F2/

Hard ceiling (horizontal

J-box)

Overall Suspension

12 12”

15 15”

18 18”

21 21”

24 24”

XX XX”
Overall suspension is

measured from ceiling to

bottom of luminaire.

Finish

C041 White white (low gloss)

C100 Satin anodized finish

C099 Custom finish

Options

ACG Adjustable cable grippers

BLK

Black cord, cord manager and canopy

CP

Chicago plenum (available with F1A only)

DL

Damp location label

ELH

Emergency through wiring w/separate feed

ELS

Emergency through wiring w/single feed, shared neutral

ELS2 Emergency through wiring w/single feed, separate neutrals

GLR Fusing (fast blow)

GMF Fusing (slow blow)

MCS Matching feed canopy at support

NYC New York City code

OJB

Offset junction box

SLP

Sloped ceiling (for 10-45°, must be specified with F2, ACG

and OJB options)

Notes:

1 Not available in 347V

2 Emergency type is installed in last 4’ of luminaire sections.

Separate feed required unless ELS or ELS2 is specified
