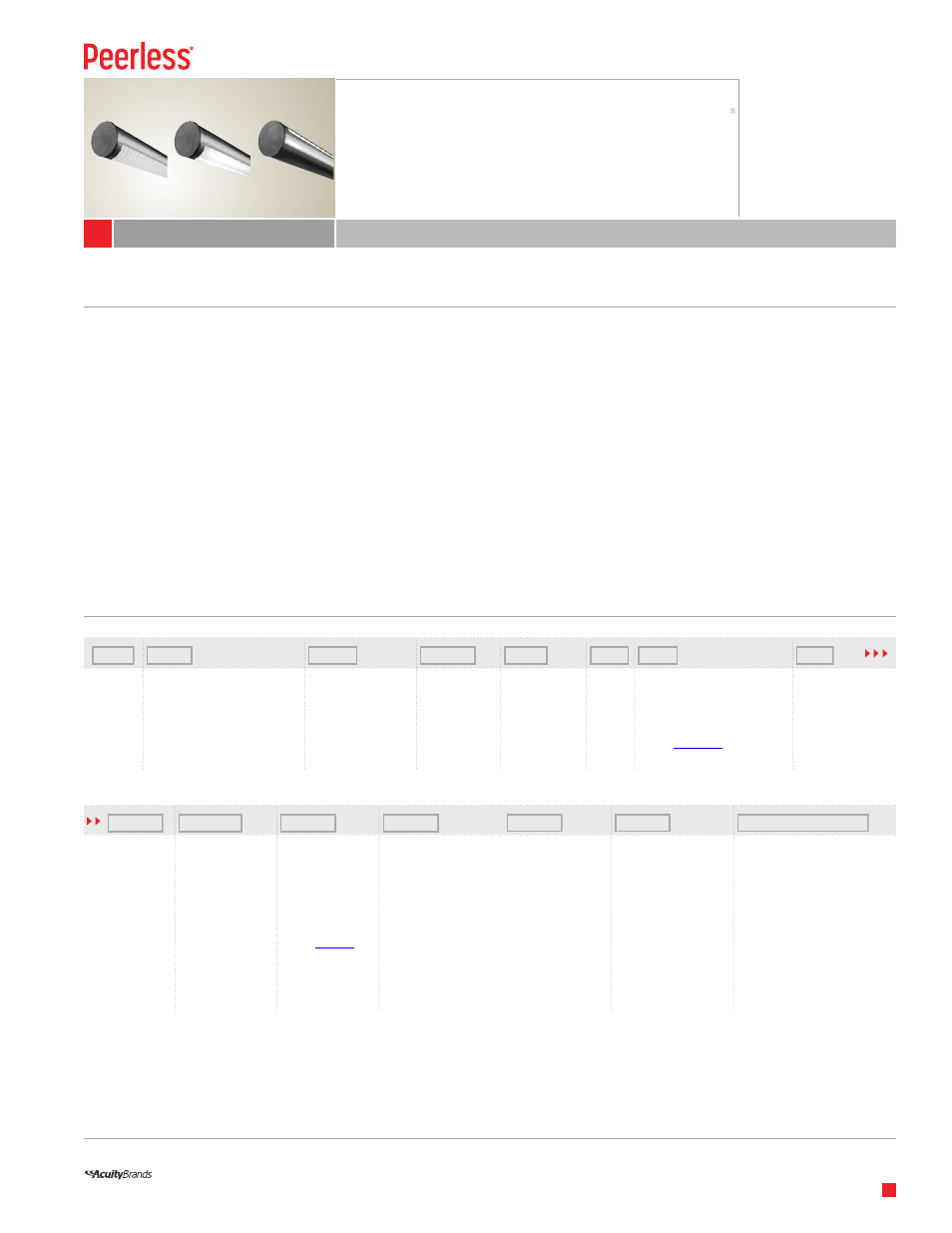

9” Diameter T8
LD9 Classic Round
Construction
One- or two-piece nominal 9” diameter
housing is extruded aluminum. Die-cast aluminum
end plates are mechanically attached with no
exposed fasteners.
Reflectors
Formed steel with white finish.
Shielding
Baffle: One piece white painted aluminum baffle
with snap-on feature.
Upper Lens: Linear prismatic virgin acrylic with snap
on feature. Lens has interior longitudinal prisms and
smooth exterior.
Lower Lens: Linear prismatic virgin acrylic with snap
on feature. Lens has exterior longitudinal prisms and
smooth interior.
Finish
C041 White white (low gloss) standard; custom
colors available, consult factory.
Electrical
Specify 120V, 277V or 347V. Pre-wired with 16AWG
fixture wires. For special circuiting or wire gauge,
consult factory. Plug-in electrical connectors
included. UL and C-UL listed.
Luminaire Length
4’, 8’, and 12’ lengths in a single section for exact
suspension spacing of 4’, 8’ and 12’. Using internal
joiners 4’, 8’, and 12’ sections can be joined to form
longer rows.
Examples:
LD9 030203 T8 12FT R4 120 GEB10PS 1SE EC SCT LP830 F1/24 C100 DL
Suspended / Wall
LD9
Classic Round
9” Diameter T8
__________
__________
__________
_________
__________
__________ __________
__________
Luminaire
LD9
LD9W
Light Direction/# of Lamps
Up/# of Lamps Down/Shielding
020202
030203
102102
102201
103103
103202
Lamp Type
32
32W T8
(T5, T5HO available with some
shielding options. Consult
factory for more information.)
Luminaire Row
Length, Special
X FT
Maximum
Section Length
R4
4’ section(s)
R8
8’ section(s)
R12
12’ section(s)
Voltage
120
277
347
Ballast Type
GEB10PS
<10% THD Electronic
ADEZ
Advance Mark 10 dim
DMHL3D Lutron Hi-Lume dim
ADZT
Advance Mark 7 0-10V dim
Referenc
ebsite
or consult factory for other options.
# of Emergency
Modules
(Blank) None
1SE
1 section
2SE
2 sections
XSE
X sections
______________
________________
________________
______________
______________
______________
_________________________________
Emergency Type
1
(Blank) None
EC Emergency
circuit
EL Emergency
battery pack
EN Emergency
battery pack
w/night light
circuit
Switching
SCT
Single circuit
DCT Dual circuit
Lamp Color
L/LP No lamp
L/LPE No lamp. Wired
for energy saving
lamps.
LP830 3000K 80+ CRI
LP835 3500K 80+ CRI
LP841 4100K 80+ CRI
Referenc
website or consult factory
for other options.
Mounting Type /
F1/
T-bar ceiling (universal
mounting bracket)
F1A/ T-bar ceiling (UMB with
integrated J-box)
F2/
Hard ceiling (horizontal
J-box)
F3/
Rigid stem
Overall Suspension
24 24”
48 48”
96 96”
144 144”
XX XX”
Overall suspension is
measured from ceiling to
bottom of luminaire.
Finish
C041 White white (low gloss)
C100 Satin anodized finish
C099 Custom finish
Options
CP
Chicago plenum (available
with F1A only)
DL
Damp location label
ELH
Emergency through wiring w/
separate feed
ELS
Emergency through wiring w/
single feed, shared neutral
GLR
Fusing (fast blow)
GMF
Fusing (slow blow)
NYC
New York City code
RIF
Radio interference filter
Notes:
1 EL and EC are installed in last 4’ of luminaire sections and are not available concurrently.
Separate feed required for each EL, EC or EN unless ELH or ELS is specified
222201
222750
223202
Solid/Baffle
Lens/Lens
Lens/Solid
