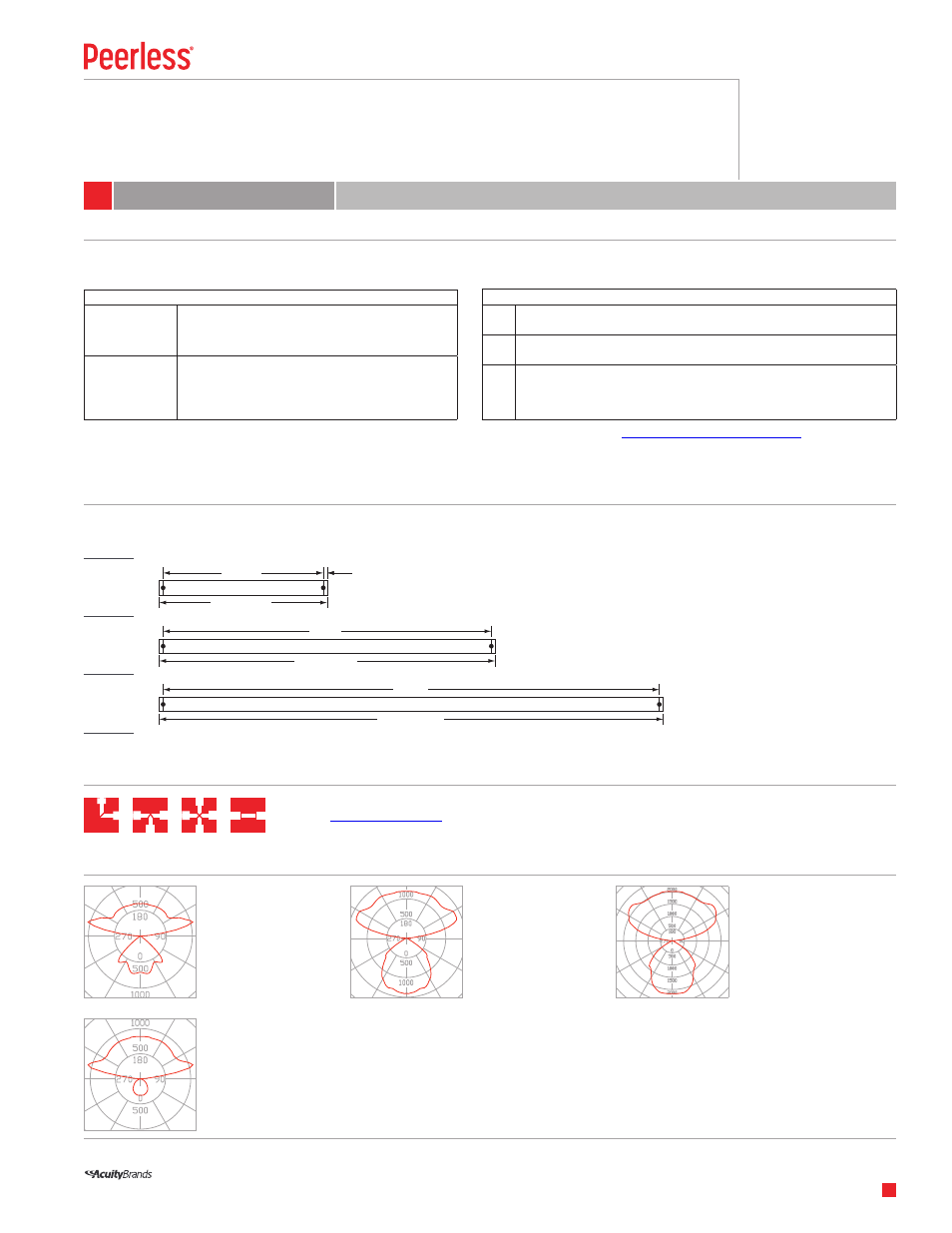

2246 5th Street, Berkeley, CA 94710

Tel: 510.845.2760

Fax: 510.845.2776

Email: [email protected]

PeerlessLighting.com

INTEGRATED NLIGHT MICRO SENSOR

STANDARD SECTIONS

PLAN VIEW

Type:

________________________

Project:

______________________

PHOTOMETRICS

WEIGHTS & SUPPORT SPACING

CONFIGURATIONS

22 LBS

38 LBS

54 LBS

5

8

” standard flat end plates

4” optional sculptured end plates

Key:

Support or feed location

x

Please consult factory for sensor placement

4’-1

5

8

” O.A.

8’-0”

12’-0”

8’-1

1

4

” O.A.

12’-1

1

4

” O.A.

4’-0

3

8

Tenon “L”, “T”, “X” and straight connectors available for suspended configurations.

Reference

Pattern Connector Guide

for additional details.

Actual performance may differ as a result of end-user environment and application.

2

© 2013 Acuity Brands Lighting, Inc. All Rights Reserved. “Peerless” and “Peerless Bruno” are registered trademarks of Acuity Brands Lighting.

Products in this document may be covered by one or more U.S. Patents and Patents Pending. Specifications subject to change without notice.

1-year limited warranty. Complete warranty terms located at www.acuitybrands.com/customerresources/terms_and_conditions.aspx

Indirect-Direct T5/T5HO

BRM4  Bruno I/D

Suspension spacing equals section length. Default location shown. Consult factory for stem mounting suspension spacing and alternate locations.

Network Type & Sensor Power Source (choose one)

1*

nLight-Enabled (Network-Ready) with Luminaire-Integrated Power Pack

10’ Cat-5e cable and splitter provided

2

Standalone Operation (No Networking) with Luminaire Integrated Power Pack

No Cat-5e cable provided

3*

nLight-Enabled (Network-Ready) with Remote nLight Power Pack or nPanel

10’ Cat-5e cable and splitter provided

Order required remote nLight Power Pack or nPanel

separately through nLight (Acuity Brands Controls)

Determine the appropriate sensor type, network type and sensor power source for your application. Enter the code in the Options section of the Catalog Number.

EXAMPLE:

PDT1

Sensor Type (choose one)

ADC

nLight model

nES ADCX

Daylight Dimming

Specify 0-10V dimming ballast

No occupancy sensing

PDT

nLight model

nES PDT7 ADCX

Daylight Dimming and/or Occupancy Detection

Specify 0-10v dimming ballast for daylight dimming

Specify fixed-output ballast for occupancy detection only

(daylight dimming disabled)

For more information about the Integrated nLight Micro Sensor, its capabilities and options, download the PDF guide at:

PeerlessLighting.com/nLight-Sensor-Guide

*nLight-Enabled (network-ready) options include one RJ-45 connector on the luminaire and 10’ of Cat-5e cable and a splitter to control the entire luminaire row (depending on

wattage/voltage limitations). The Cat-5e cable drop is located in the same section as the sensor. For multiple zones, please contact [email protected].

1-LAMP T5HO

88.8% efficiency

4438 delivered lumens

68.2% up / 31.8% down

2-LAMP T5HO

88.8% efficiency

8804 delivered lumens

59.4% up / 40.6% down

3-LAMP T5HO

83.0% efficiency

12445 delivered lumens

65.7% up / 34.3% down

1-LAMP T5HO WITH OPD

88.3% efficiency

4415 delivered lumens

84.2% up / 15.8% down

Suspended

BRM4

Bruno I/D

Indirect-Direct T5/T5HO
