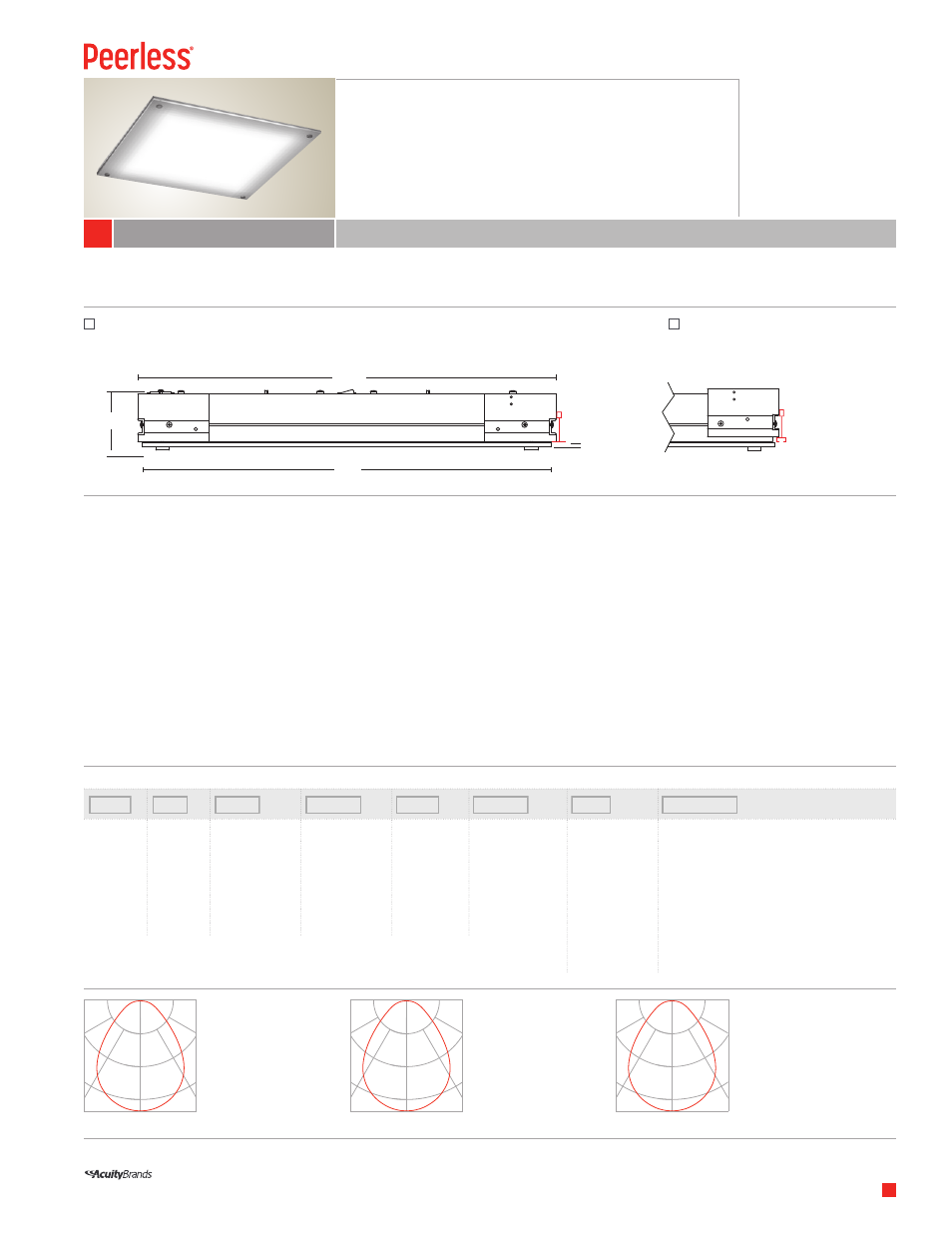

Peerless Lighting MN92x2 Rec - LED User Manual
Peerless mino, Direct – recessed – 2’ x 2, Available luminaires
AVAILABLE LUMINAIRES
S P E C I F I C A T I O N S
__________ __________ __________ __________ __________ __________ __________ _____________________
2246 5th Street, Berkeley, CA 94710
•
Tel: 510.845.2760
•
Fax: 510.845.2776
•
•
CATALOG NUMBER
SPECIFICATIONS
90
270
90
270
90
270
Type:
________________________
Project:
______________________
LP830
101 lumens per watt
3837 delivered lumens
100% down
LP835
103 lumens per watt
3860 delivered lumens
100% down
LP840
108 lumens per watt
4056 delivered lumens
100% down
Actual performance may differ as a result of end-user environment and application.
1
© 2013 Acuity Brands Lighting, Inc. All Rights Reserved. “Peerless” is a registered trademark of Acuity Brands Lighting.
Products in this document may be covered by one or more U.S. Patents and Patents Pending. Specifications subject to change without notice.
1-year limited warranty. Complete warranty terms locat
Direct – Recessed – 2’ x 2’
MN9 Peerless Mino LED
________
________
________
________
________
________
________
________
Luminaire
MN9
Dimension
2X2
Mounting Type
G T-grid
ST
Screw slot grid
RW
Recessed wall
Voltage
MVOLT 120V-277V
347 347V
Driver Type
D38 38W
maximum
LED Color
Temperature
LP830 3000K 80+ CRI
LP835 3500K 80+ CRI
LP840 4000K 80+ CRI
Finish
C312 White (satin)
Options
GLR
Fusing (fast blow)
GMF
Fusing (slow blow)
FLNGW
1
Dry wall grid adapter
LM
80% lumen management without networking
N80
nLight-enabled control module per row/zone with
80% constant lumen management
N80EMG nLight with 80% (L80) lumen management for use
with generator supply EM power
N100
nLight-enabled control module per row/zone without
lumen management
N100EMG nLight without lumen management for use with
generator supply EM power
Construction
Extruded aluminum with mitered corners
forms housing.
Source
Three LED color temperature options —
3000K, 3500K or 4000K — all within
2.5 MacAdam ellipses.
Lens
1
⁄
4
” acrylic, high-performance Softshine
®
lens
fastened with thumb screws.
Finish
White paint is standard.
Mounting
Installs into most standard T-grid and screw slot
grid ceilings.
Controls
Optional nLight-embedded controls allow for
constant lumen management (N80) and facilitate
simple “plug-and-play” networking and control via
Cat-5 cable.
Electrical
LED light engine consists of modular LED boards
and 0-10V dimmable driver rated (to 5%) for
50,000 hours (L
80
) at 25°C ambient temperature.
Specify MVOLT for 120V-277V or 347V with
transformer. Pre-wired with 16AWG fixture wire.
For special circuiting or wire gauge, consult factory.
Validation
CSA/CUS listed. FCC part 15 certified.
LM-79 tested. Lighting Facts partner.
DesignLights Consortium qualified luminaire.
Warranty
Five-year warranty includes luminaire construction,
LED light engine, driver and optional nLight control
device. Terms and conditions apply.
Eco-friendly Packaging
100% post-consumer recycled box. 100%
recycled cardboard inserts and kraft paper tape.
Biodegradable, protective luminaire bag.
Example:
MN9 2X2 G MVOLT D38 LP835 C312 N80
23” x 23” x 3
1
⁄
8
”
MN9
Peerless Mino
LED
Direct – Recessed – 2’ x 2’
MN9 2X2 G
T-Grid
MN9 2X2 ST
Screw Slot Grid
3
1
⁄
8
”
23”
1
⁄
4
”
below
ceiling
30 LBS
23
3
⁄
4
”
Notes:
1 For use on hard-surface ceilings. Minimum 10” plenum clearance required. Must specify mounting type G with this option
PHOTOMETRICS
