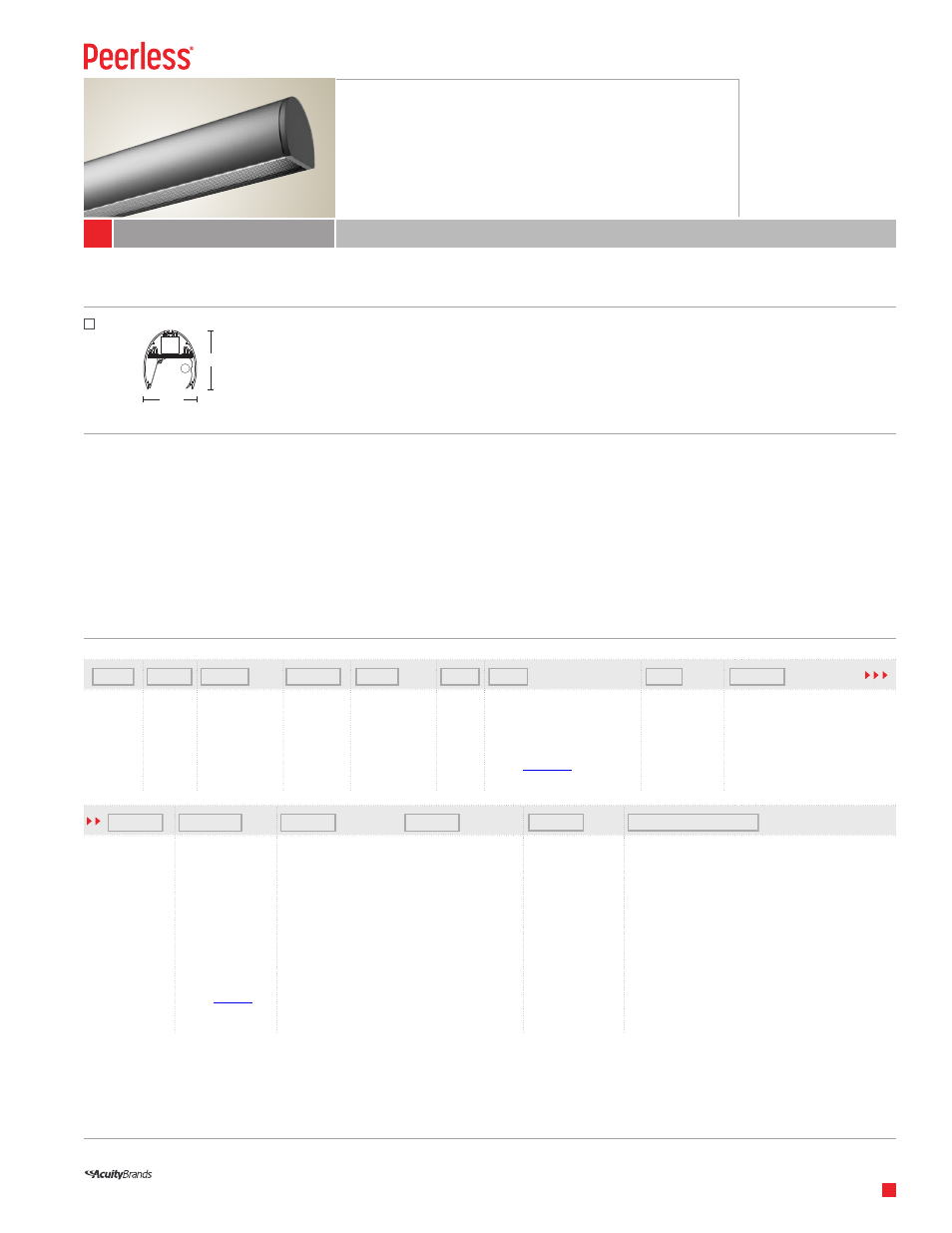

Peerless Lighting TLMW - T5_T5HO User Manual
Tulip wall-wash, Direct t5/t5ho, Suspended
LAMPING OPTIONS
SPECIFICATIONS
CATALOG NUMBER
S P E C I F I C A T I O N S
2246 5th Street, Berkeley, CA 94710
•
Tel: 510.845.2760
•
Fax: 510.845.2776
•
•
__________ __________ __________ __________ __________ __________ __________ __________ __________ __________ __________ __________ __________ __________ _____________________
TLMW 1-T5
Type:
________________________
Project:
______________________
1
© 2012 Acuity Brands Lighting, Inc. All Rights Reserved. “Peerless” is a registered trademark of Acuity Brands Lighting.
Products in this document may be covered by one or more U.S. Patents and Patents Pending. Specifications subject to change without notice.
1-year limited warranty. Complete warranty terms locat
Direct T5/T5HO
TLMW Tulip Wall-Wash
Examples:
TLMW 1 28T5 40FT R8 120 GEB10 SCT LP835 F1/18 C100 — TLMW 1 28T5 40FT R8 277 GEB10 1SE EC SCT LP835 F3/21 C041
Suspended
TLMW
Tulip Wall-Wash
Direct T5/T5HO
TLMW
3
5
⁄
8
”
4”
__________
__________
__________
_________
__________
__________ __________
__________
__________
Luminaire
TLMW
# of
Lamps in
Cross
Section
1
Lamp Type
28T5 28W T5
54T5HO 54W T5HO
Luminaire
Row
Length
X FT
(4’ increments)
Maximum
Section
Length
R4
4’ section(s)
R8
8’ section(s)
R12
12’ section(s)
Voltage
120
277
347
Ballast Type
GEB10
<10% THD Electronic
ADEZ
1,2
Advance Mark 10 dim
DMHL3D
1
Lutron Hi-Lume dim
OSDIM
1,2
Osram 0-10V dim
Referenc
ebsite
or consult factory for other options.
# of Emergency
Modules
(Blank) None
1SE
1 section
2SE
2 sections
XSE
X sections
Emergency Type
3
(Blank) None
EC
Emergency circuit
EL
1
Emergency battery pack
EN
1
Emergency battery pack
w/night light circuit
______________
________________
______________
______________
______________
_________________________________
Switching
SCT
Single circuit
Lamp Color
L/LP No lamp
LP830 3000k 80+ CRI
LP835 3500k 80+ CRI
LP841 4100k 80+ CRI
Available with T5 only:
LP830P 3000K 80+
CRI Premier
LP835P 3500K 80+
CRI Premier
LP841P 4100K 80+
CRI Premier
Referenc
website or consult factory
for other options.
Mounting Type /
F1/
T-bar ceiling (universal
mounting bracket)
F1A/ T-bar ceiling (UMB with
integrated J-box)
F2/
Hard ceiling (horizontal
J-box)
F3
4
/ Rigid stem
Overall Suspension
12 12”
15 15”
18 18”
21 21”
24 24”
XX XX”
Overall suspension is measured
from ceiling to bottom of
luminaire.
Finish
C041 White white (low
gloss)
C100 Satin anodized
finish
C099 Custom finish
Options
ACG
Adjustable cable grippers
BLK
Black cord, cord manager and canopy (not available with F3)
CP
Chicago plenum (available with F1A only)
DL
Damp location label
ELH
Emergency through wiring w/separate feed
ELS
Emergency through wiring w/single feed, shared neutral
ELS2
4
Emergency through wiring w/single feed, separate neutrals
GLR
Fusing (fast blow)
GMF
Fusing (slow blow)
MCS
Matching feed canopy at support
NEPP5D nLight enabled control module per row/zone
NYC
New York City code
OJB
Offset junction box
SLP
Sloped ceiling (for 10-45°, must be specified with F2, ACG and
OJB options)
XXXX Integrated sensor; choose options and obtain code on page 2
Notes:
1 Not available in 347V
2 Not available with 28T5 lamps
Construction
Extruded aluminum housing forms a 3
5
⁄
8
” x 4”
curved channel. Die-cast aluminum end caps
mechanically attached with no exposed fasteners.
Reflectors
Specular asymmetric reflector system with black
perforated metal diffuser.
Finish
Satin anodized or white low gloss paint. With satin
anodized option, housing is satin anodized and end
caps are painted to match. Custom colors available,
consult factory.
Electrical
Specify 120V, 277V or 347V. Pre-wired with 16AWG
fixture wire s. For special circuiting or wire gauge,
consult factory. Plug-in electrical connectors
included. UL and C-UL listed.
Luminaire Length
4’, 8’ and 12’ lengths in a single section for exact
suspension spacing of 4’, 8’, and 12’. For total
luminaire length, add
3
⁄
8
” for each end cap or 1”
for each sculptured end cap (SCEP) when F3 stem
mount or option ELS2 is specified. Using internal
joiners, 4’, 8’ and 12’ sections can be joined to form
longer rows.
Eco-friendly Packaging
100% post-consumer recycled cardboard box,
100% recycled cardboard cradles and kraft paper
tape. Biodegradable, protective luminaire bag.
3 Emergency type is installed in last 4’ of luminaire
sections. Separate feed required unless ELS or ELS2 is
specified
4 1” sculptured end cap (SCEP) used
