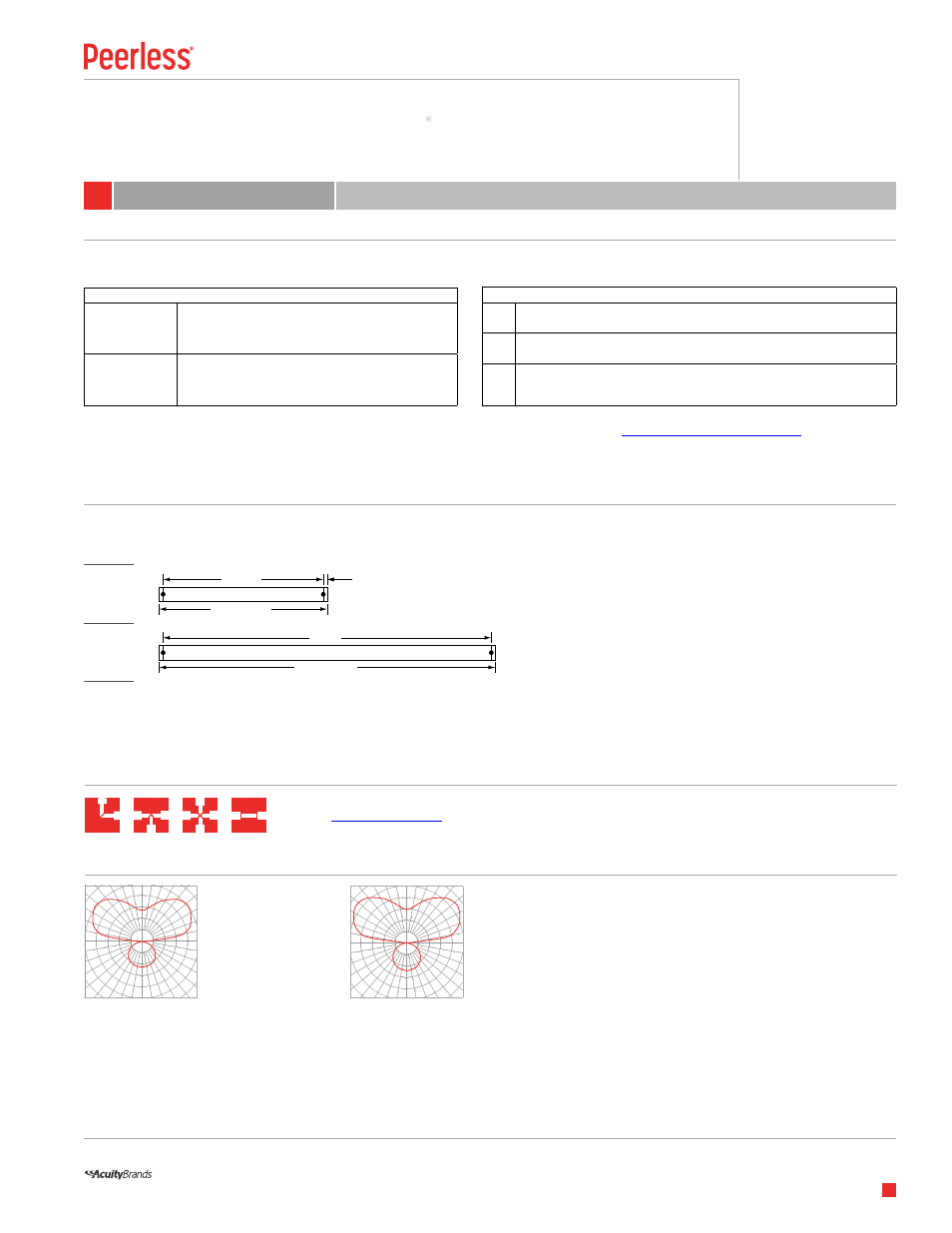

2246 5th Street, Berkeley, CA 94710 • Tel: 510.845.2760 • Fax: 510.845.2776 • Email: [email protected] • PeerlessLighting.com
INTEGRATED NLIGHT MICRO SENSOR
STANDARD SECTIONS
PLAN VIEW
LO
116 lm/W
3400 delivered lumens
70% up / 30% down
HI
113 lm/W
4800 delivered lumens
70% up / 30% down
Type: ________________________
Project: ______________________
WEIGHTS & SuppORT SpACING WEIGHTS & SuppORT SpACING
22 LBS
38 LBS
5 ⁄
8
” standard flat end plates
4” optional sculptured end plates
Key:
• Support or feed location
x
please consult factory for sensor placement
4’-1 5 ⁄
8
” O.A.
8’-0”
8’-1 1 ⁄
4
” O.A.
4’-0 3 ⁄
8
”
2
© 2013 Acuity Brands Lighting, Inc. All Rights Reserved. “peerless” and “peerless Bruno” are registered trademarks of Acuity Brands Lighting.
products in this document may be covered by one or more u.S. patents and patents pending. Specifications subject to change without notice.
5-year limited warranty. Complete warranty terms located at www.acuitybrands.com/customerresources/terms_and_conditions.aspx I/D or Direct
BRM9L Bruno LED Softshine
Suspension spacing equals section length. Default location shown. Consult factory for stem mounting suspension spacing and alternate locations.
Bruno
LED
Softshine
I/D or Direct
Suspended BRM9L
pHOTOMETRICS
375
500
250
125
0
550
733
367
183
0
CONfIGuRATIONS
Tenon “L”, “T”, “X” and straight connectors available for suspended configurations.
Reference Pattern Connector Guide for additional details.
Actual performance may differ as a result of end-user environment and application.
Determine the appropriate sensor type, network type and sensor power source for your application. Enter the code in the Options section of the Catalog Number.
EXAMpLE: PDT1
Sensor Type (choose one)
ADC
nLight model
nES ADCX
Daylight Dimming
No occupancy sensing
PDT
nLight model
nES pDT7 ADCX
Daylight Dimming and Occupancy Detection
for more information about the Integrated nLight Micro Sensor, its capabilities and options, download the pDf guide at: PeerlessLighting.com/nLight-Sensor-Guide
*nLight-Enabled (network-ready) options include one RJ-45 connector on the luminaire, 10 feet of Cat-5e cable to control the entire luminaire row (depending on
wattage/voltage limitations), and splitter. The Cat-5e cable drop is located in the same section as the sensor. for multiple zones, please contact [email protected].
Network Type & Sensor Power Source (choose one)
1* nLight-Enabled (Network-Ready) with Power Pack in remote driver box
10’ Cat-5e cable and splitter provided
