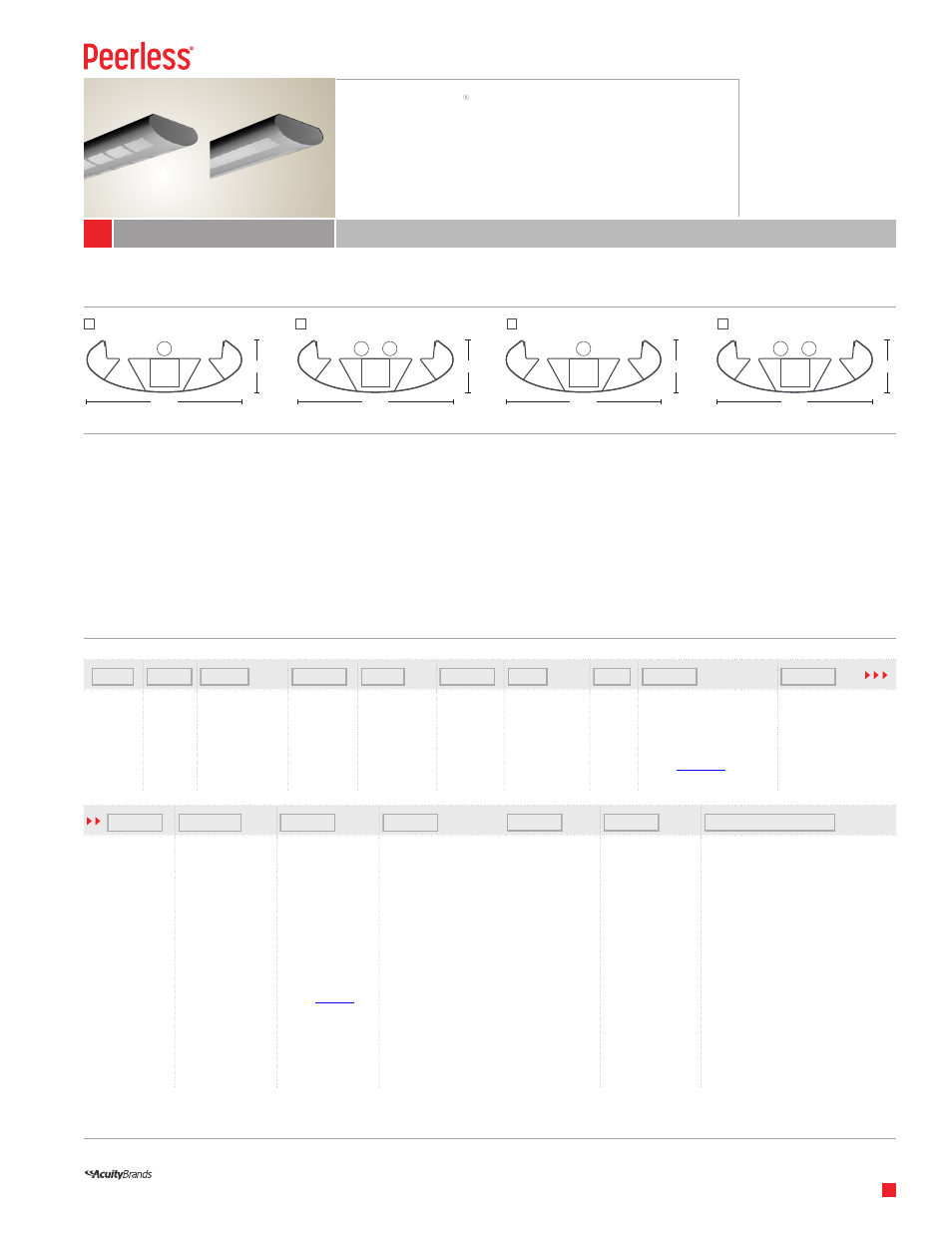

Peerless Lighting EZM2 - T5_T5HO User Manual
Enzo indirect, Partial perforation indirect t5/t5ho, Suspended
LAMPING OPTIONS
SPECIFICATIONS
CATALOG NUMBER
S P E C I F I C A T I O N S
__________ __________ __________ __________ __________ __________ __________ __________ __________ __________ __________ __________ __________ __________ __________ _____________________
2246 5th Street, Berkeley, CA 94710
•
Tel: 510.845.2760
•
Fax: 510.845.2776
•
•
Type:
________________________
Project:
______________________
1
© 2012 Acuity Brands Lighting, Inc. All Rights Reserved. “Peerless” and “Enzo” are registered trademarks of Acuity Brands Lighting.
Products in this document may be covered by one or more U.S. Patents and Patents Pending. Specifications subject to change without notice.
1-year limited warranty. Complete warranty terms locat
Indirect T5/T5HO
EZM2 Enzo Indirect Partial Perforation
Examples:
EZM2 1 54T5HO WHR 40FT R12 277 GEB10 2SE EL SCT LP841 F1/24 C518 GLR — EZM2 2 54T5HO SPR CWIN 32FT R8 120 GEB10 DCT LP830 F1/12 C110
Suspended
EZM2
Enzo Indirect
Partial Perforation
Indirect T5/T5HO
Construction
6
1
⁄
2
” x 2
3
⁄
16
” one-piece cold-rolled steel housing
with flat end plate.
Reflectors
Die-formed highly reflective white or specular
reflector.
Shielding
Die-punched perforated hole pattern runs
lengthwise across housing body.
Finish
Fine-textured, white polyester powder
paint is standard. Consult factory for special
finish requirements.
Electrical
Specify 120V, 277V or 347V. Pre-wired with 16AWG
fixture wires. For special circuiting or wire gauge,
consult factory. Plug-in electrical connectors
included. UL and C-UL listed.
Luminaire Length
4’, 8’, and 12’ lengths in a single section for exact
suspension spacing of 4’, 8’, and 12’. For total
luminaire length add
1
/
16
” for each end cap. Using
internal joiners, 4’, 8’, and 12’ sections can be joined
to form longer-length luminaires.
EZM2 - 1 CWIN
EZM2 - 2 CWIN
EZM2 - 1
EZM2 - 2
6
1
⁄
2
”
6
1
⁄
2
”
2
3
⁄
16
”
2
3
⁄
16
”
6
1
⁄
2
”
6
1
⁄
2
”
2
3
⁄
16
”
2
3
⁄
16
”
__________
__________
__________
__________
__________
_________
__________
__________ __________
__________
Luminaire
EZM2
# of
Lamps in
Cross
Section
1
2
Lamp Type
28T5 28W T5
54T5HO 54W T5HO
Reflector
WHR White
reflector
SPR Specular
reflector
Shielding
(Blank) Partial
perforation
CWIN Continuous
perforation
Luminaire
Row
Length
X FT
(4’ increments)
Maximum
Section
Length
R4
4’ section(s)
R8
8’ section(s)
R12
12’ section(s)
Voltage
120
277
347
Ballast Type
GEB10
<10% THD Electronic
ADEZ
1,2
Advance Mark 10 dim
DMHL3D
1
Lutron Hi-Lume dim
OSDIM
1,2
Osram 0-10V dim
Referenc
ebsite
or consult factory for other options.
# of Emergency
Modules
(Blank) None
1SE
1 section
2SE
2 sections
XSE
X sections
______________
________________
________________
______________
______________
______________
_________________________________
Emergency Type
3
(Blank) None
EC Emergency
circuit
EL
1
Emergency
battery pack
EN
1
Emergency
battery pack
w/night light
circuit
Switching
SCT
Single circuit
DCT Dual circuit
Lamp Color
L/LP No lamp
LP830 3000k 80+ CRI
LP835 3500k 80+ CRI
LP841 4100k 80+ CRI
Available with T5 only:
LP830P 3000K 80+
CRI Premier
LP835P 3500K 80+
CRI Premier
LP841P 4100K 80+
CRI Premier
Referenc
website or consult factory
for other options.
Mounting Type /
F1/
T-bar ceiling (universal
mounting bracket)
F1A/ T-bar ceiling (UMB with
integrated J-box)
F2/
Hard ceiling (horizontal
J-box)
Overall Suspension
12 12”
15 15”
18 18”
21 21”
24 24”
XX XX”
Overall suspension is
measured from ceiling to
bottom of luminaire.
Finish
C110 Painted aluminum
(low gloss)
C518 White (fine-
textured low
gloss)
C099 Custom finish
Options
ACG
Adjustable cable grippers
BLK
Black cord, cord manager and canopy
CP
Chicago plenum (available with F1A only)
DL
Damp location label
DU
Dust cover
ELH
Emergency through wiring w/separate feed
ELS
Emergency through wiring w/single feed,
shared neutral
ELS2
Emergency through wiring w/single feed,
separate neutrals
GLR
Fusing (fast blow)
GMF
Fusing (slow blow)
MCS
Matching feed canopy at support
NEPP5D nLight enabled control module per row/
zone
NYC
New York City code
OJB
Offset junction box
SLP
Sloped ceiling (for 10-45°, must be
specified with F2, ACG and OJB options)
XXXX Integrated sensor; choose options and
obtain code on page 2
Notes:
1 Not available in 347V
2 Not available with 28T5 lamps
3 Optional. EC and EL not available concurrently. EL and EC not available with DCT
in 4’ sections. Separate feed required for each EL, EC or EN unless ELH specified
CWIN Continuous Window
