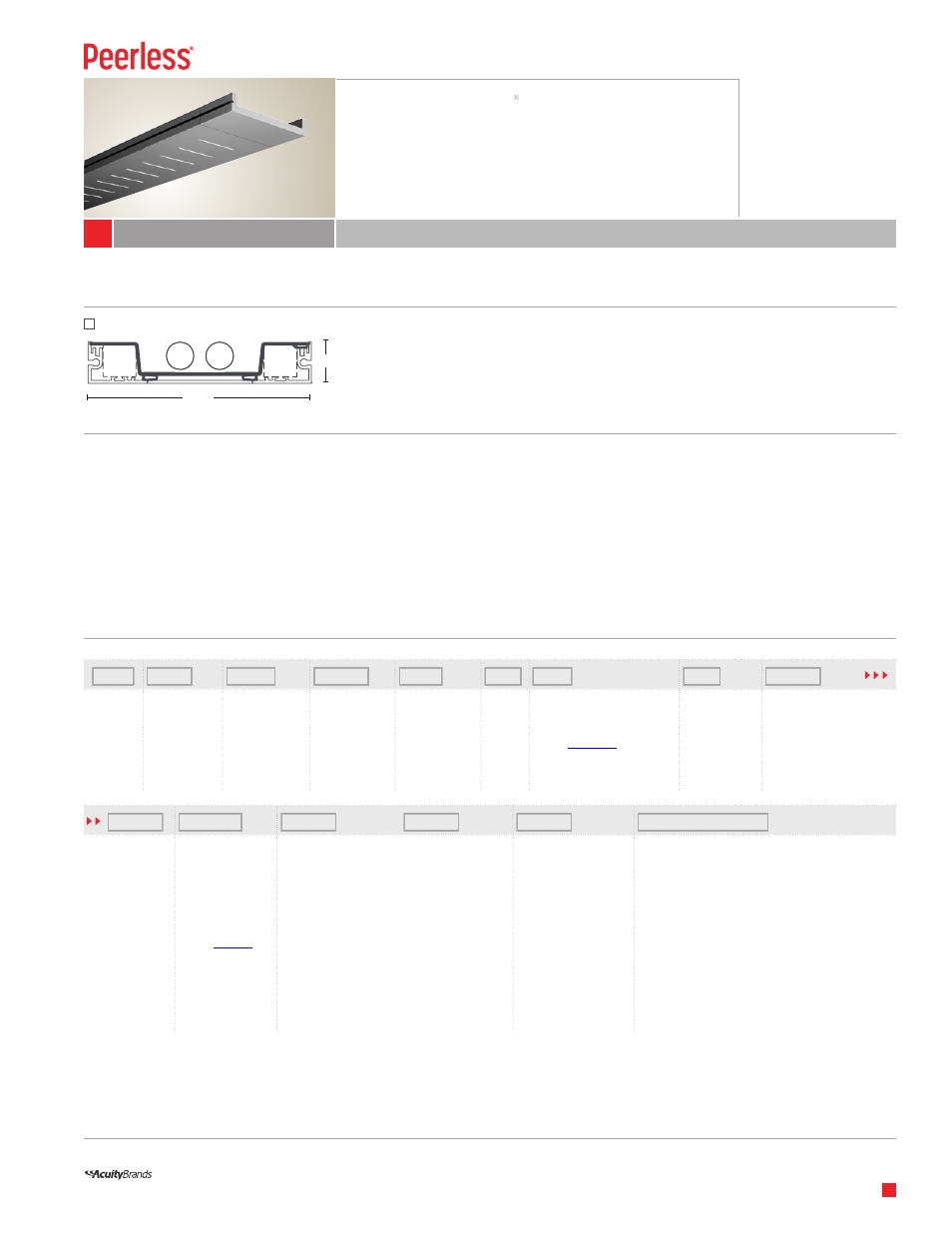

Peerless Lighting EGRM2 - T8 User Manual
Lightedge rectangular slots, Indirect t8, Suspended
LAMPING OPTIONS
SPECIFICATIONS
CATALOG NUMBER
S P E C I F I C A T I O N S
__________ __________ __________ __________ __________ __________ __________ __________ __________ __________ __________ __________ __________ __________ _____________________
2246 5th Street, Berkeley, CA 94710
•
Tel: 510.845.2760
•
Fax: 510.845.2776
•
•
Type:
________________________
Project:
______________________
1
© 2012 Acuity Brands Lighting, Inc. All Rights Reserved. “Peerless” and “Lightedge” are registered trademarks of Acuity Brands Lighting.
Products in this document may be covered by one or more U.S. Patents and Patents Pending. Specifications subject to change without notice.
1-year limited warranty. Complete warranty terms locat
Indirect T8
EGRM2 Lightedge Rectangular Slots
Examples:
EGRM1 2 32 12FT R8 277 GEB10 DCT L/LP F2/15 C100 ACG
Suspended
EGRM2
Lightedge Rectangular
Slots
Indirect T8
EGRM2 - 2
1
1
⁄
2
”
Construction
Housing and end caps are extruded aluminum
forming an 8
1
⁄
8
” x 1
1
⁄
2
” rectangular profile.
Reflectors
Die-formed center reflectors with baked-white
enamel finish (nominal reflectance 90%) and
specular aluminum side reflectors.
Shielding
Opal acrylic overlay above die-punched slot pattern
in aluminum housing.
Finish
Satin anodized standard. Custom colors available,
consult factory.
Electrical
Specify 120V, 277V or 347V. Pre-wired with 16AWG
fixture wires. For special circuiting or wire gauge,
consult factory. Plug-in electrical connectors
included. UL and C-UL listed.
Luminaire Length
4’ and 8’ lengths in a single section for exact
suspension spacing of 4’ and 8.’ For total luminaire
length add 4” for each end cap. Using internal
joiners, 4’ and 8’ sections can be joined to form
longer-length luminaires.
__________
__________
__________
_________
__________
__________ __________
__________
__________
Luminaire
EGRM2
# of Lamps in
Cross Section
2
Lamp Type
32
32W T8
Luminaire Row
Length
X FT
(4’ increments)
Maximum
Section Length
R4
4’ section(s)
R8
8’ section(s)
Voltage
120
277
347
Ballast Type
GEB10
<10% THD Electronic
DMHL3D
1
Lutron Hi-Lume dim
Referenc
ebsite
or consult factory for other options.
# of Emergency
Modules
(Blank) None
1SE
1 section
2SE
2 sections
XSE
X sections
Emergency Type
2
(Blank) None
EC
Emergency circuit
EL
1
Emergency battery pack
EN
1
Emergency battery pack
w/night light circuit
______________
________________
______________
______________
______________
_________________________________
Switching
SCT
Single circuit
DCT Dual circuit
Lamp Color
L/LP No lamp
L/LPE No lamp. Wired
for energy saving
lamps.
LP830 3000K 80+ CRI
LP835 3500K 80+ CRI
LP841 4100K 80+ CRI
Referenc
website or consult factory
for other options.
Mounting Type /
F1/
T-bar ceiling (universal
mounting bracket)
F1A/ T-bar ceiling (UMB with
integrated J-box)
F2/
Hard ceiling (horizontal
J-box)
Overall Suspension
12 12”
15 15”
18 18”
21 21”
24 24”
XX XX”
Overall suspension is measured
from ceiling to bottom of
luminaire.
Finish
C041 White white (low gloss)
C100 Satin anodized finish
C099 Custom finish
Options
ACG
Adjustable cable grippers
BLK
Black cord, cord manager and canopy
CP
Chicago plenum (available with F1A only)
DL
Damp location label
DU
Dust cover
ELH
Emergency through wiring w/separate feed
ELS
Emergency through wiring w/single feed, shared neutral
ELS2
Emergency through wiring w/single feed, separate neutrals
GLR
Fusing (fast blow)
GMF
Fusing (slow blow)
MCS
Matching feed canopy at support
NEPP5D nLight enabled control module per row/zone
OJB
Offset junction box
SLP
Sloped ceiling (for 10-45°, must be specified with F2, ACG
and OJB options)
XXXX Integrated sensor; choose options and obtain code on page 2
Notes:
1 Not available in 347V
2 Emergency type is installed in last 4’ of luminaire sections.
Separate feed required unless ELS or ELS2 is specified
8
1
⁄
8
”
