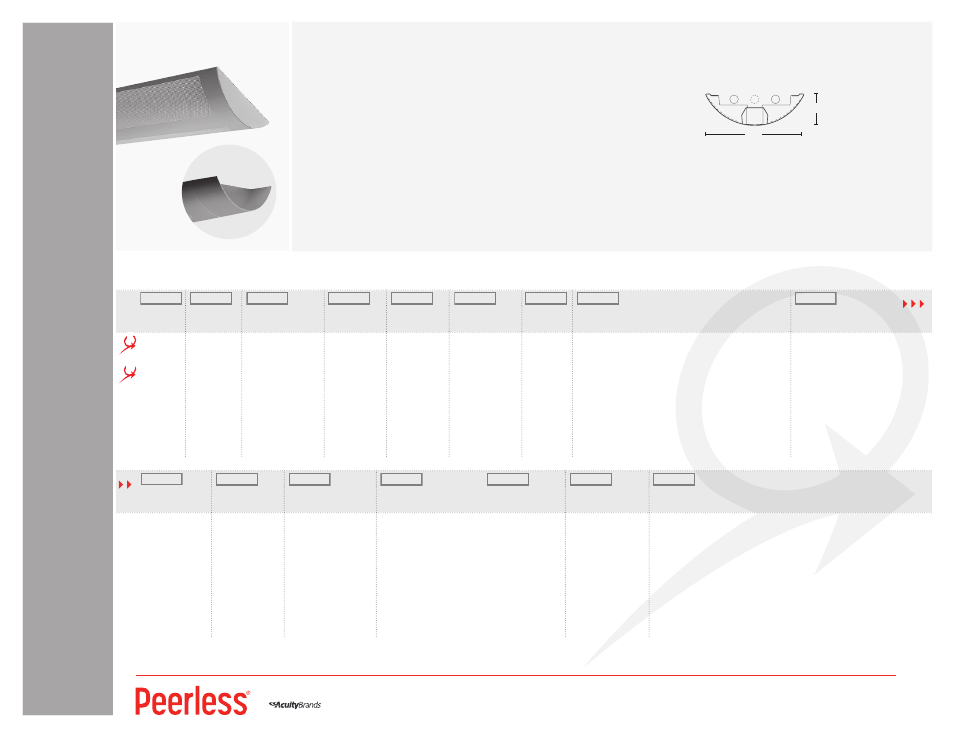

Peerless Lighting 7CRM7 - QS User Manual
Cerr a, Partial perf ora tion, 7crm7qs
SCEP option
2
5
⁄
16
”
7
1
⁄
8
”
DAY
5
DAY
10
5 10
DAY
5
DAY
10
5 10
Catalog Number
Cerr
a
®
7
PARTIAL PERF
ORA
TION
Notes:
1
Emergency type is installed in last 4’ of luminaire sections. Separate feed required unless ELS or ELS2 is specified
2
Not available with dimming
3
Maximum of 240”
4
Not available with 3 lamps or T5HO lamps
Sample Catalog Number: 7CRM7QS 2 54T5HO WHR 24FT R12 120 GEB10 SCT LP835 F1/18 C210
Specifications
CONSTRUCTION — Nominal 7” x 2” crescent housing is formed from one-piece cold-rolled steel.
Flat end plate standard. Sculptured die-cast aluminum end cap is optional.
SHIELDING — Die-punched perforations on lower housing with acrylic opal diffuser overlay.
REFLECTORS — Die-formed highly reflective white or specular reflector.
FINISH — Fine textured white polyester powder paint.
LUMINAIRE LENGTH — 4’, 8’, and 12’ lengths in a single section for exact suspension spacing of
4’, 8’, and 12’. For total luminaire length, add
1
⁄
16
” for each flat end plate or 3” for each sculptured end
cap. Using internal joiners, 4’, 8’, and 12’ sections can be joined to form longer length luminaires.
DISTRIBUTION — 3–4% downlight. See non-QuickShip spec sheet for photometrics.
7CRM7QS
Dimensions / Lamping
(1,2,3) T5, T5HO
___________
___________
___________
___________
___________
___________
___________
Emergency Type
1
Switching
Lamp Color
Mounting Type /
Overall Suspension
3
Finish
Options
(Blank) None
EC
2
Emergency
circuit
EL
Emergency
battery pack
EN
2
Emergency
battery pack
w/night light
circuit
SCT Single circuit
DCT
2
Dual circuit
L/LP No lamps
LP830 3000K 80+ CRI
LP835 3500K 80+ CRI
LP841 4100K 80+ CRI
F1/ T-bar ceiling (universal
mounting bracket)
F1A/ T-bar ceiling (UMB with
integrated J-box)
F2/ Hard ceiling (horizontal
J-box)
12
12”
15
15”
18
18”
21
21”
24 24”
XX XX”
Overall suspension is
measured from ceiling to
bottom of luminaire
C210 White white
(fine-textured
low gloss)
ACG Adjustable cable grippers
CP
Chicago plenum (available with F1A only)
DU
4
Dust cover
ELH
Emergency through wiring w/separate feed
ELS
2
Emergency through wiring w/single feed, shared neutral
ELS2
2
Emergency through wiring w/single feed, separate neutrals
GLR
Fusing (fast blow)
GMF Fusing (slow blow)
MCS Matching feed canopy at support
OJB
Offset junction box
SCEP Sculptured end cap
___________ ___________
___________
___________
___________
___________
___________
___________
Luminaire
# of Lamps in
Cross Section
Lamp Type
Reflector
Luminaire Row
Length
Maximum
Section Length
Voltage
Ballast Type
# of Emergency
Modules
7CRM7QS
7CRM7QST
1
2
3
28T5 28W T5
54T5HO 54W T5HO
WHR White
reflector
SPR
Specular
reflector
X FT
(4’ increments)
R4 4’ section(s)
R8 8’ section(s)
R12 12’ section(s)
120
277
GEB10
<10% THD Electronic (32 T8, 28T5, 54T5HO)
GEB10/347V 347V Generic non-dim.
Only
available with 10-day QuickShip
ADEZ
Advance Mark 10 dim (54T5HO)
OSDIM
Osram 0-10V dim (54T5HO)
ADZT
Advance Mark 7 0-10V dim (54T5HO).
Only available with 10-day QuickShip
(Blank) None
1SE 1 section
2SE 2 sections
XSE X sections
