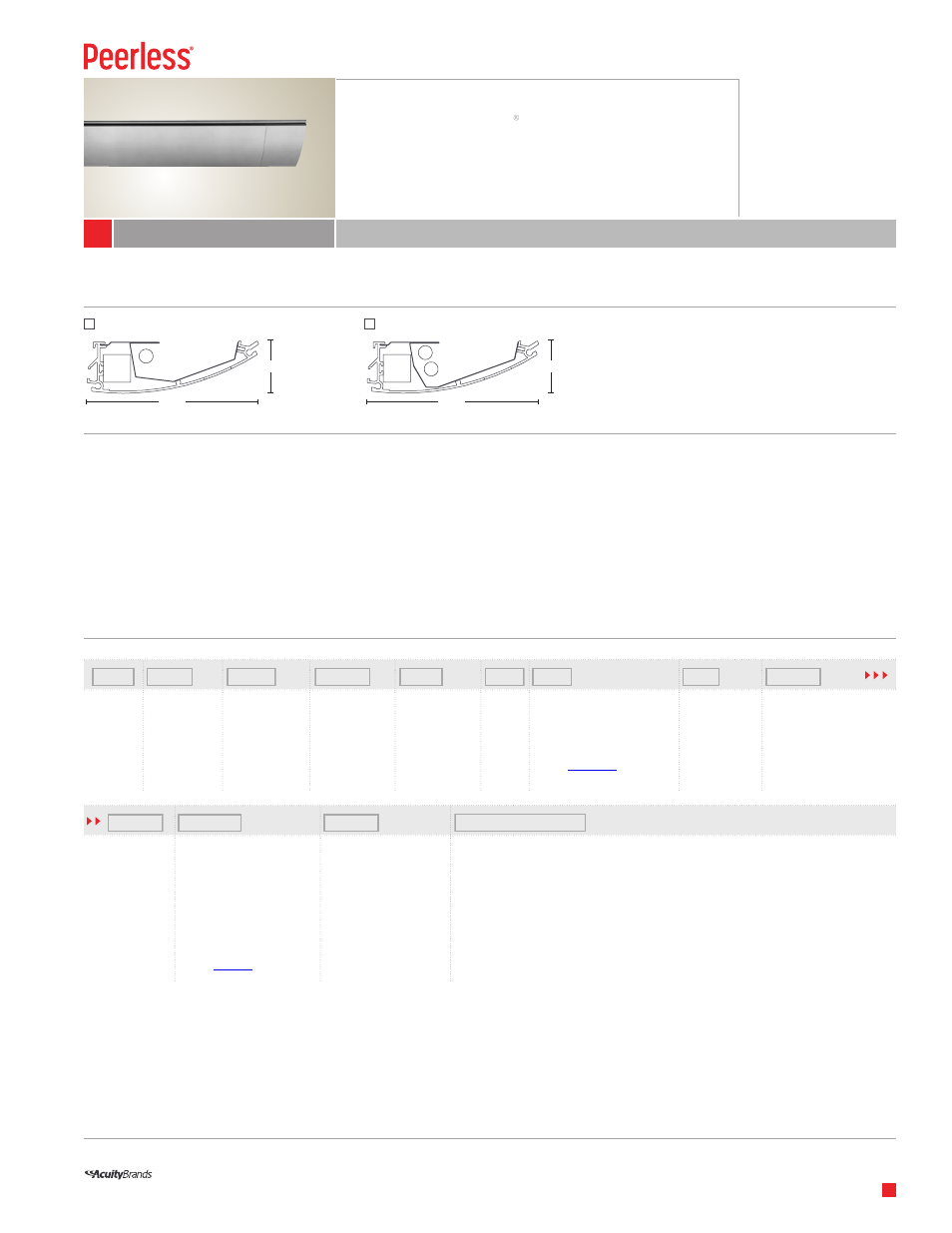

Indirect T5/T5HO
EGCW1 Lightedge Curved Wall
Lightedge Curved Wall
Indirect T5/T5HO
Wall Mount
EGCW1
Examples:
EGCW1 1 54T5HO 40FT R12 120 GEB10 2SE EL SCT LP835 C100 — EGCW1 2 54T5HO 12FT R12 277 GEB10 DCT L/LP C100
EGCW1 - 1
7
1
⁄
2
”
2
1
⁄
4
”
EGCW1 - 2
7
1
⁄
2
”
2
1
⁄
4
”
Construction
Housing and end caps are extruded aluminum
forming a 7
1
⁄
2
” x 2
1
⁄
4
” curvilinear profile.
Reflectors
Die-formed reflectors combine hammertone
specular aluminum and baked white enamel
(nominal reflectance 90%). Prismatic acrylic kicker
lens on 1 lamp product.
Finish
Satin anodized standard. Custom colors available,
consult factory.
Electrical
Specify 120V, 277V or 347V. Pre-wired with 16AWG
fixture wires. For special circuiting or wire gauge,
consult factory. Plug-in electrical connectors
included. UL and C-UL listed.
Luminaire Length
4’, 8’ and 12’ lengths in a single section. For total
luminaire length add 4” for each end cap. Using
internal joiners, 4’, 8’ and 12’ sections can be joined
to form longer-length luminaires.
__________
__________
__________
_________
__________
__________ __________
__________
__________
Luminaire
EGCW1
# of Lamps in
Cross Section
1
2
Lamp Type
28T5 28W T5
54T5HO 54W T5HO
Luminaire Row
Length
X FT
(4’ increments)
Maximum
Section Length
R4
4’ section(s)
R8
8’ section(s)
R12
12’ section(s)
Voltage
120
277
347
Ballast Type
GEB10
<10% THD Electronic
ADEZ
1,2
Advance Mark 10 dim
DMHL3D
1
Lutron Hi-Lume dim
OSDIM
1,2
Osram 0-10V dim
Referenc
ebsite
or consult factory for other options.
# of Emergency
Modules
(Blank) None
1SE
1 section
2SE
2 sections
XSE
X sections
Emergency Type
3
(Blank) None
EC
Emergency circuit
EL
1
Emergency battery pack
EN
1
Emergency battery pack
w/night light circuit
______________
________________
______________
_________________________________
Switching
SCT
Single circuit
DCT Dual circuit
Lamp Color
L/LP No lamp
LP830 3000k 80+ CRI
LP835 3500k 80+ CRI
LP841 4100k 80+ CRI
Available with T5 only:
LP830P 3000K 80+ CRI Premier
LP835P 3500K 80+ CRI Premier
LP841P 4100K 80+ CRI Premier
Referenc
ebsite or
consult factory for other options.
Finish
C041 White white (low gloss)
C100 Satin anodized finish
C099 Custom finish
Options
DL
Damp location label
DU
Dust cover
ELH
Emergency through wiring w/separate feed
ELS
Emergency through wiring w/single feed, shared neutral
ELS2 Emergency through wiring w/single feed, separate neutrals
EXT 3” extended mount (consult factory)
GLR Fusing (fast blow)
GMF Fusing (slow blow)
Notes:
1 Not available in 347V
2 Not available with 28T5 lamps
3 Emergency type is installed in last 4’ of luminaire sections.
Separate feed required unless ELS or ELS2 is specified
