Peerless Lighting SPM4 - T5_T5HO User Manual
Staple baffle i/d, Indirect-direct t5/t5ho, Suspended

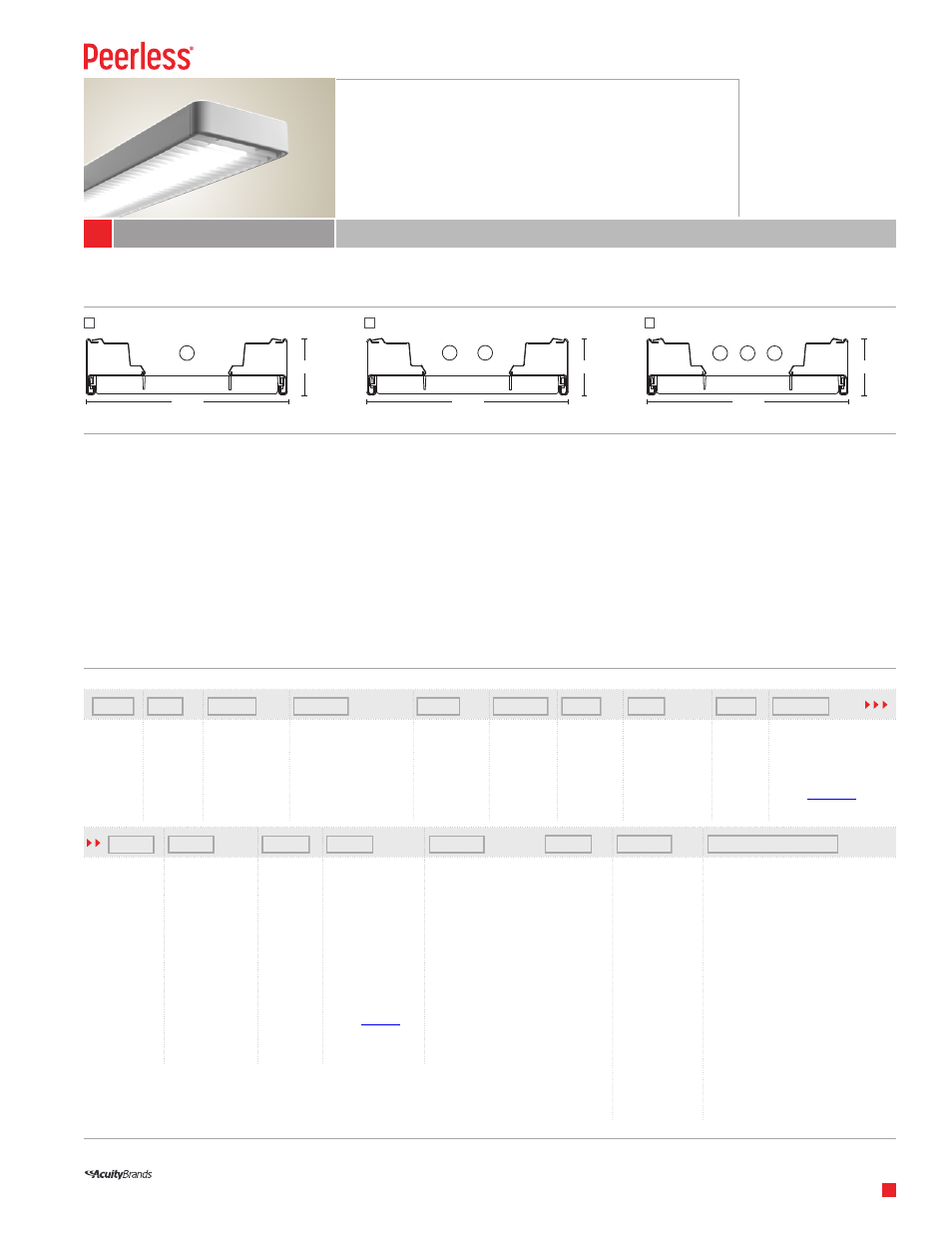

LAMPING OPTIONS
SPECIFICATIONS
CATALOG NUMBER
S P E C I F I C A T I O N S
2246 5th Street, Berkeley, CA 94710
•
Tel: 510.845.2760
•
Fax: 510.845.2776
•
•
________ ________ ________ ________ ________ ________ ________ ________ ________ ________ ________ ________ ________ ________ ________ ________ ________ _____________________
1
© 2012 Acuity Brands Lighting, Inc. All Rights Reserved. “Peerless” is a registered trademark of Acuity Brands Lighting.
Products in this document may be covered by one or more U.S. Patents and Patents Pending. Specifications subject to change without notice.
1-year limited warranty. Complete warranty terms locat
Indirect-Direct T5/T5HO
SPM4 Staple Baffle I/D
Type:
________________________
Project:
______________________
Suspended
SPM4
Staple Baffle I/D
Indirect-Direct T5/T5HO
Examples:
SPM4 2 54T5HO WHR OPD 40FT R12 277 GEB10 DCT LP835 F1/24 C032 — SPM4 1 54T5HO WHR 32FT R8 120 GEB10 1SE EL SCT LP835 F1/24 C032
SPM4 - 1
SPM4 - 2
SPM4 - 3
8
1
⁄
2
”
8
1
⁄
2
”
8
1
⁄
2
”
2
3
⁄
8
”
2
3
⁄
8
”
2
3
⁄
8
”
__________
__________
__________
__________
__________
__________
_________
__________
__________
__________
Luminaire
SPM4
# of Lamps
in Cross
Section
1
2
3
Lamp Type
28T5 28W T5
54T5HO 54W T5HO
Distribution
(Blank) 65% up, 35% down
standard
40/60
1
40% up, 60% down
20/80
1
20% up, 80% down
0/100
1
100% down
CLI
2
Center lamp isolator
Reflector
WHR White
Reflector
Shielding
(Blank) None
OPD Opal
diffuser
Luminaire
Row
Length
X FT
(4’ increments)
Maximum
Section
Length
R4
4’ section(s)
R8
8’ section(s)
R12
12’ section(s)
Voltage
120
277
347
3
Ballast Type
GEB10
<10% THD Electronic
ADEZ
3,4
Advance Mark 10 dim
DMHL3D
4
Lutron Hi-Lume dim
OSDIM
3,4
Osram 0-10V dim
Referenc
ebsite
or consult factory for other options.
______________ ________________
___________
________________
______________
______________
______________
_________________________________
# of
Emergency
Modules
(Blank) None
1SE
1 section
2SE
2 sections
XSE
X sections
Emergency Type
5
(Blank) None
EC Emergency
circuit
EL
4
Emergency
battery pack
EN
4
Emergency
battery pack
w/night light
circuit
Switching
SCT Single
circuit
DCT Dual
circuit
Lamp Color
L/LP No lamp
LP830 3000k 80+ CRI
LP835 3500k 80+ CRI
LP841 4100k 80+ CRI
Available with T5 only:
LP830P 3000K 80+
CRI Premier
LP835P 3500K 80+
CRI Premier
LP841P 4100K 80+
CRI Premier
Referenc
website or consult factory
for other options.
Mounting Type /
F1/
T-bar ceiling
(universal mounting
bracket)
F1A/ T-bar ceiling (UMB
with integrated J-box)
F2/
Hard ceiling
(horizontal J-box)
Overall
Suspension
6
24
24”
48
48”
72
72”
96
96”
XX
XX”
Overall suspension
is measured from
ceiling to bottom
of luminaire.
Finish
C032 White white
(high gloss)
C099 Custom finish
Options
CP
Chicago plenum (available with F1A only)
DL
Damp location label
DU
Dust cover (not available with 3 T5HO)
ELH
Emergency through wiring w/separate feed
ELS
Emergency through wiring w/single feed,
shared neutral
ELS2
Emergency through wiring w/single feed,
separate neutrals
GLR
Fusing (fast blow)
GMF
Fusing (slow blow)
IND
Individual luminaire (factory installed end
caps and power cord, hanging hardware in
box)
MCS
Matching feed canopy at support
NEPP5D nLight enabled control module
per row/zone
NYC
New York City code
OJB
Offset junction box
SLP
Sloped ceiling (for 10-45°, must be
specified with F2 and OJB options)
XXXX Integrated sensor; choose options and
obtain code on page 2
Construction
Nominal 8
1
⁄
2
” x 2
3
⁄
8
” rectangular housing is
formed from cold-rolled steel. Die-cast aluminum
end caps are mechanically attached with no
exposed fasteners.
Reflectors/ Shielding
Formed, pre-finished white reflector standard.
Injection molded acrylic baffle shielding (opal
diffuser optional).
Finish
White gloss powder paint comes standard. Custom
colors available, consult factory.
Electrical
Specify 120V, 277V or 347V. Pre-wired with 16AWG
fixture wires. For special circuiting or wire gauge,
consult factory. Plug-in electrical connectors
included. UL and C-UL listed.
Luminaire Length
4’, 8’ and 12’ lengths in a single section for nominal
suspension spacing of 4’, 8’ and 12’. For total
luminaire length, add 1
1
⁄
8
” for each end cap. Using
internal joiners, 4’, 8’ and 12’ sections can be joined
to form longer length luminaires.
Installation Features
Y-hangers with adjustable cables come standard
to simplify luminaire leveling across the width
and length. Individual 4’, 8’ and 12’ luminaires
can be ordered with end caps and power cords
pre-installed and hanging hardware included in the
luminaire packaging to reduce overall installation
time (option IND).
Packaging
Recycled cardboard box, folded cardboard cradles
and kraft tape. Biodegradable protective luminaire
bag.
Notes:
1 Nominal distribution, refer to photometric test for exact distribution
2 Available with 3-lamp cross section only
3 Not available with 28T5 lamps
4 Not available in 347V
5 EL and EC are installed in last 4’ of luminaire sections. Separate feed
required unless ELS or ELS2 is specified
6 Adjustable cable gripper comes standard
