Cerra 7, Lightvent indirect t5/t5ho, Suspended – Peerless Lighting 7CRM3 - T5_T5HO User Manual

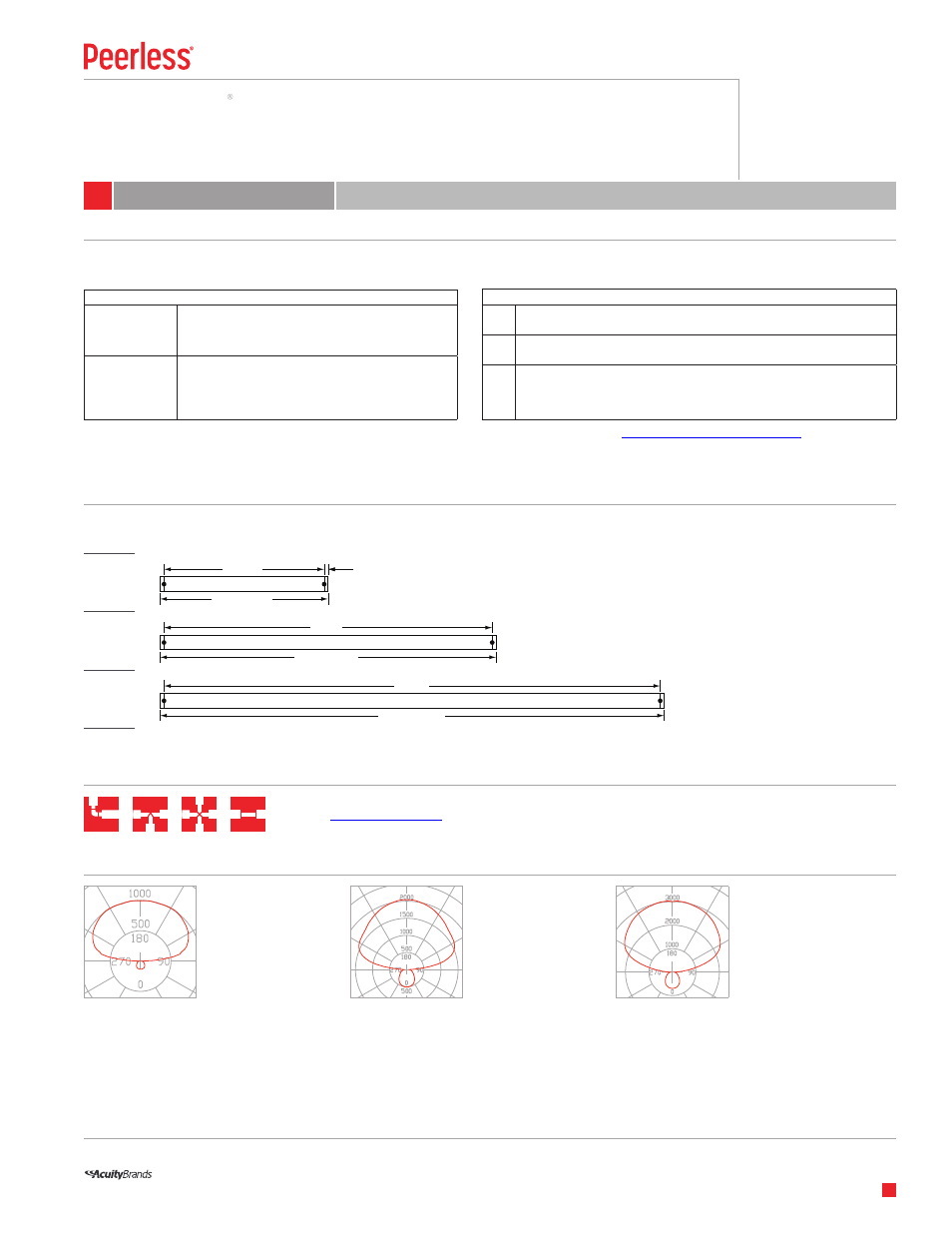

Page 2: 7crm3
PHOTOMETRICS
WEIGHTS & SUPPORT SPACING
CONFIGURATIONS
2246 5th Street, Berkeley, CA 94710
•
Tel: 510.845.2760
•
Fax: 510.845.2776
•
•
INTEGRATED NLIGHT MICRO SENSOR
STANDARD SECTIONS
Key:
•
Support or feed location
4’-0”
1
⁄
16
” standard flat end plates;
3” optional sculptured end plates
4’-0
1
⁄
8
” O.A.
8’-0”
8’-0
1
⁄
8
” O.A.
12’-0”
12’-0
1
⁄
8
” O.A.
PLAN VIEW
Type:
________________________
Project:
______________________
Cast tenon corners, “T” and “X” connectors and tenons available for suspended configurations.
Reference
or additional details.
19 LBS
32 LBS
45 LBS
Actual performance may differ as a result of end-user environment and application.
2
© 2012 Acuity Brands Lighting, Inc. All Rights Reserved. “Peerless” and “Cerra” are registered trademarks of Acuity Brands Lighting.
Products in this document may be covered by one or more U.S. Patents and Patents Pending. Specifications subject to change without notice.
1-year limited warranty. Complete warranty terms locat
Indirect T5/T5HO
7CRM3 Cerra 7 Lightvent
Network Type & Sensor Power Source (choose one)
1*
nLight-Enabled (Network-Ready) with Luminaire-Integrated Power Pack
10’ Cat-5e cable and splitter provided
2
Standalone Operation (No Networking) with Luminaire Integrated Power Pack
No Cat-5e cable provided
3*
nLight-Enabled (Network-Ready) with Remote nLight Power Pack or nPanel
10’ Cat-5e cable and splitter provided
Order required remote nLight Power Pack or nPanel
separately through nLight (Acuity Brands Controls)
Determine the appropriate sensor type, network type and sensor power source for your application. Enter the code in the Options section of the Catalog Number.
EXAMPLE:
PDT1
Sensor Type (choose one)
ADC
nLight model
nES ADCX
Daylight Dimming
Specify 0-10V dimming ballast
No occupancy sensing
PDT
nLight model
nES PDT7 ADCX
Daylight Dimming and/or Occupancy Detection
Specify 0-10v dimming ballast for daylight dimming
Specify fixed-output ballast for occupancy detection only
(daylight dimming disabled)
For more information about the Integrated nLight Micro Sensor, its capabilities and options, do
*nLight-Enabled (network-ready) options include one RJ-45 connector on the luminaire and 10’ of Cat-5e cable and a splitter to control the entire luminaire row (depending on
wattage/voltage limitations). The Cat-5e cable drop is located in the same section as the sensor. For multiple zones, please contact [email protected].
Suspension spacing equals section length. Default location shown. Consult factory for stem mounting suspension spacing and alternate locations.
1-LAMP T5HO
91.0% efficiency
4548 delivered lumens
91.4% up / 8.6% down
2-LAMP T5HO
88.9% efficiency
8895 delivered lumens
84.5% up / 15.5% down
3-LAMP T5HO
85.3% efficiency
12797 delivered lumens
85.8% up / 14.2% down
Cerra 7
Lightvent
Indirect T5/T5HO
Suspended
7CRM3
