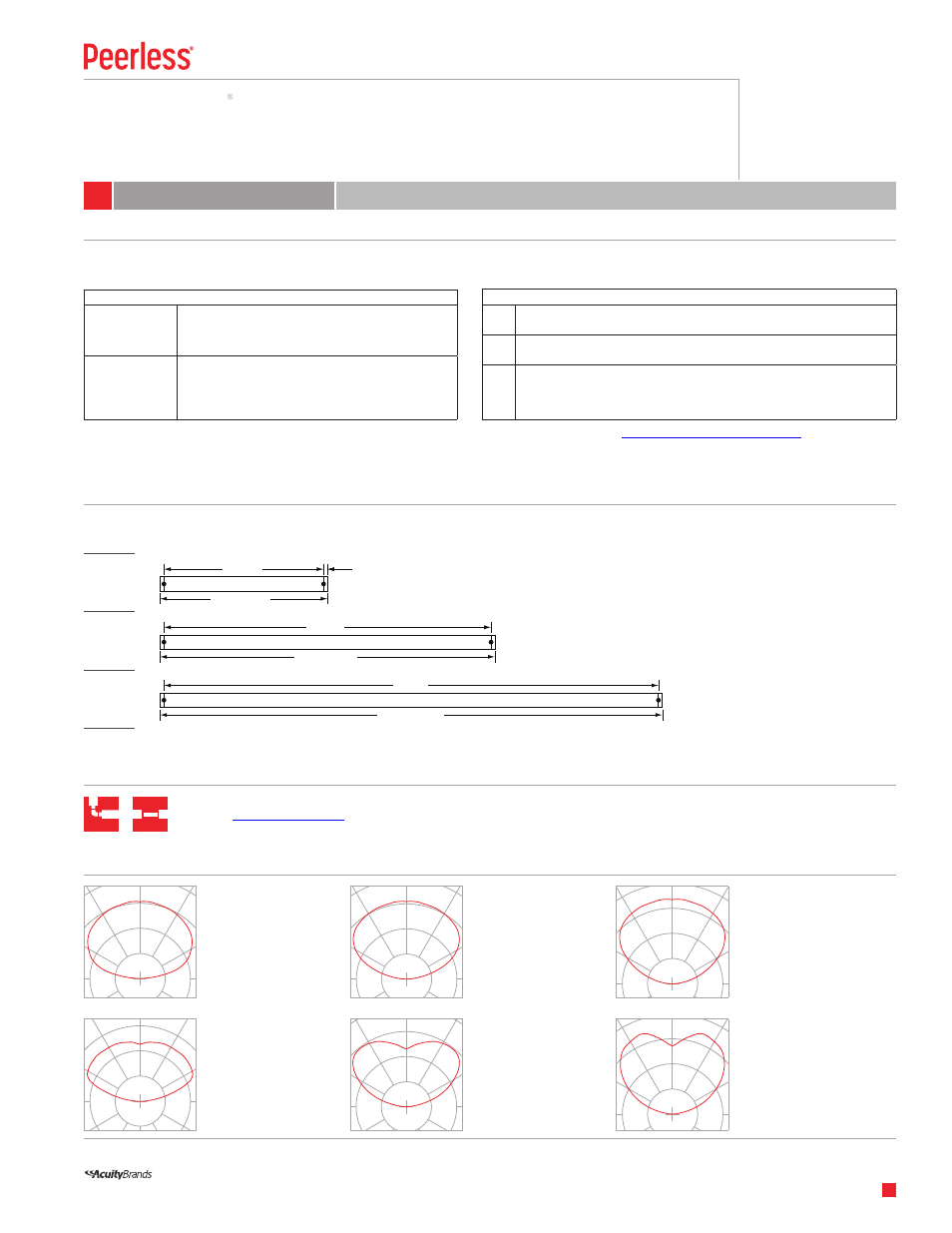

Peerless Lighting 10CRM1 - T8 - Manual (Page 2)

WEIGHTS & SUPPORT SPACING
CONFIGURATIONS
PHOTOMETRICS
2246 5th Street, Berkeley, CA 94710 • Tel: 510.845.2760 • Fax: 510.845.2776 • Email: [email protected] • PeerlessLighting.com
INTEGRATED NLIGHT MICRO SENSOR
STANDARD SECTIONS
4’-0 3 ⁄
8
” 1 ⁄
16
” standard flat end plates
4” optional sculptured end plates
4’-0 1 ⁄
2
” O.A.
8’-0 1 ⁄
8
”
8’-0 1 ⁄
4
” O.A.
12’-0”
12’-0 1 ⁄
8
” O.A.
Key:
• Support or feed location
PLAN VIEW
90 270
500
1000
1500
2000
90 270
500
1000
1500
2000
90 270
500
1000
1500
2000
90 270
500
1000
1500
2000
90 270
500
1000
1500
2000
90 270
500
1000
1500
2000
Type: ________________________
Project: ______________________
28 LBS
48 LBS
68 LBS
Cast corner and tenon connectors available for suspended configurations.
Reference Pattern Connector Guide for additional details.
Actual performance may differ as a result of end-user environment and application.
2
© 2012 Acuity Brands Lighting, Inc. All Rights Reserved. “Peerless” and “Cerra” are registered trademarks of Acuity Brands Lighting.
Products in this document may be covered by one or more U.S. Patents and Patents Pending. Specifications subject to change without notice.
1-year limited warranty. Complete warranty terms located at www.acuitybrands.com/customerresources/terms_and_conditions.aspx Indirect T8
Suspension spacing equals section length. Default location shown. Consult factory for stem mounting suspension spacing and alternate locations.
Network Type & Sensor Power Source (choose one)
1* nLight-Enabled (Network-Ready) with Luminaire-Integrated Power Pack
10’ Cat-5e cable and splitter provided
2 Standalone Operation (No Networking) with Luminaire Integrated Power Pack
No Cat-5e cable provided
3* nLight-Enabled (Network-Ready) with Remote nLight Power Pack or nPanel
10’ Cat-5e cable and splitter provided
Order required remote nLight Power Pack or nPanel
separately through nLight (Acuity Brands Controls)
Determine the appropriate sensor type, network type and sensor power source for your application. Enter the code in the Options section of the Catalog Number.
EXAMPLE: PDT1
Sensor Type (choose one)
ADC
nLight model
nES ADCX
Daylight Dimming
Specify 0-10V dimming ballast
No occupancy sensing
PDT
nLight model
nES PDT7 ADCX
Daylight Dimming and/or Occupancy Detection
Specify 0-10v dimming ballast for daylight dimming
Specify fixed-output ballast for occupancy detection only
(daylight dimming disabled)
For more information about the Integrated nLight Micro Sensor, its capabilities and options, download the PDF guide at: PeerlessLighting.com/nLight-Sensor-Guide
*nLight-Enabled (network-ready) options include one RJ-45 connector on the luminaire and 10’ of Cat-5e cable and a splitter to control the entire luminaire row (depending on
wattage/voltage limitations). The Cat-5e cable drop is located in the same section as the sensor. For multiple zones, please contact [email protected].
Cerra 10 Indirect
Indirect T8
Suspended 10CRM1
2-LAMP T8
77.7% efficiency
4426 delivered lumens
100.0% up / 0.0% down
3-LAMP T8
79.0% efficiency
6751 delivered lumens
100.0% up / 0.0% down
4-LAMP T8
76.8% efficiency
8750 delivered lumens
100.0% up / 0.0% down
2-LAMP T8 SPR
82.3% efficiency
4693 delivered lumens
100.0% up / 0.0% down
3-LAMP T8 SPR
81.3% efficiency
6949 delivered lumens
100.0% up / 0.0% down
4-LAMP T8 SPR
80.4% efficiency
9169 delivered lumens
100.0% up / 0.0% down
10CRM1 Cerra 10
