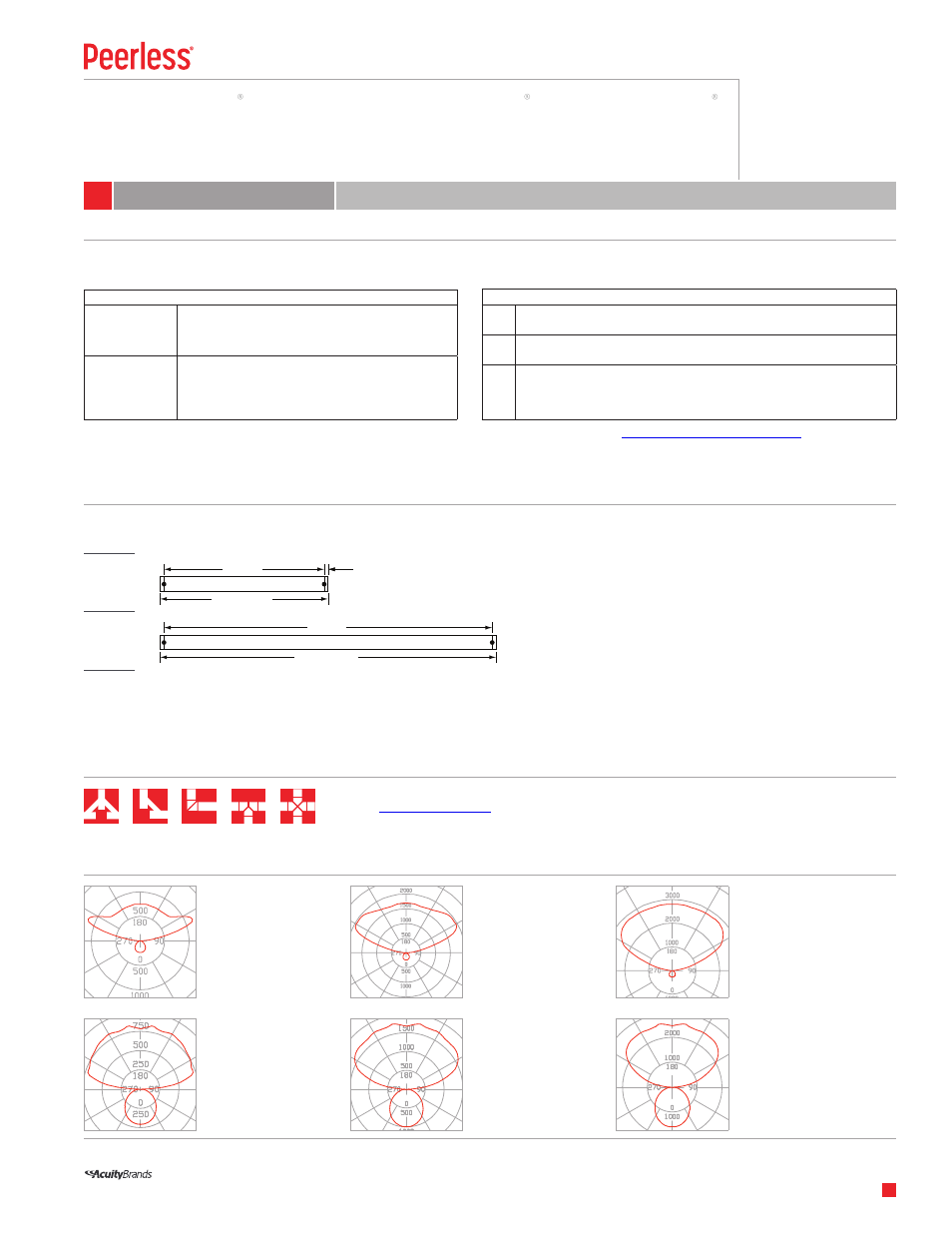

Indirect T5/T5HO

EGRM9  Lightedge Rectangular Softshine or GrateOptic

Sweep, mitered corner, “T” and “X” mitered connectors available for suspended configurations.

Reference

Pattern Connector Guide

for additional details.

Suspension spacing equals section length. Default location shown. Consult factory for stem mounting suspension spacing and alternate locations.

Network Type & Sensor Power Source (choose one)

1*

nLight-Enabled (Network-Ready) with Luminaire-Integrated Power Pack

10’ Cat-5e cable and splitter provided

2

Standalone Operation (No Networking) with Luminaire Integrated Power Pack

No Cat-5e cable provided

3*

nLight-Enabled (Network-Ready) with Remote nLight Power Pack or nPanel

10’ Cat-5e cable and splitter provided

Order required remote nLight Power Pack or nPanel

separately through nLight (Acuity Brands Controls)

Determine the appropriate sensor type, network type and sensor power source for your application. Enter the code in the Options section of the Catalog Number.

EXAMPLE:

PDT1

Sensor Type (choose one)

ADC

nLight model

nES ADCX

Daylight Dimming

Specify 0-10V dimming ballast

No occupancy sensing

PDT

nLight model

nES PDT7 ADCX

Daylight Dimming and/or Occupancy Detection

Specify 0-10v dimming ballast for daylight dimming

Specify fixed-output ballast for occupancy detection only

(daylight dimming disabled)

For more information about the Integrated nLight Micro Sensor, its capabilities and options, download the PDF guide at:

PeerlessLighting.com/nLight-Sensor-Guide

*nLight-Enabled (network-ready) options include one RJ-45 connector on the luminaire and 10’ of Cat-5e cable and a splitter to control the entire luminaire row (depending on

wattage/voltage limitations). The Cat-5e cable drop is located in the same section as the sensor. For multiple zones, please contact [email protected].

1-LAMP T5HO WITH GTO

81.9% efficiency

4094 delivered lumens

84.3% up / 15.7% down

2-LAMP T5HO WITH GTO

77% efficiency

7703 delivered lumens

91.6% up / 8.4% down

3-LAMP T5HO WITH GTO

73.9% efficiency

11090 delivered lumens

93.3% up / 6.7% down

1-LAMP T5HO WITH SSH

93.3% efficiency

4666 delivered lumens

73.9% up / 26.1% down

2-LAMP T5HO WITH SSH

95.4% efficiency

9538 delivered lumens

72.4% up / 27.6% down

3-LAMP T5HO WITH SSH

91.3% efficiency

13689 delivered lumens

69.5% up / 30.5% down

Lightedge Rectangular Softshine or GrateOptic

Indirect T5/T5HO

Suspended

EGRM9
