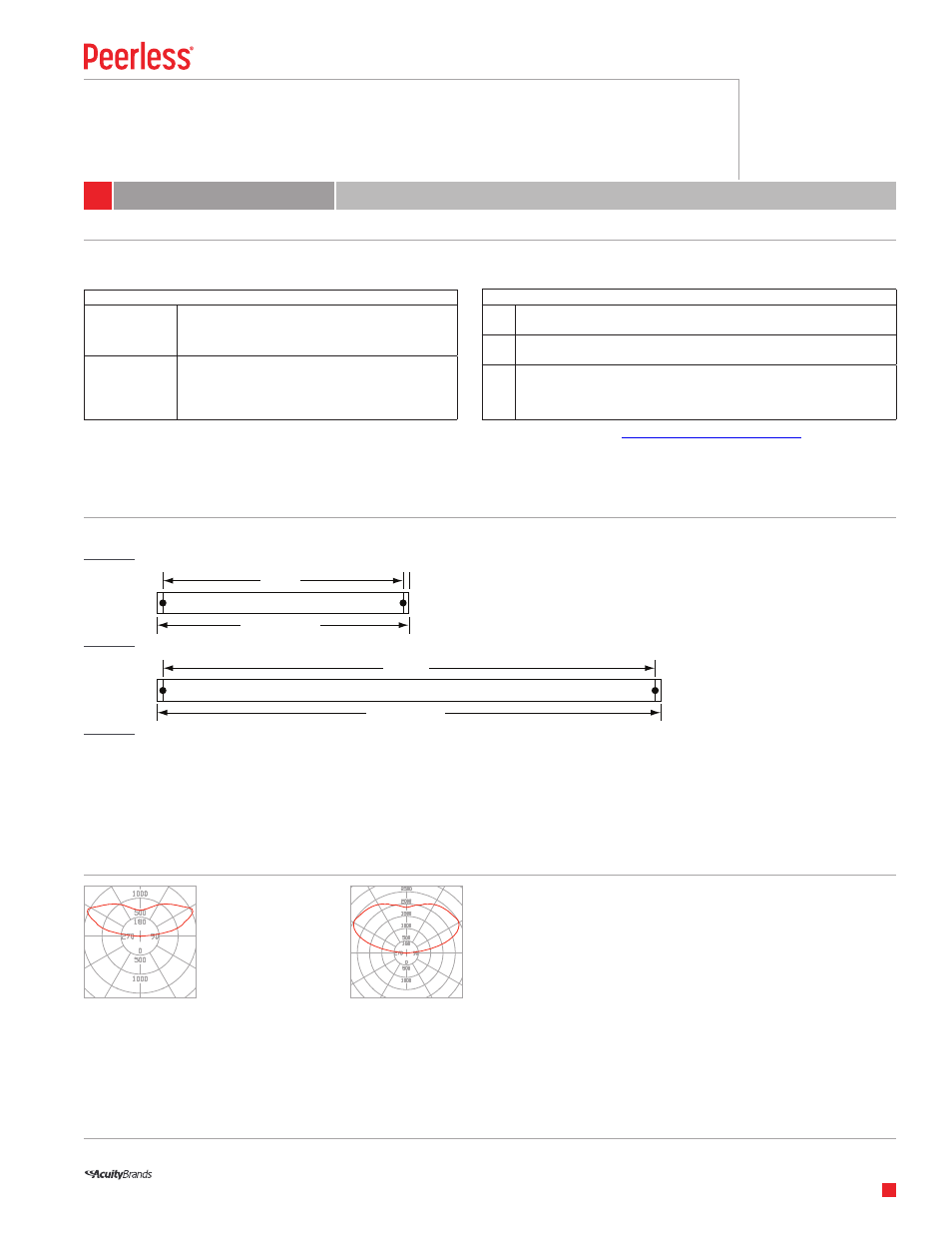

Peerless Lighting OR2M1 - T5_T5HO - Manual (Page 2)

PHOTOMETRICS
WEIGHTS & SUPPORT SPACING
INTEGRATED NLIGHT MICRO SENSOR
2246 5th Street, Berkeley, CA 94710 • Tel: 510.845.2760 • Fax: 510.845.2776 • Email: [email protected] • PeerlessLighting.com
STANDARD SECTIONS Key:
• Support or feed location
4’-0” 5 ⁄
8
” end cap
4’-1 1 ⁄
8
” O.A.
8’-0”
8’-1 1 ⁄
8
” O.A.
PLAN VIEW
CATALOG NUMBER: ORM--1-54
LUMINAIRE: 8 5/8”W X 3 3/4”H INIDRECT LIGHT W ITH SPECULAR REFLECTOR
CATALOG NUMBER: ORM--2--54
LUMINAIRE: 8 5/8”W X 3 3/4”H INIDRECT LIGHT W ITH SPECULAR REFLECTOR
Type: ________________________
Project: ______________________
Actual performance may differ as a result of end-user environment and application.
9 LBS
18 LBS
2
© 2012 Acuity Brands Lighting, Inc. All Rights Reserved. “Peerless” is a registered trademark of Acuity Brands Lighting.
Products in this document may be covered by one or more U.S. Patents and Patents Pending. Specifications subject to change without notice.
1-year limited warranty. Complete warranty terms located at www.acuitybrands.com/customerresources/terms_and_conditions.aspx Indirect T5/T5HO
OR1M1/OR2M1 Origami
Suspension spacing equals section length. Default location shown. Consult factory for stem mounting suspension spacing and alternate locations.
Network Type & Sensor Power Source (choose one)
1* nLight-Enabled (Network-Ready) with Luminaire-Integrated Power Pack
10’ Cat-5e cable and splitter provided
2 Standalone Operation (No Networking) with Luminaire Integrated Power Pack
No Cat-5e cable provided
3* nLight-Enabled (Network-Ready) with Remote nLight Power Pack or nPanel
10’ Cat-5e cable and splitter provided
Order required remote nLight Power Pack or nPanel
separately through nLight (Acuity Brands Controls)
Determine the appropriate sensor type, network type and sensor power source for your application. Enter the code in the Options section of the Catalog Number.
EXAMPLE: PDT1
Sensor Type (choose one)
ADC
nLight model
nES ADCX
Daylight Dimming
Specify 0-10V dimming ballast
No occupancy sensing
PDT
nLight model
nES PDT7 ADCX
Daylight Dimming and/or Occupancy Detection
Specify 0-10v dimming ballast for daylight dimming
Specify fixed-output ballast for occupancy detection only
(daylight dimming disabled)
For more information about the Integrated nLight Micro Sensor, its capabilities and options, download the PDF guide at: PeerlessLighting.com/nLight-Sensor-Guide
*nLight-Enabled (network-ready) options include one RJ-45 connector on the luminaire and 10’ of Cat-5e cable and a splitter to control the entire luminaire row (depending on
wattage/voltage limitations). The Cat-5e cable drop is located in the same section as the sensor. For multiple zones, please contact [email protected].
Suspended OR1M1/OR2M1
Origami
Indirect T5/T5HO
1-LAMP T5HO
91.3% efficiency
4571 delivered lumens
100.0% up / 0.0% down
2-LAMP T5HO
91.7% efficiency
9167 delivered lumens
100.0% up / 0.0% down
