This manual contains general information.
Operating features and specifications may
change without notice. CDI Torque makes no
claims regarding the suitability of the information
in this manual for diverse user applications.
Power Source
The power source for the DTT is the supplied AC Adapter.
The tester can also be operated with the use of the 6 AA
Battery Pack that accompanies the tester.
A — Display
A four digit TFT display for torque readings.
B — Mounting Plate
Plate for securing tester to mounting surface. Use
four 1/4” diameter bolts.
6
DTT Digital Torque Tester
Functional Description

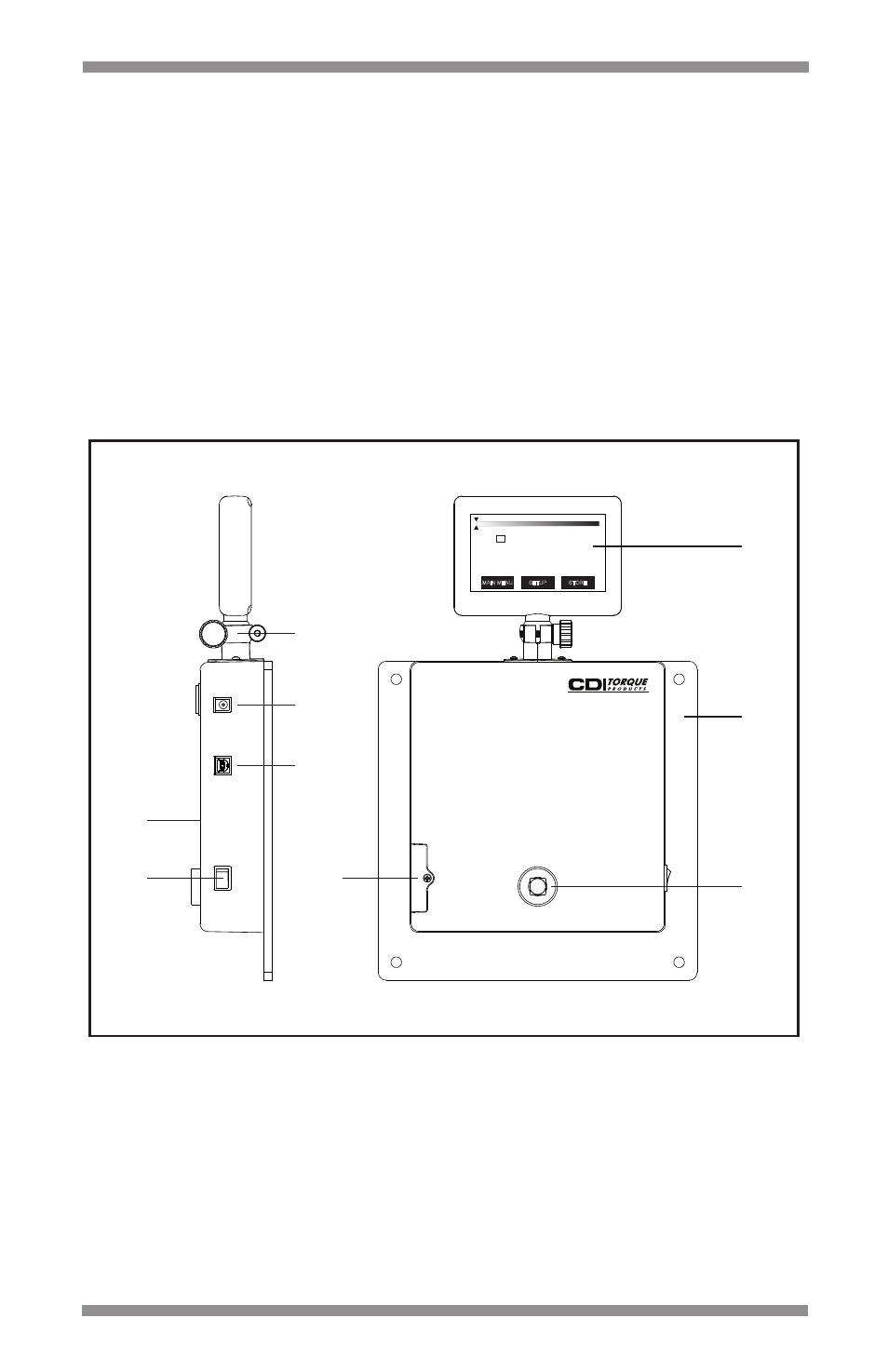

Figure 2: Digital Torque Tester (DTT), Front and Side Views
A
B
G
H
I
C
D E
F
2503-F-DTT
25 - 250 FT.LB.
0.0O TGT TORQUE: 250
FIRST PEAK
FT-LB
MAIN MENU SETUP STORE
DATA: 25
