Electronics FC User Manual
Page 16
16

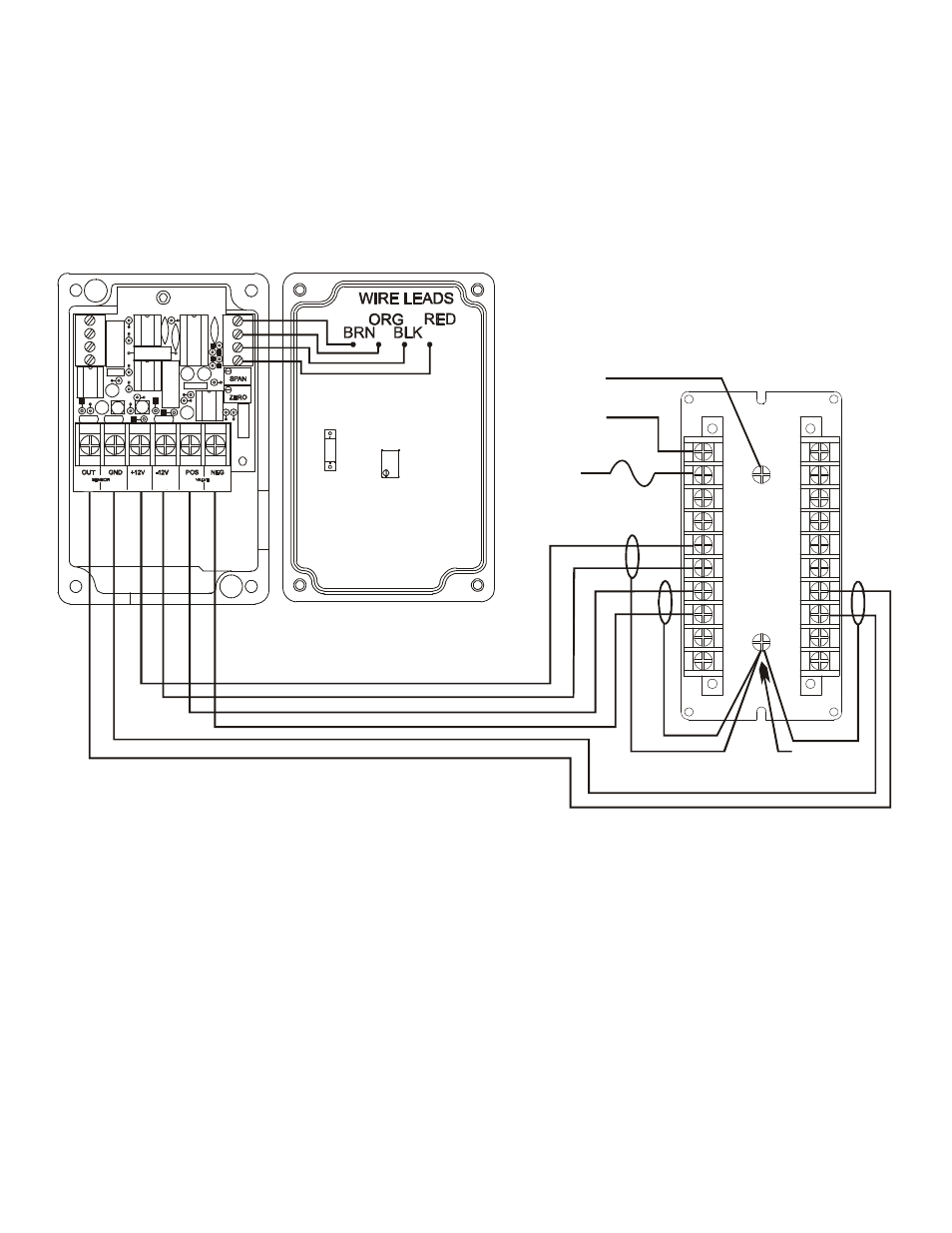

19. WIRING CONNECTIONS for 999234.B
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
FC CONTROLLER BACK VIEW
1 AMP
FUSE
EARTH
GROUND
(SHIELD)
GROUND
NEUTRAL
HOT
115VAC
CABLE TO MAGNAVALVE
BELDEN 9773 3 PAIR SHIELDED
18 AWG OR EQUAL
NOTE: THE CABLE SHIELDS ARE TO BE
TERMINATED AT THE
CONTROLLER ONLY.
JUNCTION BOX
VD11 Valve Driver
(Factory Wired)
1 2
3 4
5
6
WIRE CONNECTIONS FOR AN FC FLOW CONTROLLER TO THE FOLLOWING VALVES:
577, 578, 579, 580, 590, AND ALL 15XX SERIES VALVES
