Electronics FC User Manual

Page 15

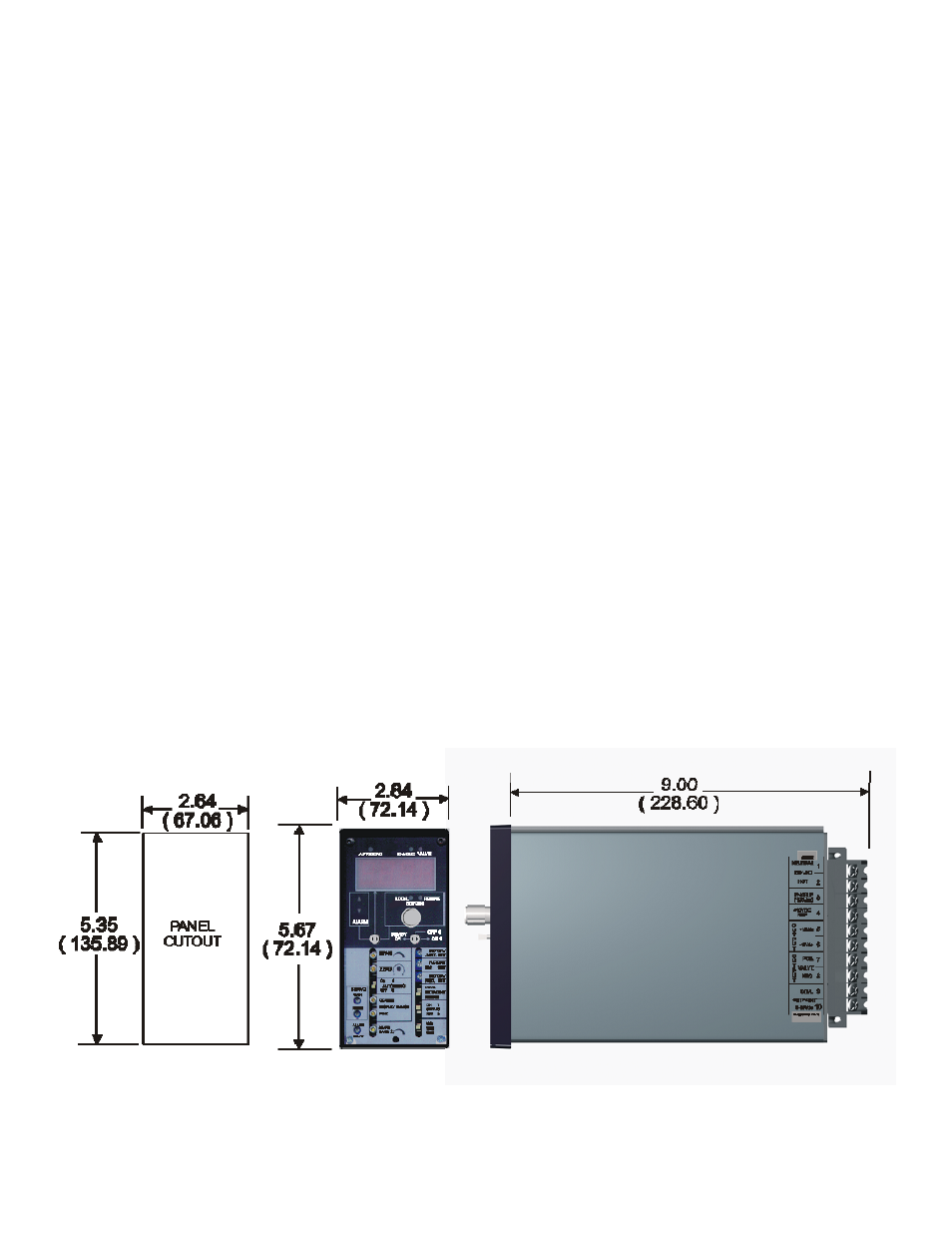

18. SPECIFICATIONS for P/N 999234.B

Power:

(90-120VAC @ 60Hz) (110-120VAC @ 50Hz), 25VA

Inputs: Voltage

Signal

Input (0-5 Vdc)

Remote Command Setpoint Input (0-10 Vdc)

Enable (90-120VAC @ 60Hz) (110-120VAC @ 50Hz)

Alarm Reset (90-120VAC @ 60Hz) (110-120VAC @ 50Hz)

Outputs:

Valve Power: 50 Vdc PWM at 6-25 Hertz

Alarm Relay Contacts: 120VAC @ 1A

Excitation Voltage: +/-12Vdc @ 100mA

Reference Voltage: +10Vdc @ 10mA

Weight:

5 Lbs. (1.8 kg)

Display Range: 0 - 1999 counts

Decimal Places: 1000 / 100.0 / 10.00

Alarm Band:

0 - 50% of full scale

Alarm Delay:

0 - 10 Seconds

Recorder Analog Output: 0-10 Vdc
