36 Pneg-1413 4-Leg Towers

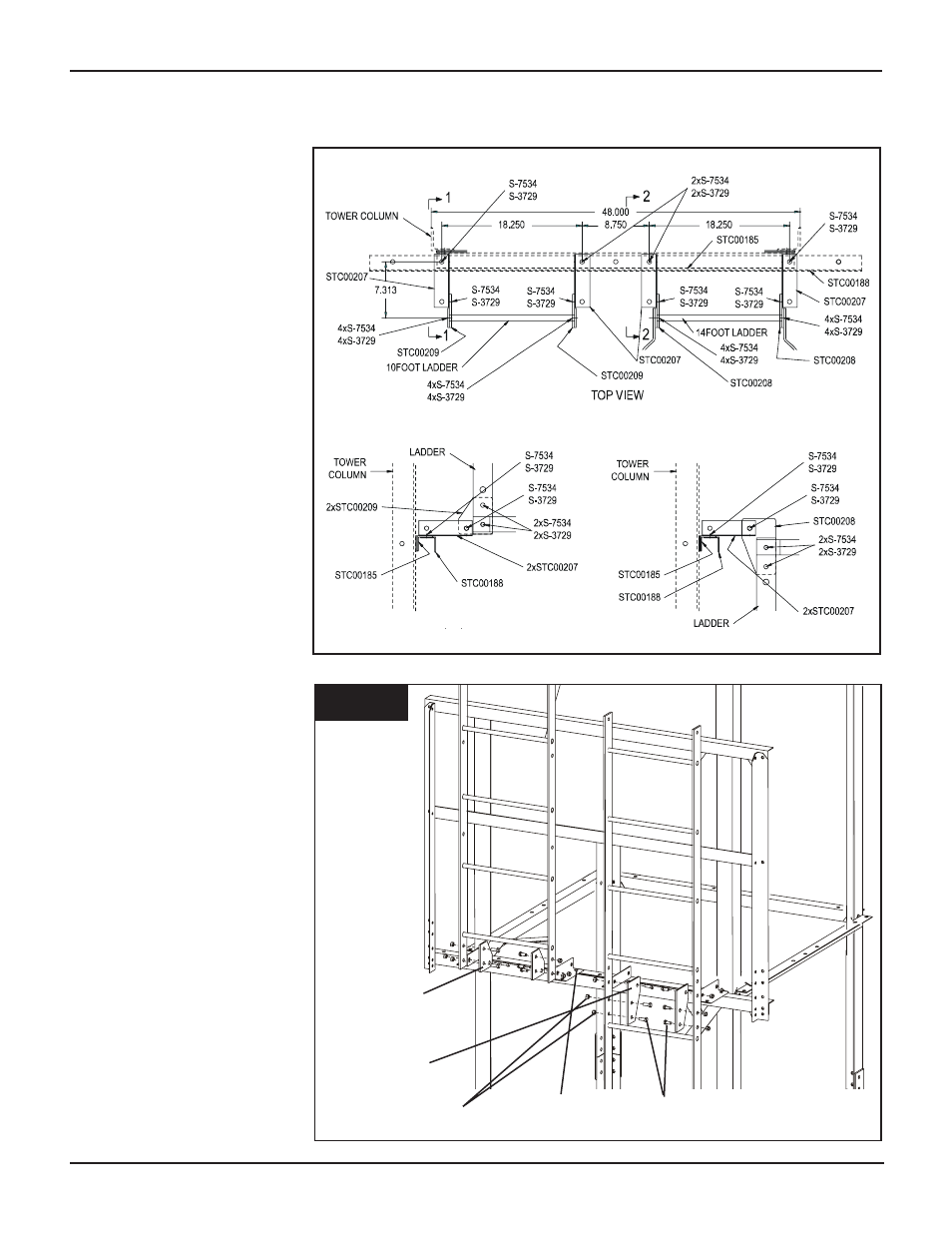

LADDER ATTACHMENT TO OFFSET PLATFORM
STC00209
(Ladder Splice
Plate #2)
S-3729
(1/2" Hex Nuts) S-7534
(1/2" x 1-1/4" HHCS Bolts)
STC00207
(Ladder Stand)
STC00208
(Ladder Splice
Plate #1)
FIG. 11
VIEW OF DETAIL #2 FROM PAGE 34.
NOTE: ALL connections on
this page use 1/2" x 1-1/4"
HHCS bolts (S-7534) and
1/2" hex nuts (S-3729).
ALL bolt heads go to inside of
the ladders.
1. Attach (4) Ladder Stands
(STC00207) to the H-
Braces (STC00185)
using (4) bolts & nuts.
2. Attach Ladder Splice
Plate #1 (STC00208) to
the Ladder Stands
(STC00207) and the 14'
Ladder using (6) bolts &
nuts. (See Fig. 11)
3. Attach Ladder Splice
Plates #2 (STC00209) to
the Ladder Stands
(STC00207) and the 10'
Ladder using (6) bolts &
nuts. (See Fig. 11)
NOTE: Some
parts removed
for clarity.
