35 Pneg-1413 4-Leg Towers

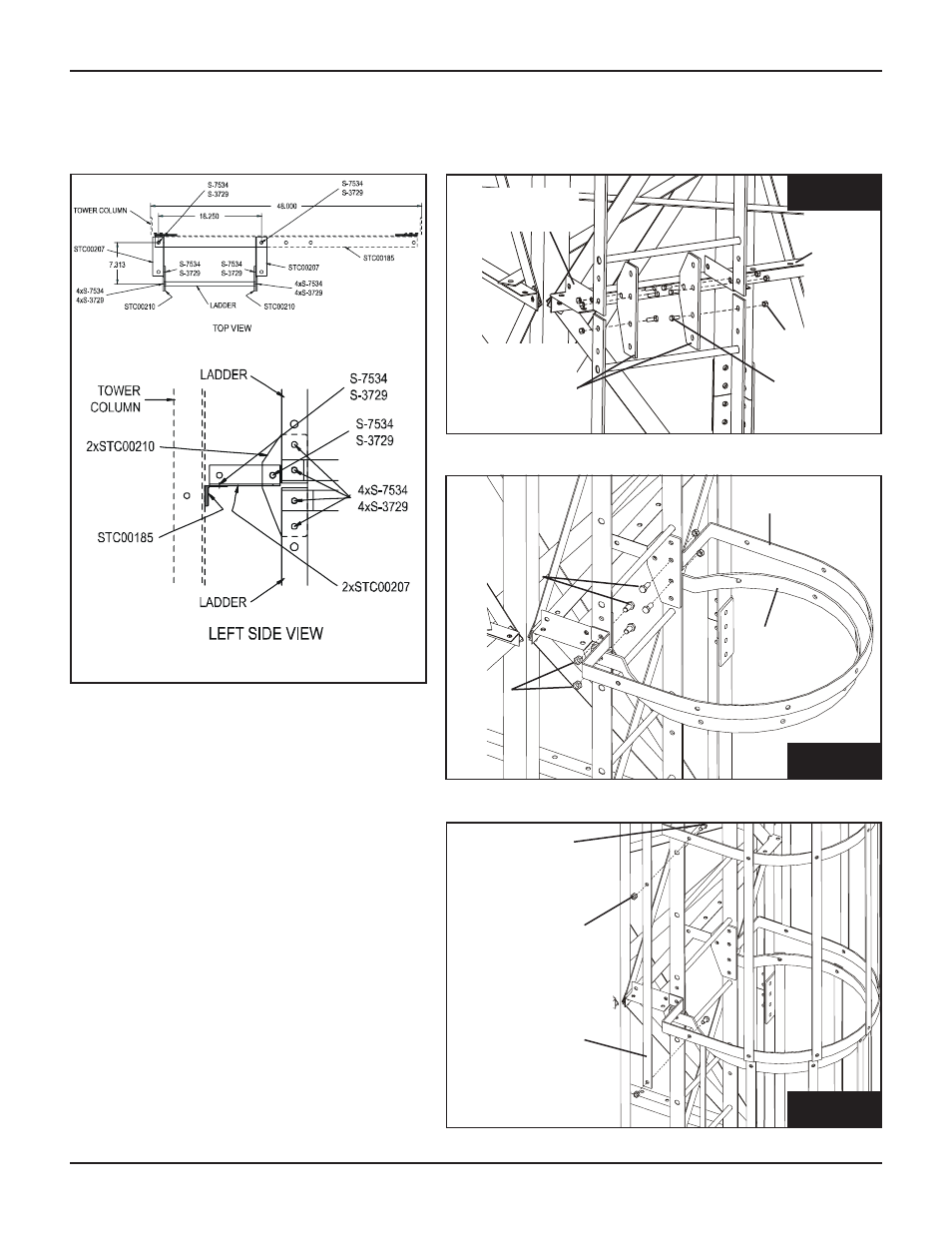

LADDER ATTACHMENT BETWEEN TWO
SAFETY CAGE SECTIONS
S-3729
(1/2" Hex Nuts)
S-7534
(1/2" x 1-1/4"
HHCS Bolts)
STC00213
(Safety Cage Hoop)
27HOOP
(2' - 27" Hoop)
S-3729
(1/2" Hex Nuts)
S-7534
(1/2" x 1-1/4"
HHCS Bolts)
S-3729
(1/2"
Hex
Nuts)
S-7534
(1/2" x 1-1/4"
HHCS Bolts)
10Foot-V
(10' Vertical
Bar)
STC00210
(Ladder Splice
Plate #1)
STC00207
(Ladder Stand)
FIG. 8
FIG. 9
FIG. 10
1. Ladder Stands (STC00207) to H-Brace
(STC00185) using 1/2" x 1-1/4" HHCS
bolts & nuts. (See Fig. 8)
2. Attach Ladder Splice Plates #1
(STC00210) to Ladders and Ladder
Stands (STC00207) using (3) 1/2" x 1-1/4"
HHCS bolts & nuts for each splice plate.
(See Fig. 8)
3. Attach the Safety Cage Hoop (STC00213)
and the 2'-27" Hoop (27HOOP) to the
splice plate using (2) 1/2" x 1-1/4" HHCS
bolts & nuts for each hoop. (See Fig. 9)
4. Attach the vertical bars to the hoops using
the 1/2" hardware provided as shown in
Fig. 10.
STC00185
(H-Brace)
VIEW OF DETAIL #1 FROM PAGE 34.
