11

Pneg-1413 4-Leg Towers

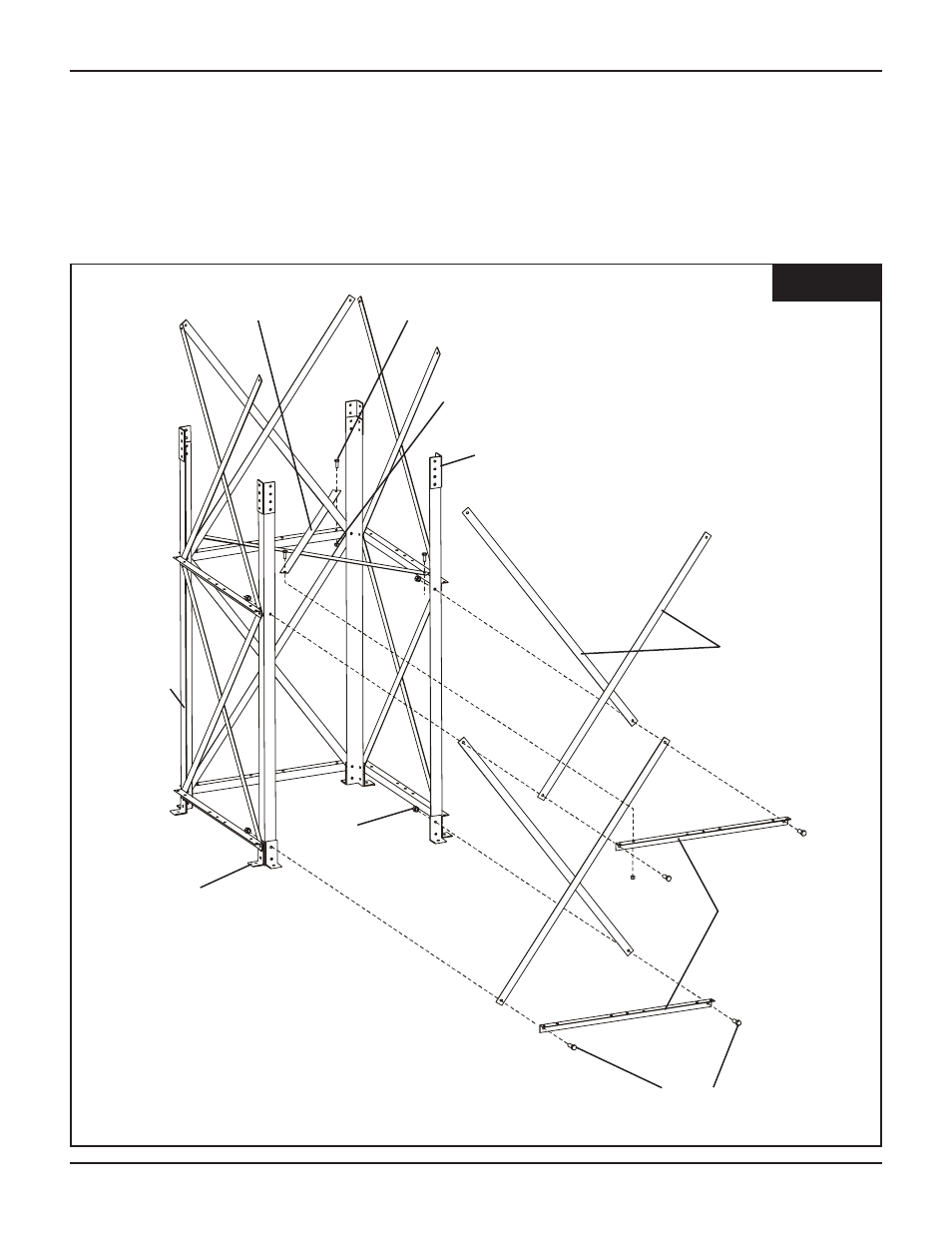

4-LEG TOWER BOTTOM SECTION

STC00177
(Anchor Clips)

STC00185
(H-Braces)

STC00336
(Bottom
Columns)

STC00183
(Vertical X-Braces)

S-3728
(1/2" x 1-1/2"
HHCS Bolts)

S-3729
(1/2" Hex Nuts)

STC00181
(Column Splice Plates)

STC00226
(Internal X-Braces)

S-7534
(1/2" x 1-1/4"
HHCS Bolts)

S-3729
(1/2" Hex Nuts)

SIDE 3 & SIDE 4 ASSEMBLY

1.

Connect the first two sections together by
attaching the Vertical X-Braces (STC00183) &
H-Braces (STC00185) as shown in Fig. 2, using
the 1/2" hardware provided.

2.

Attach the Internal X-Braces (STC00226) to the
H-Braces (STC00185) as shown in Fig. 2, using
the 1/2" hardware provided (S-7534 & S-3729).

FIG. 2
