8. Schematics/Wiring Diagrams
PNEG-163-08 Centrifugal Fan 71

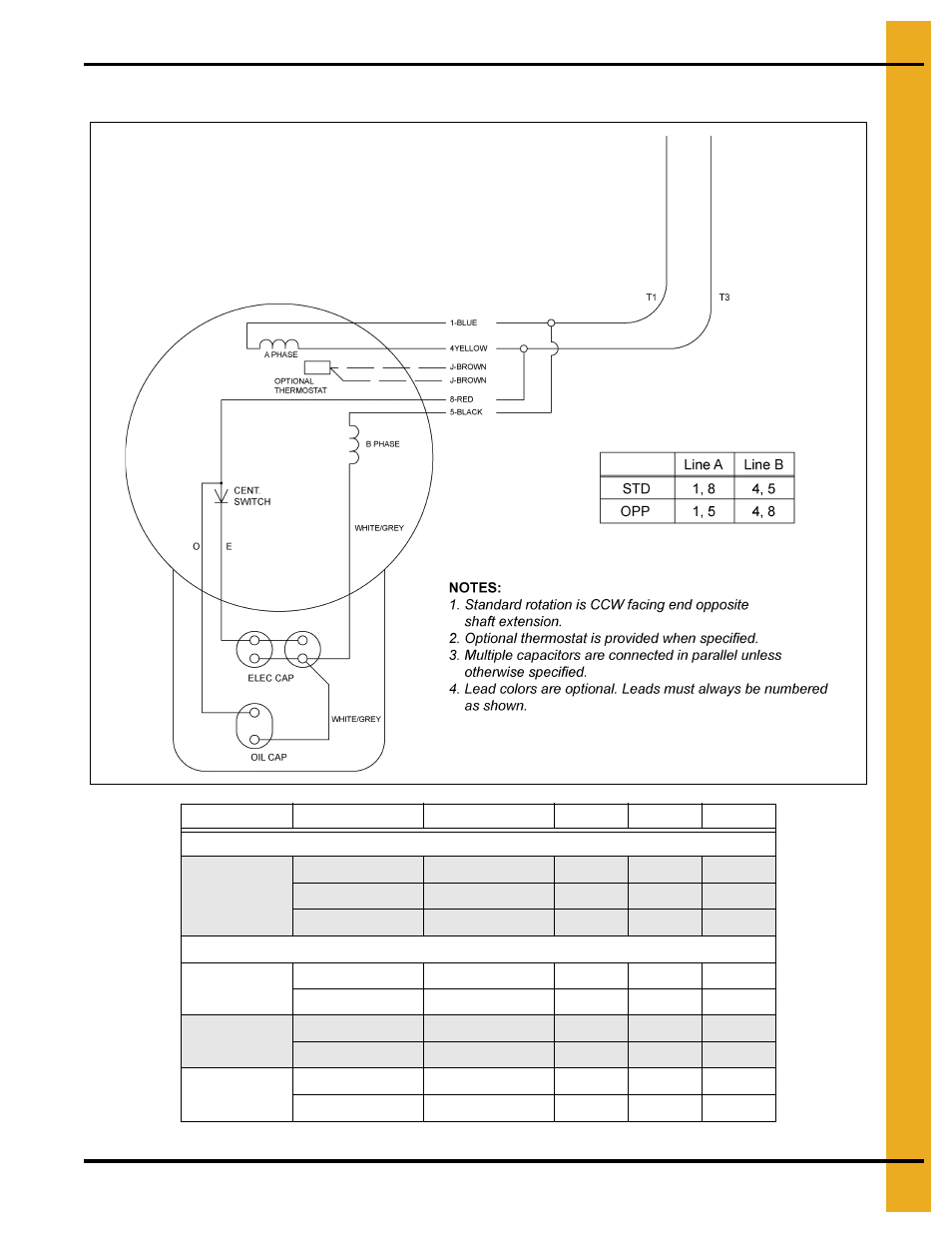

Wiring Diagram - CF-5-1C, CF-7.5-1C, CHS-5-1C and CHS-7.5-1C
Motor Part # Capacitor Part # Capacitor Type MFD Voltage Qty
CF-3-1 Capacitor Specifications
C-7979
FH-7012 Electrolytic 161 250 1
FH-7000 Electrolytic 216 250 1
FH-7011 Oil 35 370 1
CF-5-1 Capacitor Specifications
C-7980
FH-7000 Electrolytic 216 250 2
CH-6898 Oil 40 370 1
FH-5476
FH-7012 Electrolytic 216 250 2
CH-6898 Oil 40 370 1
FH-5478
FH-7000 Electrolytic 216 250 2
FH-7010 Oil 25 370 1
