7. Parts List
34
PNEG-163-08 Centrifugal Fan

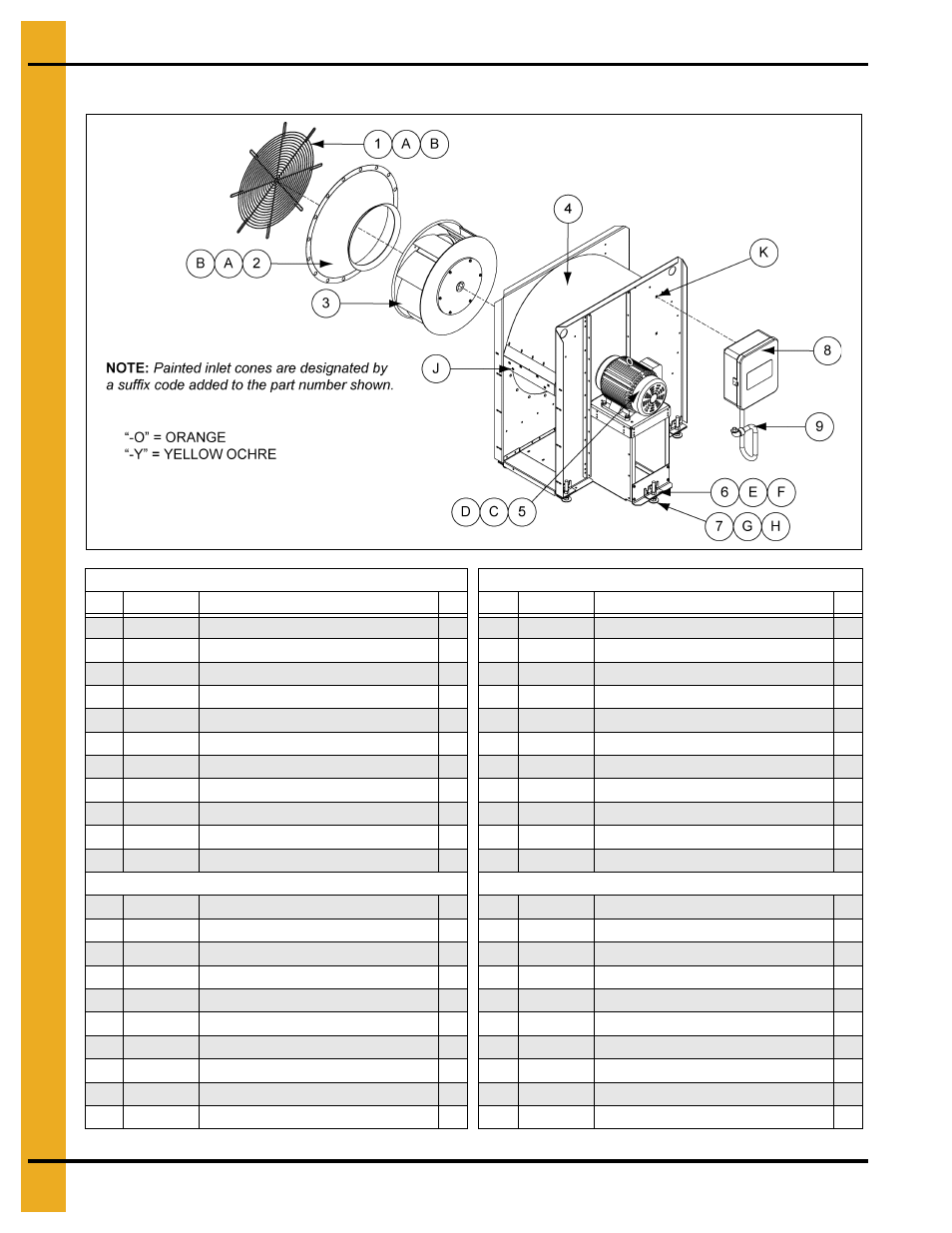

Main Assembly - 1750 RPM Fans
Model: CF-3
Model: CF-5
Ref #
Part #
Description
Qty
Ref #
Part #
Description
Qty
1
C-7746
Grill Guard
1
1
C-7748
Grill Guard
1
2
C-7747
Inlet Cone - Painted
1
2
C-7749
Inlet Cone - Painted
1
3
CH-6878
Blade and Hub Assembly
1
3
C-956
Blade and Hub Assembly
1
4
C-8136
Housing Assembly
1
4
C-8114
Housing Assembly
1
5
C-7979
Motor - 1 Phase 230 Volt
1
5
C-7980
Motor - 1 Phase 230 Volt
1
5
C-7984
Motor - 3 Phase 208-230/460 Volt
1
5
C-7985
Motor - 3 Phase 208-230/460 Volt
1
5
300-3-5
Motor - 3 Phase 575 Volt
1
5
500-3-5
Motor - 3 Phase 575 Volt
1
6
C-8322
Leg Bracket
5
6
C-8322
Leg Bracket
5
7
C-7519
Leveling Leg
5
7
C-7519
Leveling Leg
5
8
Reference
Control Box Assembly
1
8
Reference
Control Box Assembly
1
9
Reference
Conduit Assembly
1
9
Reference
Conduit Assembly
1
A
S-968
Nut Flange Whiz 3/8"-16 ZN Grade 5
16
A
S-968
Nut Flange Whiz 3/8"-16 ZN Grade 5
16
B
S-3671
Fender Washer 25/64" x 1-1/2" ZN
24
B
S-3671
Fender Washer 25/64" x 1-1/2" ZN
24
C
S-9064
Bolt Flange 3/8"-16 x 1-1/2" ZN Grade 5
4
C
S-9064
Bolt Flange 3/8"-16 x 1-1/2" ZN Grade 5
4
D
S-968
Nut Flange Whiz 3/8"-16 ZN Grade 5
4
D
S-968
Nut Flange Whiz 3/8"-16 ZN Grade 5
4
E
S-6606
Bolt Flange 5/16"-18 x 3/4" ZN Grade 5
10
E
S-6606
Bolt Flange 5/16"-18 x 3/4" ZN Grade 5
10
F
S-3611
Nut Flange Whiz 5/16"-18 ZN YDP
10
F
S-3611
Nut Flange Whiz 5/16"-18 ZN YDP
10
G
S-866
Flat Washer 3/4" USS ZN
5
G
S-866
Flat Washer 3/4" USS ZN
5
H
S-234
Hex Nut 3/4"-10 ZN Grade 5
10
H
S-234
Hex Nut 3/4"-10 ZN Grade 5
10
J
090-1709-6 Retainer Nut 5/16"-18 x 0.120" ZN
2
J
090-1709-6 Retainer Nut 5/16"-18 x 0.120" ZN
2
K
090-1709-6 Retainer Nut 5/16"-18 x 0.120" ZN
2
K
090-1709-6 Retainer Nut 5/16"-18 x 0.120" ZN
2
