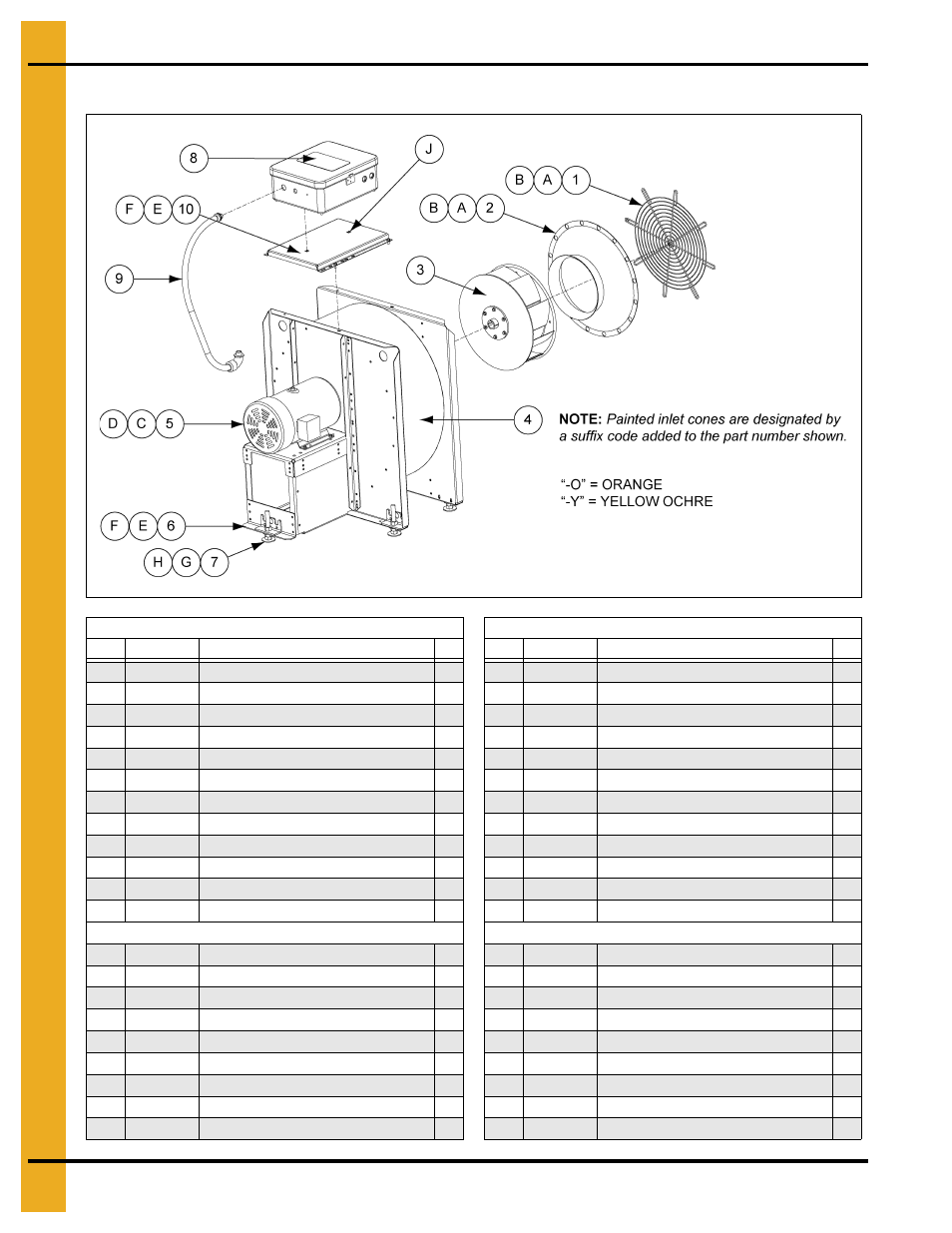

7. Parts List
40
PNEG-163-08 Centrifugal Fan
Main Assembly - 3500 RPM Fans (Continued)
Model: CHS-7.5
Model: CHS-10
Ref #
Part #
Description
Qty
Ref #
Part #
Description
Qty
1
C-7744
Grill Guard
1
1
C-7744
Grill Guard
1
2
C-7745
Inlet Cone - Painted
1
2
C-7745
Inlet Cone - Painted
1
3
FH-5466
Blade and Hub Assembly
1
3
FH-5467
Blade and Hub Assembly
1
4
C-8214
Housing Assembly
1
4
C-8156
Housing Assembly
1
5
FH-5478
Motor - 1 Phase 230 Volt
1
5
FH-5480
Motor - 1 Phase 230 Volt
1
5
FH-5479
Motor - 3 Phase 208-230/460 Volt
1
5
FH-5481
Motor - 3 Phase 230/460 Volt
1
5
CH-6828
Motor - 3 Phase 575 Volt
1
5
CH-6829
Motor - 3 Phase 575 Volt
1
6
C-8322
Leg Bracket
5
6
C-8322
Leg Bracket
5
7
C-7519
Leveling Leg
5
7
C-7519
Leveling Leg
5
8
Reference
Control Box Assembly
1
8
Reference
Control Box Assembly
1
9
Reference
Conduit Assembly
1
9
Reference
Conduit Assembly
1
10
C-8261
Control Box Adapter Plate - CHS
1
10
C-8261
Control Box Adapter Plate - CHS
1
A
S-968
Nut Flange Whiz 3/8"-16 ZN Grade 5
16
A
S-968
Nut Flange Whiz 3/8"-16 ZN GR5
16
B
S-3671
Fender Washer 25/64" x 1-1/2" ZN
24
B
S-3671
Fender Washer 25/64" x 1-1/2" ZN
24
C
S-9064
Bolt Flange 3/8"-16 x 1-1/2" ZN Grade 5
4
C
S-9064
Bolt Flange 3/8"-16 x 1-1/2" ZN Grade 5
4
D
S-968
Nut Flange Whiz 3/8"-16 ZN Grade 5
4
D
S-968
Nut Flange Whiz 3/8"-16 ZN Grade 5
4
E
S-6606
Bolt Flange 5/16"-18 x 3/4" ZN Grade 5 14
E
S-6606
Bolt Flange 5/16"-18 x 3/4" ZN Grade 5 14
F
S-3611
Nut Flange Whiz 5/16"-18 ZN YDP
14
F
S-3611
Nut Flange Whiz 5/16"-18 ZN YDP
14
G
S-866
Flat Washer 3/4" USS ZN
5
G
S-866
Flat Washer 3/4" USS ZN
5
H
S-234
Hex Nut 3/4"-10 ZN Grade 5
10
H
S-234
Hex Nut 3/4"-10 ZN Grade 5
10
J
090-1709-6 Retainer Nut 5/16"-18 x 0.120" ZN
2
J
090-1709-6 Retainer Nut 5/16"-18 x 0.120 ZN
2
