7. Parts List
46 PNEG-163-08 Centrifugal Fan

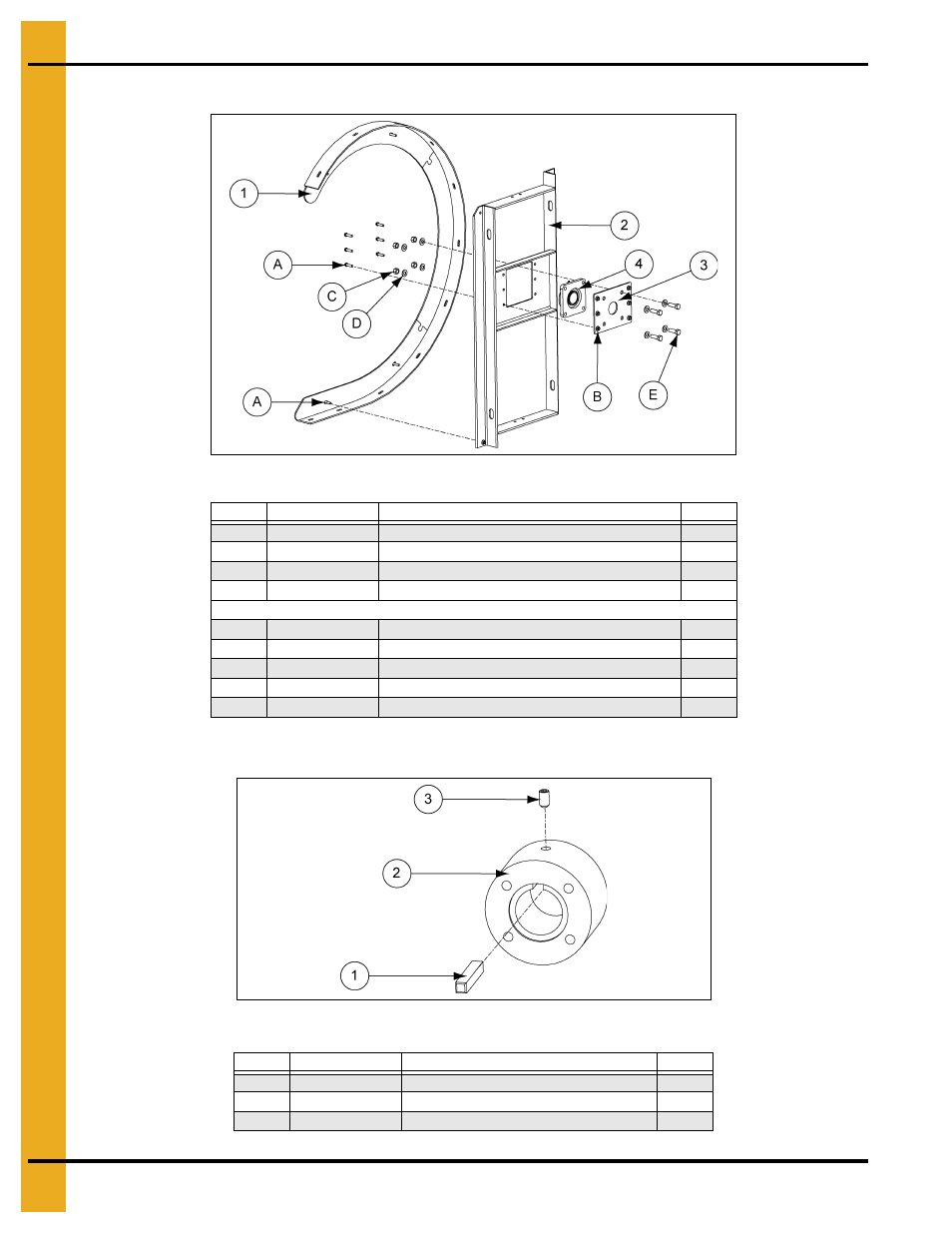

Internal Bearing Arch Assembly - Double Inlet Fan
Companion Flange Kit - C-8570
Internal Bearing Arch Assembly - Double Inlet Fan Parts List
Ref # Part # Description Qty
1 C-7709 Bearing Arch Weldment 1
2 C-8446 C.F D.I Internal Bearing Weld - 04 1
3 C-8447 D.I C.F Internal Bearing Mount Plate 1
4 C-8395 Bearing - Griptight 211 2.188 4B 1
A S-9064 Bolt Flange 3/8"-16 x 1-1/2" ZN Grade 5 10
B S-968 Nut Flange Whiz 3/8"-16 ZN Grade 5 10
C S-6494 Lock Nut 5/8"-11 ZN Grade 5 Deformd 4
D S-7400 Flat Washer 5/8" SAE ZN Grade 2 8
E S-4329 Bolt HHCS 5/8"-11 x 2" YW ZN Grade 8 4
Companion Flange Kit - C-8570 Parts List
Ref # Part # Description Qty
1 C-8394 Square Key 1/2" x 3-1/4" 1
2 C-8550 Flange - Companion 2.188" Shaft 1
3 S-9355 Set Screw 7/16"-20 x 3/4" SKT Cup 1
