4. Assembly Instructions
58
PNEG-1785 NCHT “X” Series Ladders
4. Assemble the ladder and ladder brackets to the intermediate platform bracket using 5/16" x 3/4"
bin bolt (S-275) (E) and flange nut (S-3611) (F).
NOTE: The top ladder rung must be level with the platform floor.

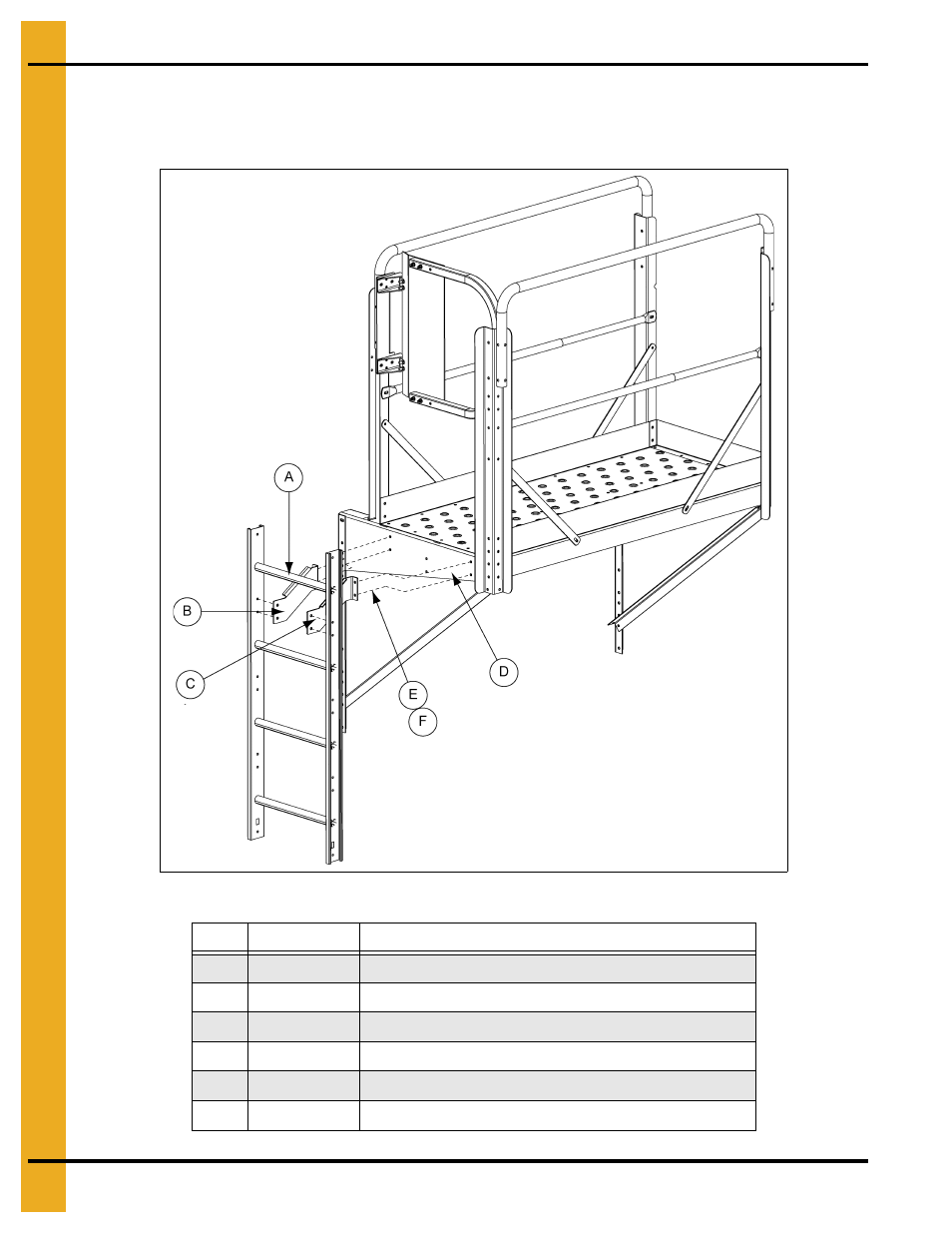

Figure 4AV
Ref #
Part #
Description
A
4FOOTRF
4' Roll Formed Ladder
B
LDR-5178
Intermediate Platform Ladder Bracket - Left
C
LDR-5177
Intermediate Platform Ladder Bracket - Right
D
LDR-5174
Platform Wall Bracket - Left
E
S-275
5/16" x 3/4" Bin Bolt
F
S-3611
5/16" Flange Nut
