Assembly instructions – Grain Systems Bin Accessories PNEG-1785 User Manual
Page 57
4. Assembly Instructions
PNEG-1785 NCHT “X” Series Ladders
57
3. Assemble the safety cage bars (knee brace) to the posts and front and back angles using
5/16" hardware.
NOTE: Make sure the intermediate platform is level before tightening hardware.

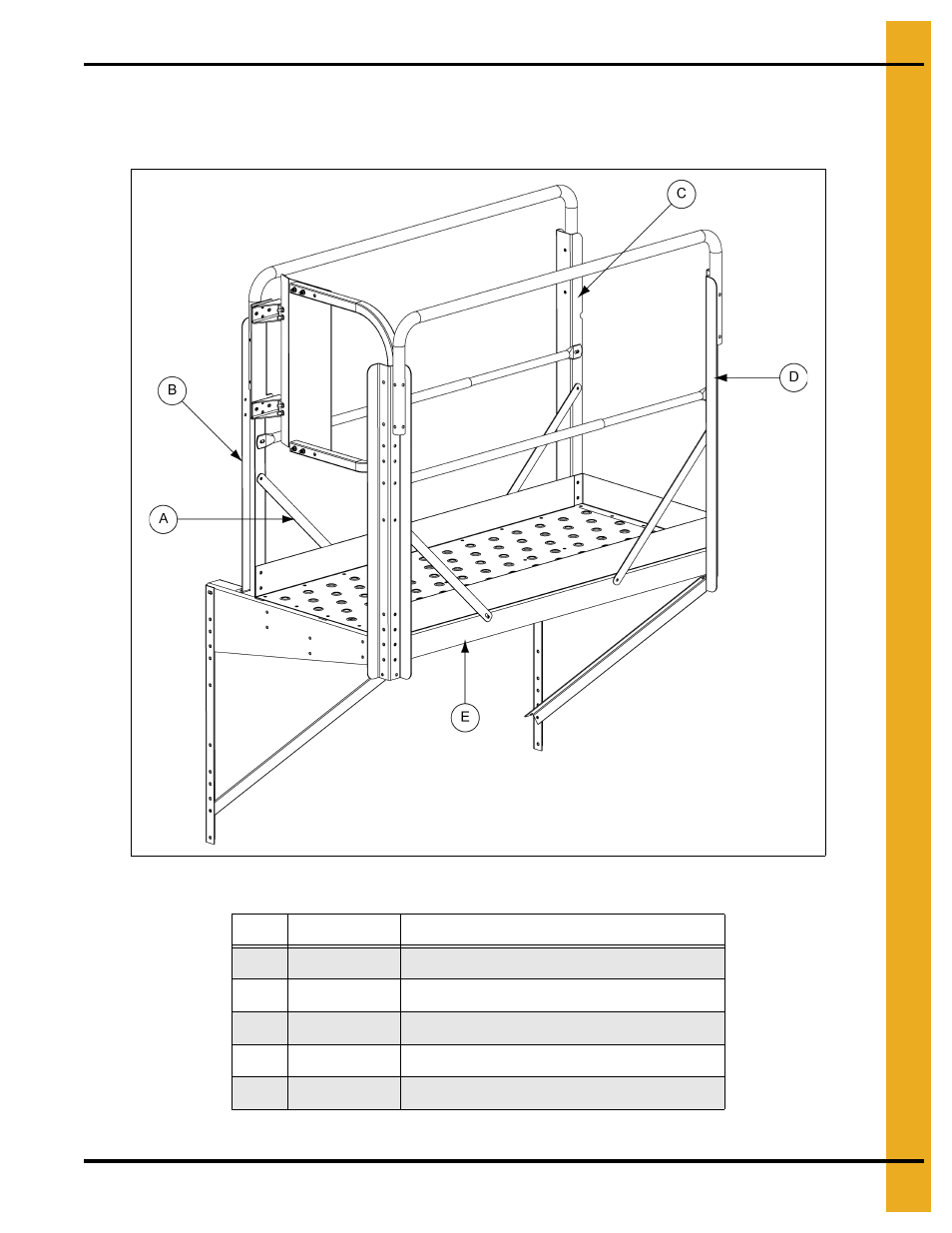

Figure 4AU
Ref #
Part #
Description
A
LDR-5171
24" Safety Cage Bar
B
LDR-5183
Intermediate Platform Back Post - Left
C
LDR-5184
Intermediate Platform Back Post - Right
D
LDR-5179
Intermediate Platform Front Post
E
LDR-5175
Intermediate Platform Front Angle
