4. Assembly Instructions
42 PNEG-1785 NCHT “X” Series Ladders

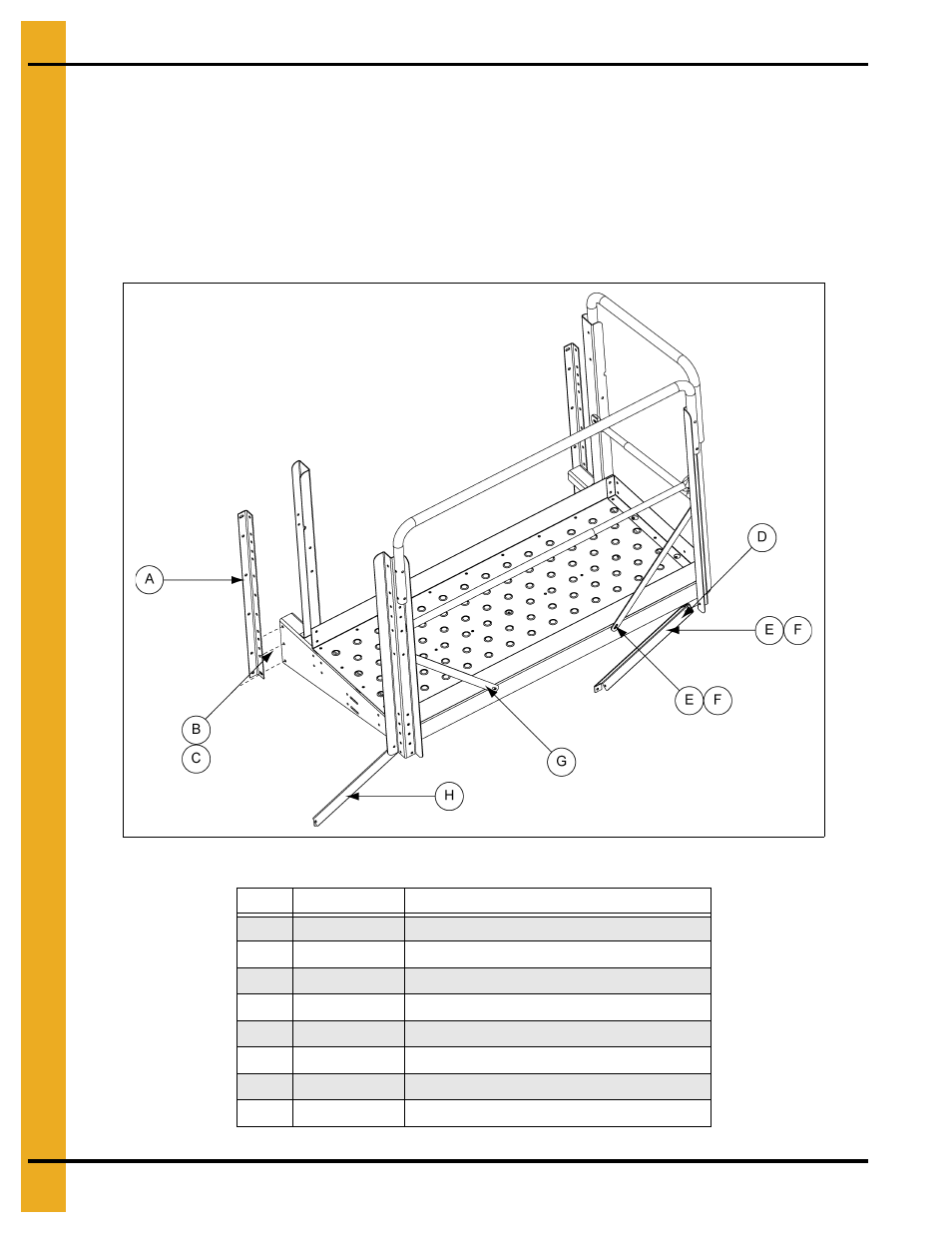

3. Figure 4AF shows assembly of wall angle to wall bracket and assembly of platform brace to
corner posts.
Attach wall angle (LDR-5168) (A) to wall bracket (LDR-5174) using 3/8" x 1" bolt (S-7927) (B) and
flange nut (S-9373) (C).
Attach platform brace to corner post using 5/16" x 3/4" bin bolt (S-275) (E) and flange nut
(S-3611) (F).
Attach 24" safety cage bar to platform posts and platform front angle using 5/16" x 3/4" bin bolt
(S-275) (E) and flange nut (S-3611) (F).
Figure 4AF
Ref # Part # Description
A LDR-5168 Wall Angle
B S-7927 3/8" x 1" Flange Bolt
C S-9373 3/8" Flange Nut
D LDR-5338 Platform Brace - Right
E S-275 5/16" x 3/4" Bin Bolt
F S-3611 5/16" Flange Nut
G LDR-5171 24" Safety Cage Bar
H LDR-5337 Platform Brace - Left
