4. Assembly Instructions
PNEG-1785 NCHT “X” Series Ladders 41
2. Figure 4AE shows the assembly of the platform post, handrail post, toe plate, upper and intermediate
handrail and platform corner posts. Toe kick and post must be assembled at the same time.
Attach intermediate handrails (small and large) to platform posts using 5/16" x 3/4" bin bolt (S-275)
(H) and flange nut (S-3611) (I).
Attach upper handrails (short and long) to platform post using 5/16" x 2" bolt (S-7877) (J) and flange
nut (S-3611) (I).
Attach handrail posts and platform posts to platform using 5/16" x 3/4" truss head bolt (S-4303) (K)
and flange nut (S-3611) (I).

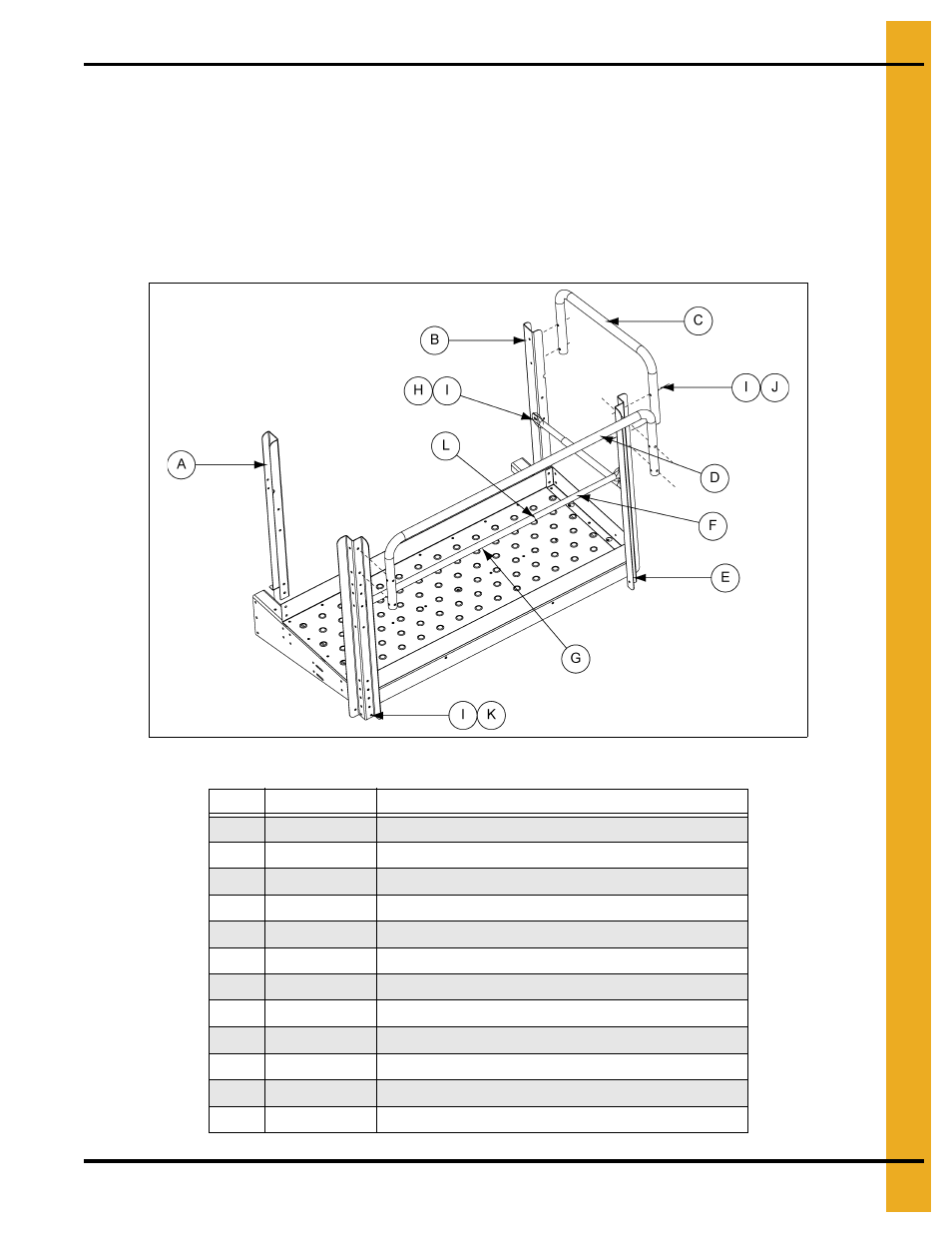

Figure 4AE
Ref # Part # Description
A LDR-5183 Platform Post
B LDR-5184 Platform Post
C LDR-5339 Short Handrail
D LDR-5182 Long Handrail
E LDR-5179 Platform Post
F LDR-4088 Small Intermediate Handrail (Field Cut to Fit)
G LDR-4087 Large Intermediate Handrail (Field Cut to Fit)
H S-275 5/16" x 3/4" Bin Bolt
I S-3611 5/16" Flange Nut
J S-7877 5/16" x 2" Flange Bolt
K S-4303 5/16" x 3/4" Truss Head Bolt
L Place self-drilling screw on bottom at overlap.
