3. Fan/Heaters
PNEG-1934 Single Module Vision Hybrid Portable Dryer 61
Fan Motor, Motor Mount and Fan Blade

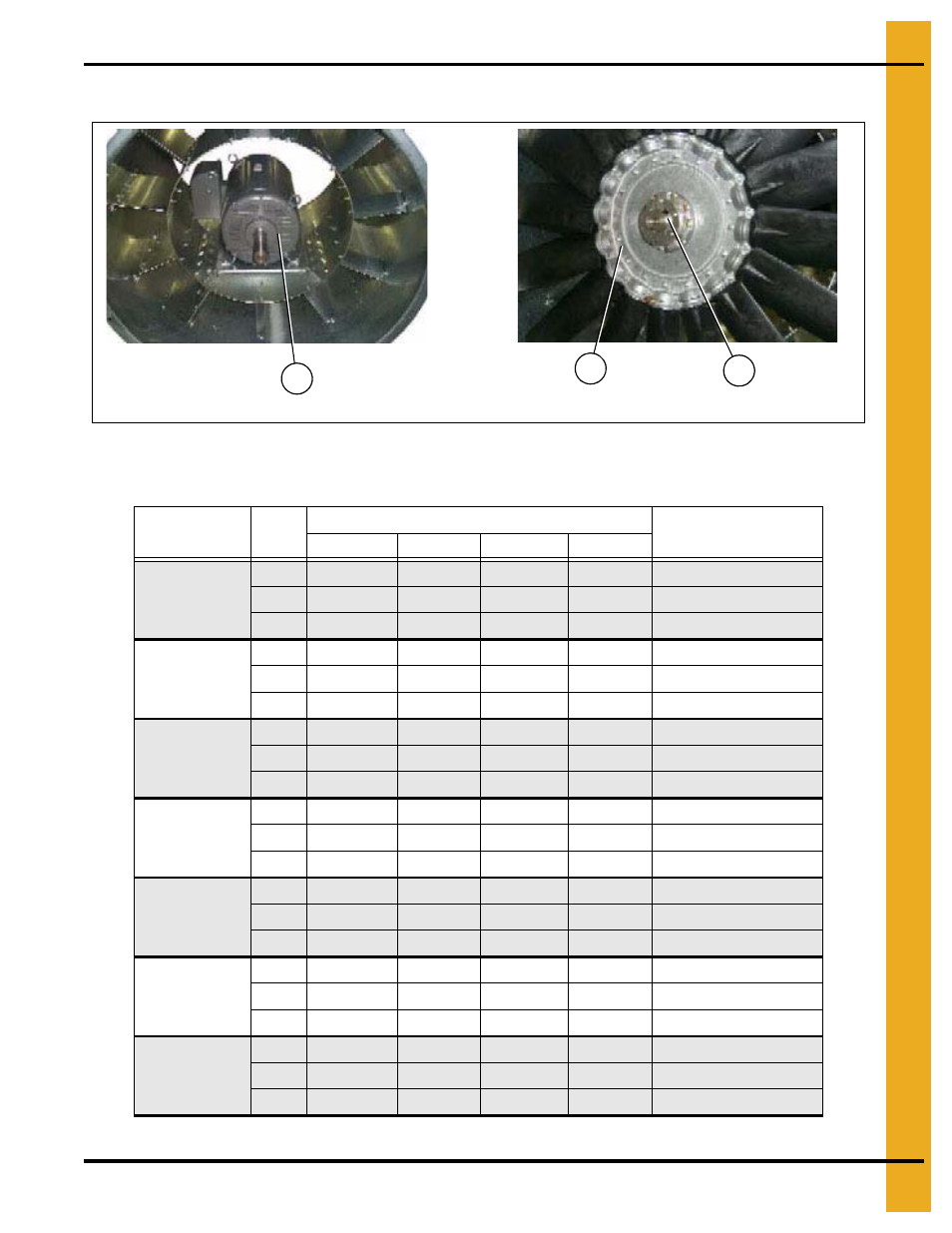

Figure 3G
Fan Motor, Motor Mount and Fan Blade Parts List
Fan/Heater
(Diameter, HP)
Ref #
Part #
Description
220V 1 PH 208V 3 PH 220V 3 PH 440V 3 PH
36" 12 HP
1 002-1075-7 CD-0239 CD-0239 CD-0239 Motor
2 D03-0302 D03-0302 D03-0302 D03-0302 Fan Blade
3 FH-1009 FH-1009 FH-1009 FH-1009 Bushing
36" 15 HP
1 CD-0580 MTR-0009 MTR-0009 MTR-0009 Motor
2 D82-0002 D82-0002 D82-0002 D82-0002 Fan Blade
3 FH-6963 FH-6963 FH-6963 FH-6963 Bushing
40" 15 HP
1 CD-0580 MTR-0009 MTR-0009 MTR-0009 Motor
2 D03-0914 D03-0914 D03-0914 D03-0914 Fan Blade
3 GC03810 GC03810 GC03810 GC03810 Bushing
42" 20 HP
1 N/A MTR-0010 MTR-0010 MTR-0010 Motor
2 N/A D01-0470 D01-0470 D01-0470 Fan Blade
3 N/A GC03810 GC03810 GC03810 Bushing
42" 25 HP
1 N/A MTR-0011 MTR-0011 MTR-0011 Motor
2 N/A D01-0471 D01-0471 D01-0471 Fan Blade
3 N/A CE-00617 CE-00617 CE-00617 Bushing
42" 30 HP
1 N/A MTR-0012 MTR-0012 MTR-0012 Motor
2 N/A D01-0472 D01-0472 D01-0472 Fan Blade
3 N/A CE-00617 CE-00617 CE-00617 Bushing
42" 40 HP
1 N/A MTR-0030 MTR-0030 MTR-0030 Motor
2 N/A D01-0473 D01-0473 D01-0473 Fan Blade
3 N/A PT0784 PT0784 PT0784 Bushing
Fan blade and bushing Fan motor and motor mount
1
3 2
