96827 v.6.0
21
5.
Make sure the suction cup and the
mounting area on the windshield are
clean and dry. With the suction lever
in the up position, ensure the suction
cup is flat against the windshield, and
then push the suction lever down to
secure in place.
6.
Next, remove and set the side dash
access panel aside.
If installing a Banks SpeedBrake use
step 7 and skip steps 8-10.
If not installing SpeedBrake, use
steps 8-10 and skip step 7.
7.
RJ Connector with SpeedBrake
Banks iQ: Locate Banks iQ Bridge
Module and connect the RJ12 connector
from the Banks SpeedBrake wire Harness
into the Bridge Module. See Figure 20.
PowerPDA: connect the RJ12
connector from the Banks SpeedBrake
wire Harness into the leftmost receptacle
on the bottom of the Docking Station.
For Banks SpeedBrake with a
PowerPDA. Skip steps 8-12.
8.
RJ Connector without SpeedBrake
Locate the Banks OBD II Interface
cable in your kit. This cable has
three connection points. connect
the RED OBD II connector on the
Banks interface cable to the vehicle
OBD II connector. Use a cable tie as
shown in Figure 18 to secure the
Banks interface cable to the vehicle
OBD II connector. Next, connect the
6-pin connector on the Banks OBD II
interface cable to the 6-pin connector
on the Six-Gun Tuner harness.
9.
Locate the RJ12 cable (similar to
telephone connector) on your Banks
OBDII interface cable . See Figure 19.
10.
Locate Banks iQ Bridge Module and
connect the RJ12 connector into the
Bridge Module. See Figure 20.
11.
Route the Banks iQ USB interface
cable from the Banks iQ Bridge Module
under the dash and out through the
fuse access panel opening. The cable
can be slid under the door frame’s seal
and run up to the top of the dash. Pull
enough cable to reach the Banks iQ

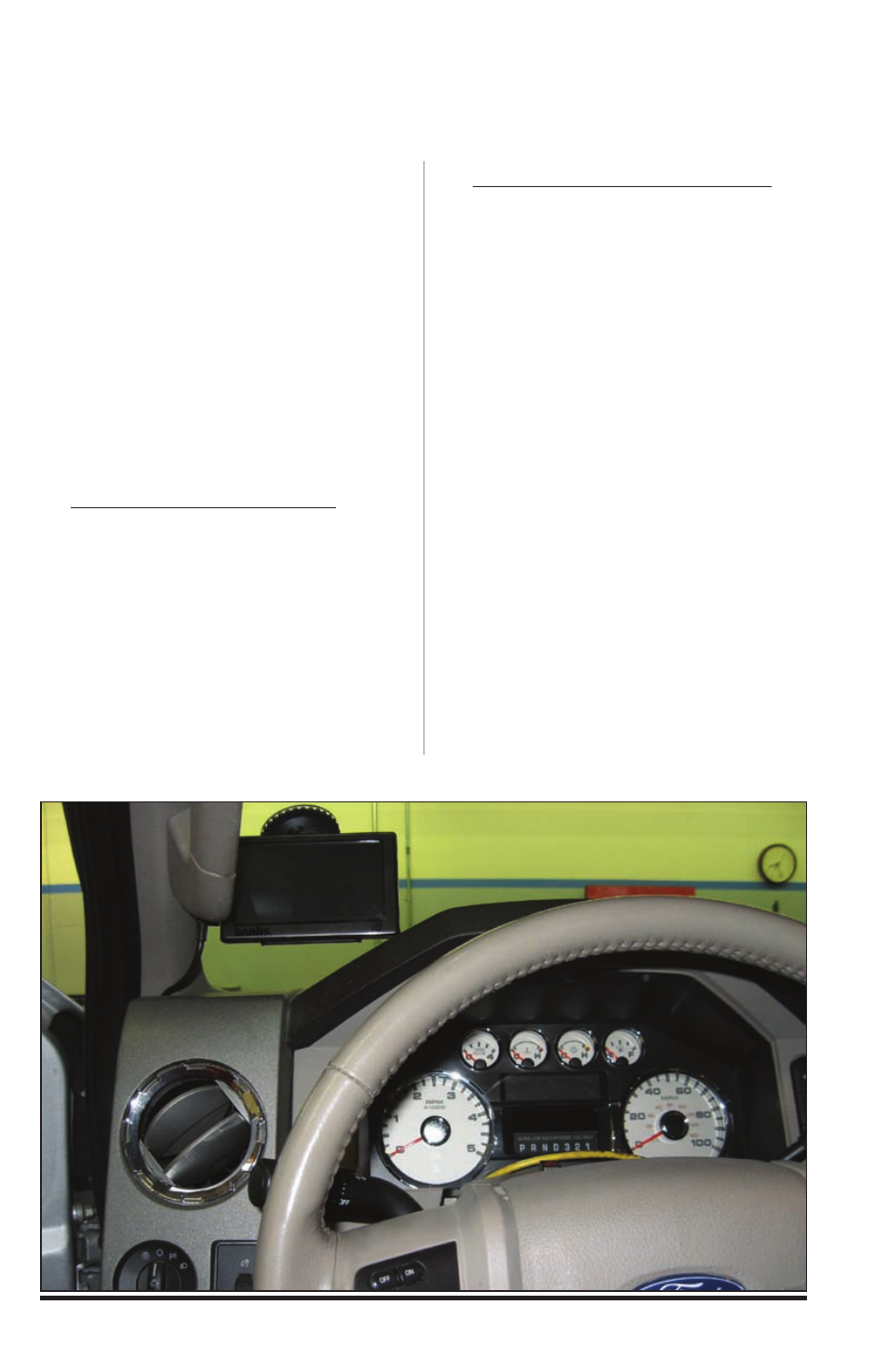

Figure 17 Suggested Mounting location for Banks iQ
