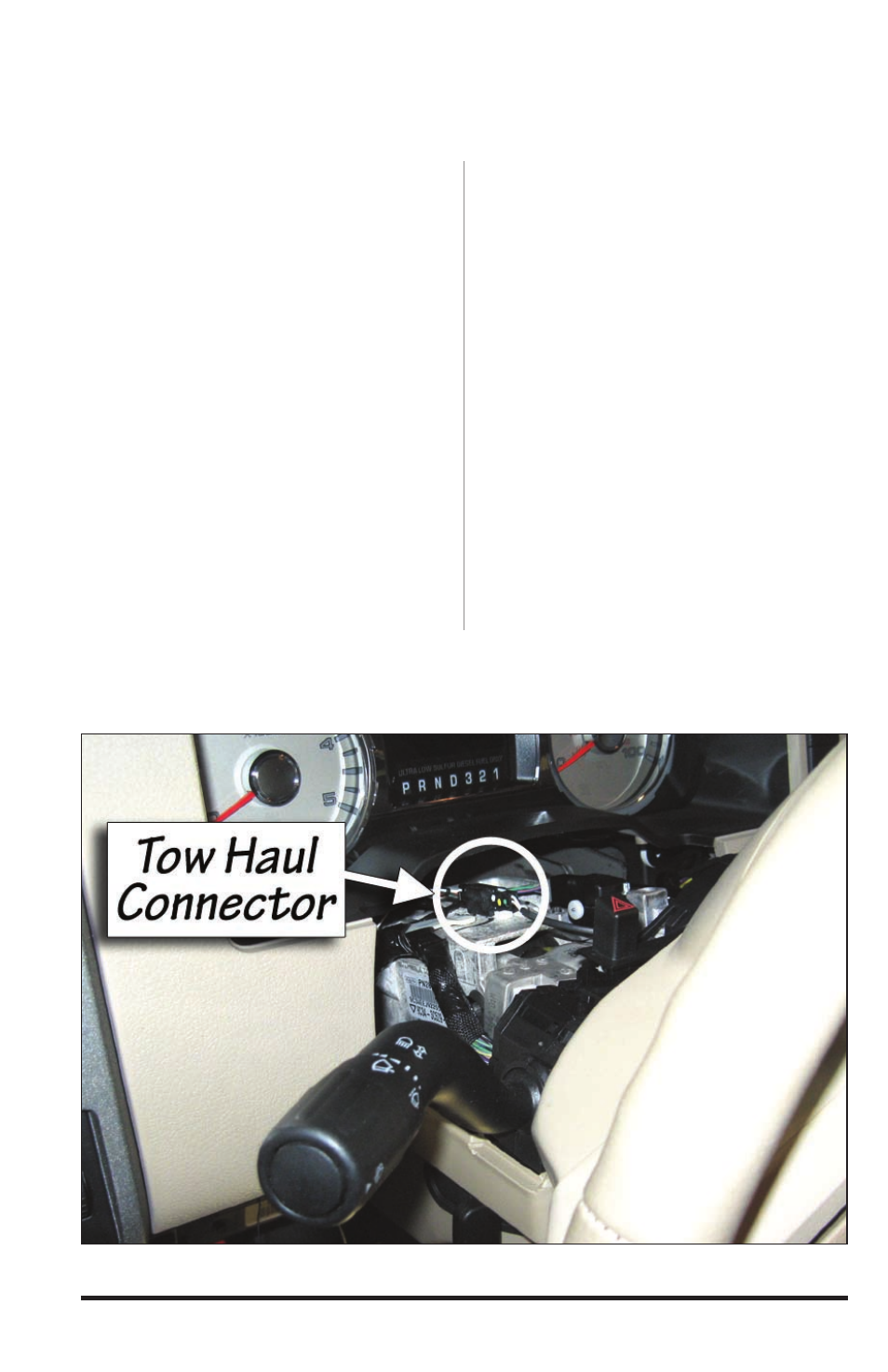

Figure 14 Tow Haul Connector on steering column, under main harness
18.
Locate the tow haul intercept
connector on the Banks Brake Wire
harness. Route the Tow Haul intercept
connectors under the dash towards the
front of the vehicle and up to the top
of the steering column following the
factory harness to the factory tow haul
connector. Make sure the connectors
and wires are free of rotation from the
steering column. connect the female
connector on the Tow Haul intercept
connectors to the factory male tow
haul connector. connect the male
connector on the Tow Haul intercept
connectors to the factory female tow
haul connector. Secure the connectors
and wires with supplied cable ties.
19.
connect the Brake module 10-pin
connector on the Banks Brake wire
harness to the Brake module. The
connector will be the only one with a
label.
NoTe: Make sure the correct connection
is made to the Tuner and the Banks Brake
before proceeding.
20.
Secure Brake Module under the
dash to any dash frame support or
main wiring harness using the supplied
cable ties. Use the cable tie support
loops on the side of the Brake Module
to securely fasten it under the dash.
See Figure 15.
NoTe: Make sure to mount the Brake
Module under the dash away from
moving parts or where it can obstruct
feet movement.
