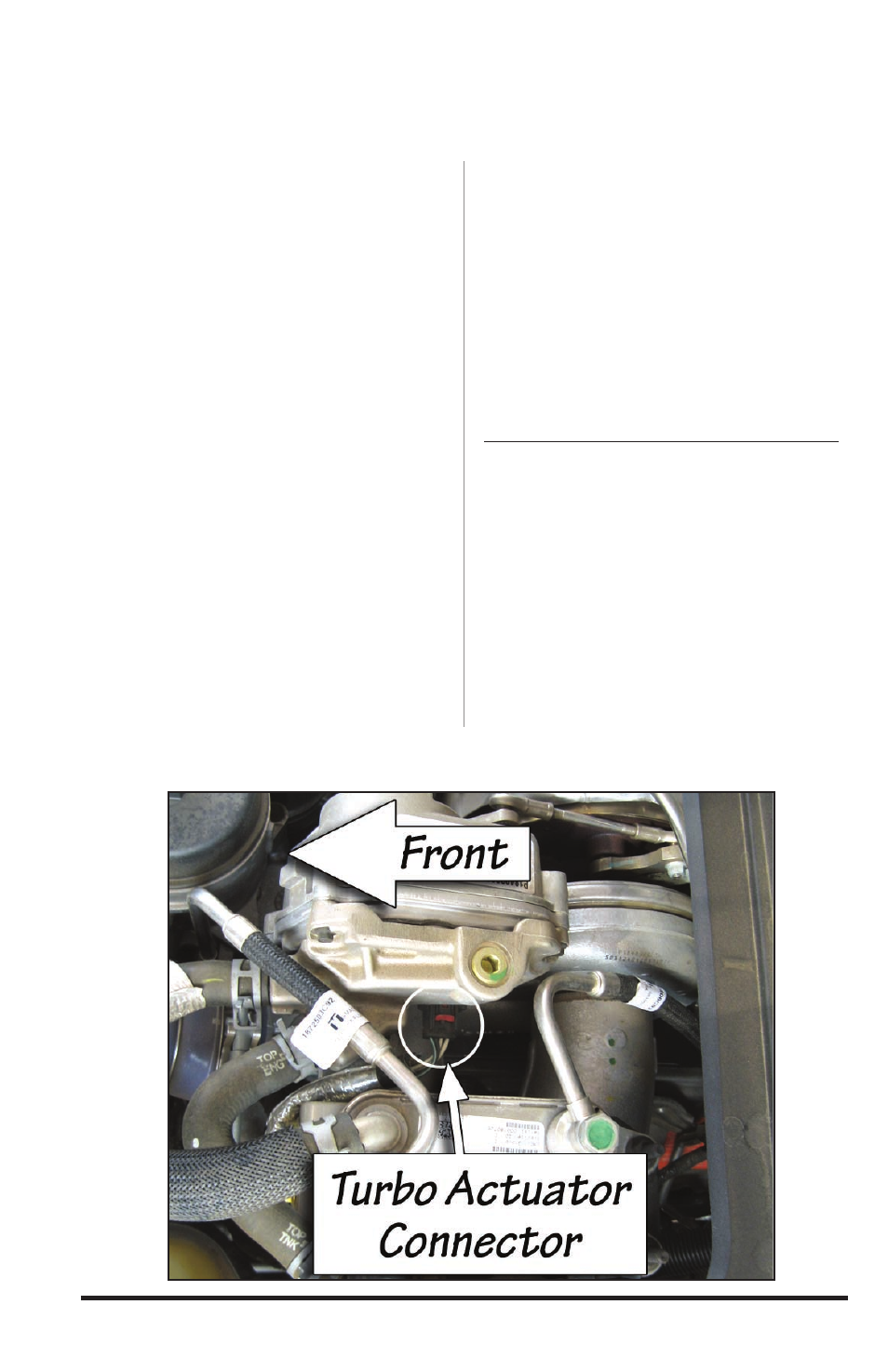

Figure 4: Turbo Actuator Connector
NoTe: Do not connect the Six-Gun
PCM harness to the tuner. It will be
connected in step 17.
6.
Locate the Six-Gun Turbo/In-cab
harness. Place the harness over the
driver side fuse box. Route the turbo
actuator connector on the Turbo/
in-cab harness along the rail on the
rear of the engine compartment to the
turbo.
7.
Unplug the turbo actuator
connector shown in Figure 4. The
turbo actuator cable connector can
be unplugged by sliding the red safety
slide down, pressing the locking
button, and then pulling on the
connector.
8.
Plug the female Six-Gun turbo
actuator connector into the male
factory turbo actuator connector.
Plug the female factory turbo actuator
connector into the male Six-Gun turbo
actuator connector.
9.
Secure the Six-Gun turbo actuator
connector wires to the firewall rail
using the supplied zip ties. Secure the
wires away from any heat source.
WARNING: The use of Banks Brake
is for use with installed Six-Gun
Tuner Package.
10.
Remove the bottom steering
column panel by pulling out to release
the retaining clip. See Figure 5.
Installing harness through firewall.
11.
Locate the rubber grommet on the
driver’s side of the vehicle firewall. The
grommet is about 3” in diameter. Make
a 1” x 1” cross-shaped (X) incision in
the grommet. Be careful so you do not
cut the factory harness.
12.
From inside the cab locate the
grommet on the firewall and make
another 1” x 1” cross-shaped (X)
incision on the grommet, opposite the
spot that was cut from the outside.
