If installing a Banks SpeedBrake with
a PowerPDA. Proceed to step 7.
WARNING: Below 32 o F (0 o C) or
above 140 o F (60 o C), the Banks iQ
may be susceptible to damage as a
result of extended direct exposure
to sunlight, heat or extreme
cold. It is highly recommended
that the Banks iQ be removed
from its mounting location if the
vehicle will be subjected to high
concentrations of sunlight, heat
or cold for an extended period of
time. Gale Banks Engineering is not
responsible for damage to Banks iQ
resulting from exposure conditions .
CAUTION: Do not use force
when working on plastic parts.
Permanent damage to the part
might result.
1.
Locate the Window Mount
Assembly in your kit.
2.
Assemble the Banks iQ docking
station to the Universal mount by
inserting and sliding the Universal
mount tab into the docking station
groove. Hand tighten the nut behind
the docking station to hold the docking
station in place.
3.
Attach the window mount to your
Banks iQ. See Figure 16. Align and
place the two (2) lower tabs on the
window mount to the corresponding
slots on the bottom of Banks iQ first
then snap the top of Banks iQ into
place.
NoTe: There may be a snug fit when
installing the Banks iQ into the window
mount. Take care not to force this
process.
4.
Find a suitable place on the
windshield for ease of access and
viewing of Banks iQ. Use location
shown in Figure 17 as a reference
for mounting Banks iQ in your
vehicle. Loosen the knob and move
the swivel suction plate to achieve
desired viewing angle of the Banks
iQ screen. Do a test fit and note the
angle necessary to achieve the correct
viewing angle.
Section 3
MOUNTING AND CONNECTING THE BANKS iQ

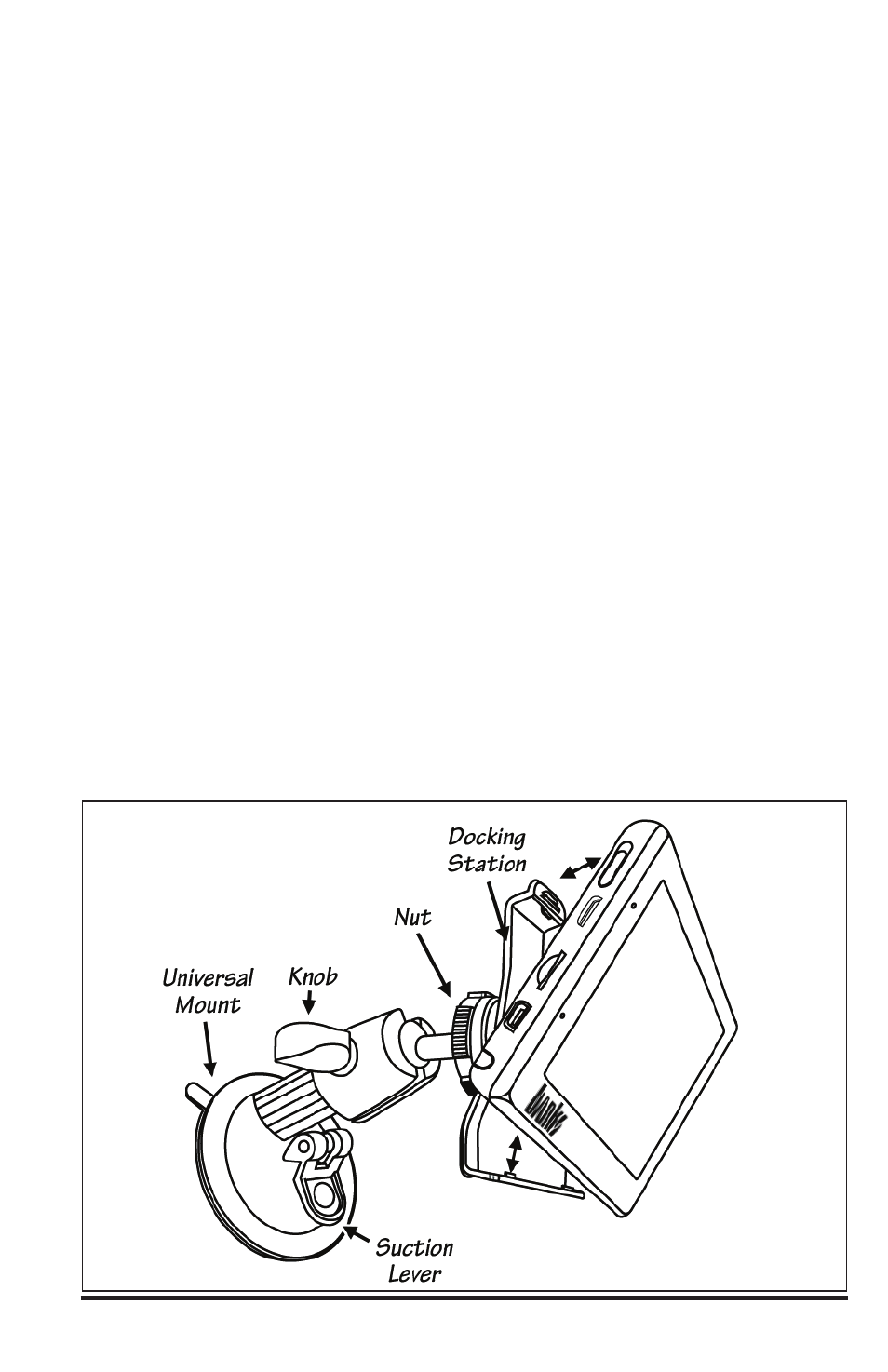

Figure 16 Attaching Banks iQ to window mount
