12
96827 v.6.0
Figure 7
Now, feed the Six-Gun In-Cab cable on
the Turbo/In-cab harness through the
incision made in the firewall grommet
and into the cab See Figure 6.
NoTe: Some thick putty may be used
to provide additional sealing around
the In-Cab cable and the grommet.
If also installing Banks Brake wait
until after Section 2, step 5 to use
putty.
Mounting The Six-Gun Diesel Tuner
13.

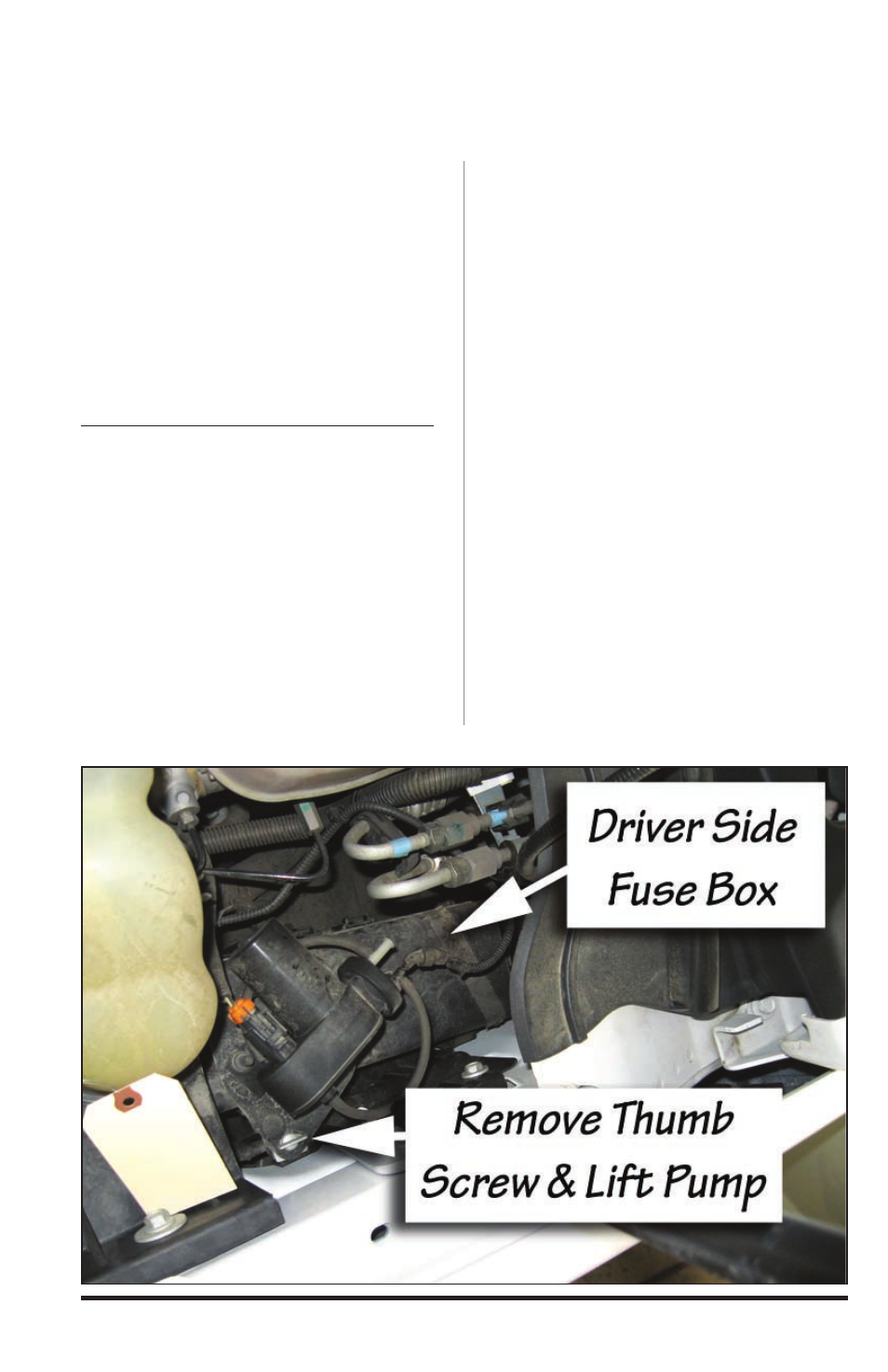

If equipped, remove the vacuum
pump from its mounting location by
turning the thumb screw and lifting the
pump aside. See Figure 7.
14.
clean the area on top of the fuse
box cover.
NoTe: Make sure the entire mounting
surface is clean and free of dirt and
oil before mounting the Six-Gun Diesel
Tuner. Clean and dry as required using
a cloth damped in rubbing alcohol or
similar cleaning solution.
15.
Locate the two (2) dual-lock
fasteners in your kit. Peel the protective
backing off from one side of the hook
and loop interlocking fasteners and
attach to the recess area on the back of
the tuner module.
16.
Peel the protective backing off
the other side of the hook and loop
interlocking fasteners on the back of
the tuner module and affix the tuner to
the top of the fuse box cover as shown
in Figure 8. Apply light pressure to the
Six-Gun Diesel Tuner module by hand
for 60 seconds to create a strong bond
between the fuse box and hook & loop
interlocking fasteners.
17.
connect the PcM and Turbo/
In-cab harness connectors to the
correct Six-Gun module connection. The
connections are keyed differently so
make sure to connect the correct one
into the appropriate connection. See
Figure 8.
