Rough Country 1064 User Manual
Page 5

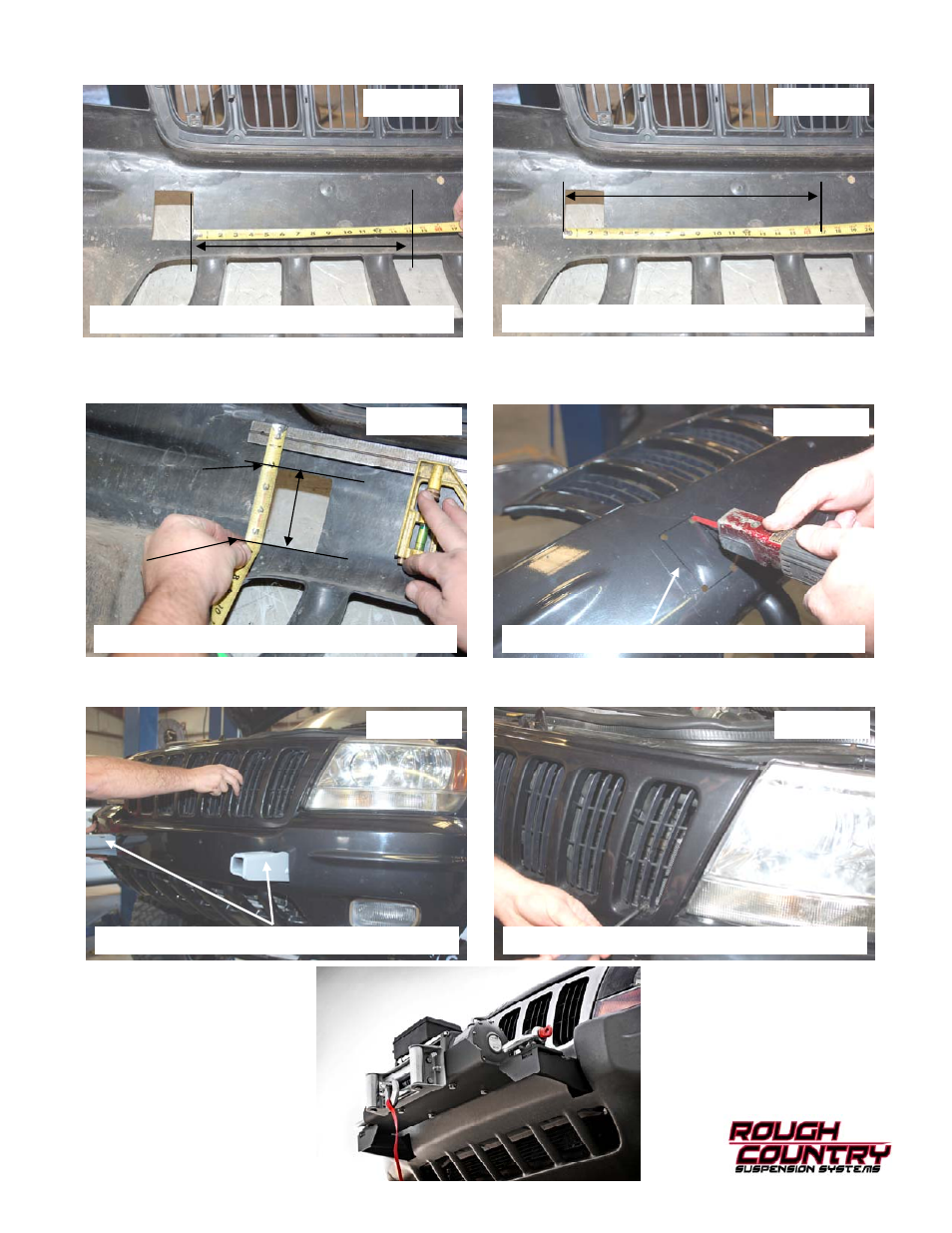

20. Using the pin the retainer was removed from, measure 14 1/8 and 16 3/4 over and mark. See Photo 19 & 20.
21. Using a straight edge pushed to the top of the inside of the bumper and mark lines 1 7/8” and 5 1/8” and mark. See
Photo 21. The box should measure 2 5/8” x 3 3/8”.
22. Drill the bumper and cut using a body saw. See Photo 22.
23. Place the grill over the frame brackets. See Photo 23.
24. Reinstall the screws removed from the grill. See Photo 24.
Photo 19
Photo 20
14 1/8”
16 3/4”
1 7/8”
5 1/8”
Photo 21
Photo 22
Photo 23
Photo 24
MEASURE 14 1/8” AND MARK
MEASURE 16 3/4” AND MARK
MEASURE 1 7/8” & 5 1/8”AND MARK
CUT BUMPER
PLACE BUMPER OVER BRACKETS
REINSTALL GRILL SCREWS
