13. Install the winch plate bracket in the two rear holes using the supplied 1/2” x 1 1/2” bolts flat washers as shown in
Photo 13. Do not tighten at this time.
14. Place the supplied flat bracket under the frame as shown in Photo 14 and secure with the 1/2” x 1 1/2” bolts and flat
washers in the two front holes. Do not tighten at this time.
15. Repeat installation on opposite side.
16. Place the winch plate and front cover on the frame bracket and align holes. See Photo 15. Temporarily install the
supplied 1/2” x 1 1/2” winch plate bolts.
17. Tighten the 1/2” frame brackets using a 3/4” socket and remove the winch plate.
18. Remove the retainer shown that secures the inner bumper foam to the bumper. See Photo 17.
19. Remove the bumper foam. See Photo 18.

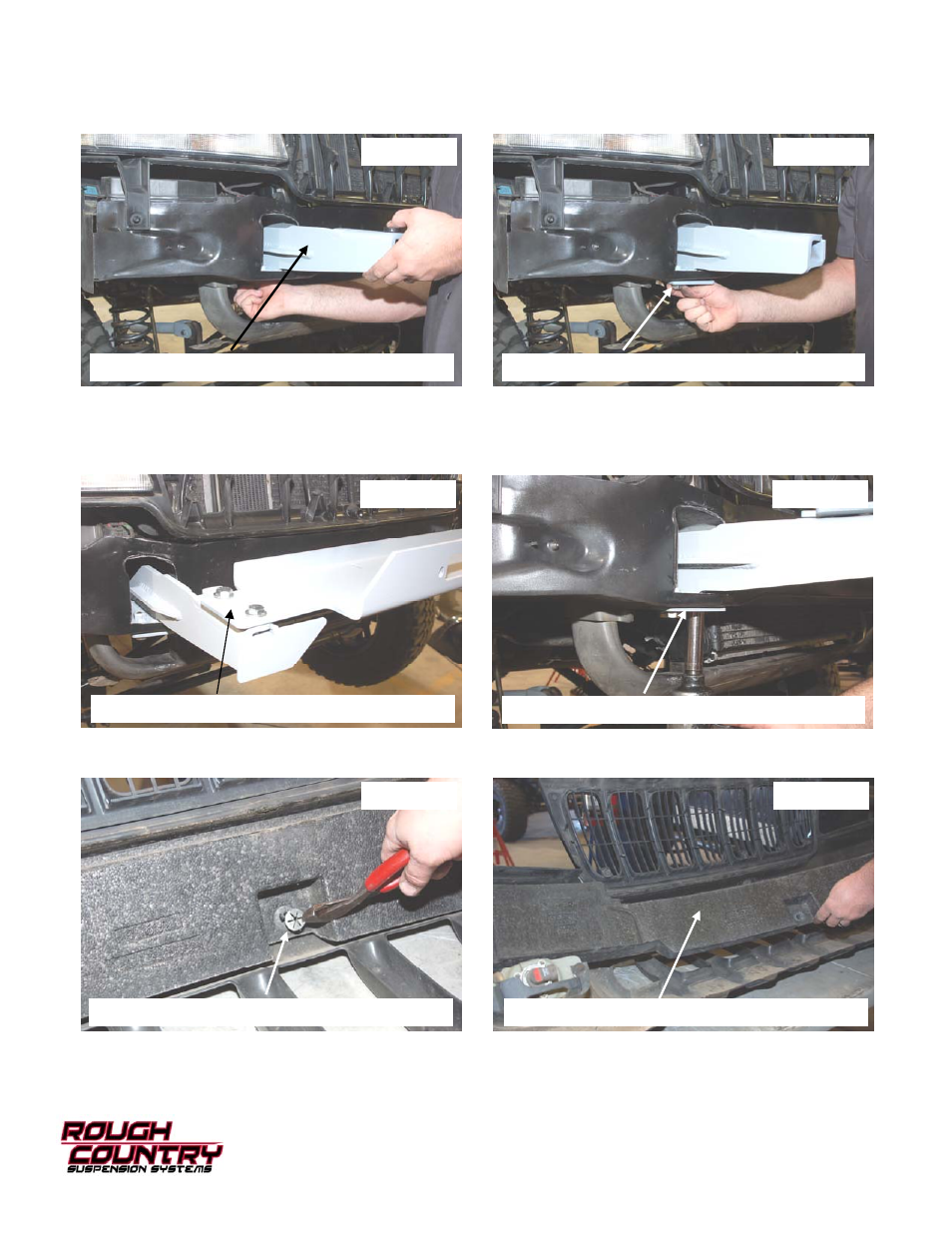

Photo 14 Photo 13
Photo 15 Photo 16
Photo 17 Photo 18
INSTALL BRACKETS IN FRAME REMOVE THE FRONT BOLTS AND PLATE
PLACE PLATE ON BRACKETS AND ALIGN TIGHTEN FRAME HARDWARE
REMOVE THE RETAINER WASHER REMOVE THE FOAM FROM BUMPER
