Rough Country 51180-15 - Manual (Page 6)

Fabric Replacement Top – Installation Instructions
Rev. D 0606 51127 / 51180 pg. 6

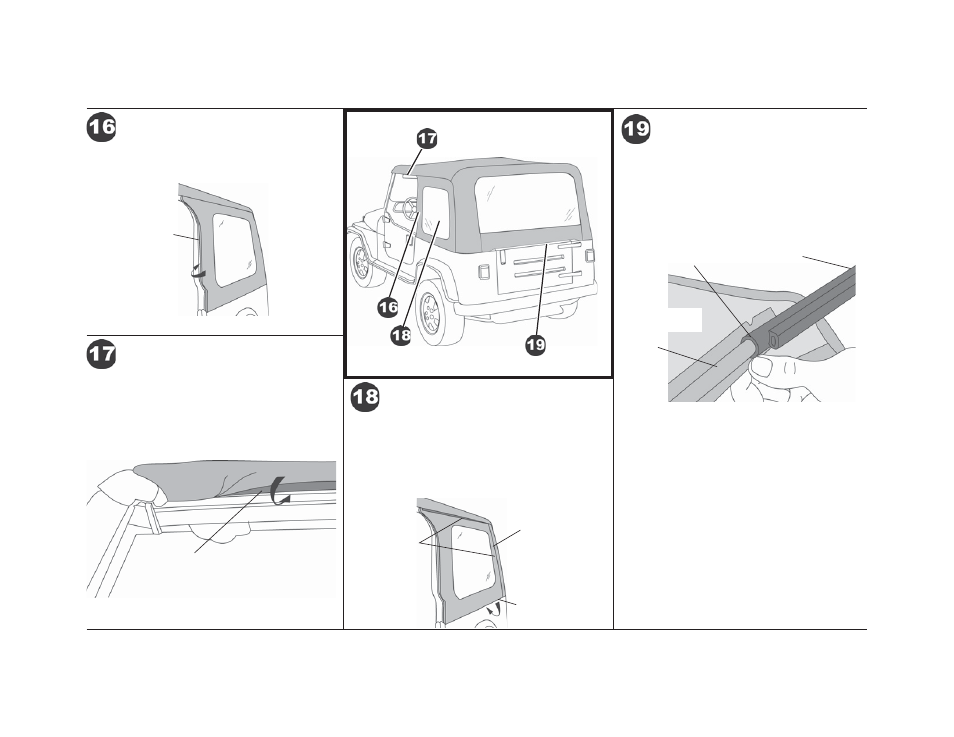

Locate the two plastic strips sewn to the sides of
the top, above each door. Slip the strips into the
channel in the Door Surround above the door open-
ing. It is easiest to insert the front plastic strip into
the channel fi rst.
Roll the plastic along the front of the Quarter
Panel into the channel of the Door Surround
on the vehicle.
Roll Plastic Strip into
channel in retainer
Secure Front of Quarter Panels
Roll Plastic Strips
into channel above
door opening
Secure Top above Door
Openings
Close the zippers on the Quarter Panels the rest of
the way to the lower rear corner of the panel.
Start at the rear and roll the plastic along the bottom
of the panel into the retainer on the vehicle. Then
fasten the hook and loop strips along the top and
rear of the panel to the top.
Roll Plastic Strip into
channel in retainer
Fasten Hook and
Loop Strips
Close Zipper
Secure Quarter Panels
Remove the Rear Window from the box and lay it
fl at with the backing side up. Locate the Tailgate
Bar set aside in Step One. The bar has a “C”
shaped channel, when viewed from the end. Orient
the bar with the round seal down and slide the “C”
channel on the retainer onto the tubed strip sewn to
the backing side of the Rear Window.
Rear Window -
Backing Side
Tailgate Bar Tailgate Retainer
Channel
Tubed
Strip
Install Tailgate Bar on
Rear Window
