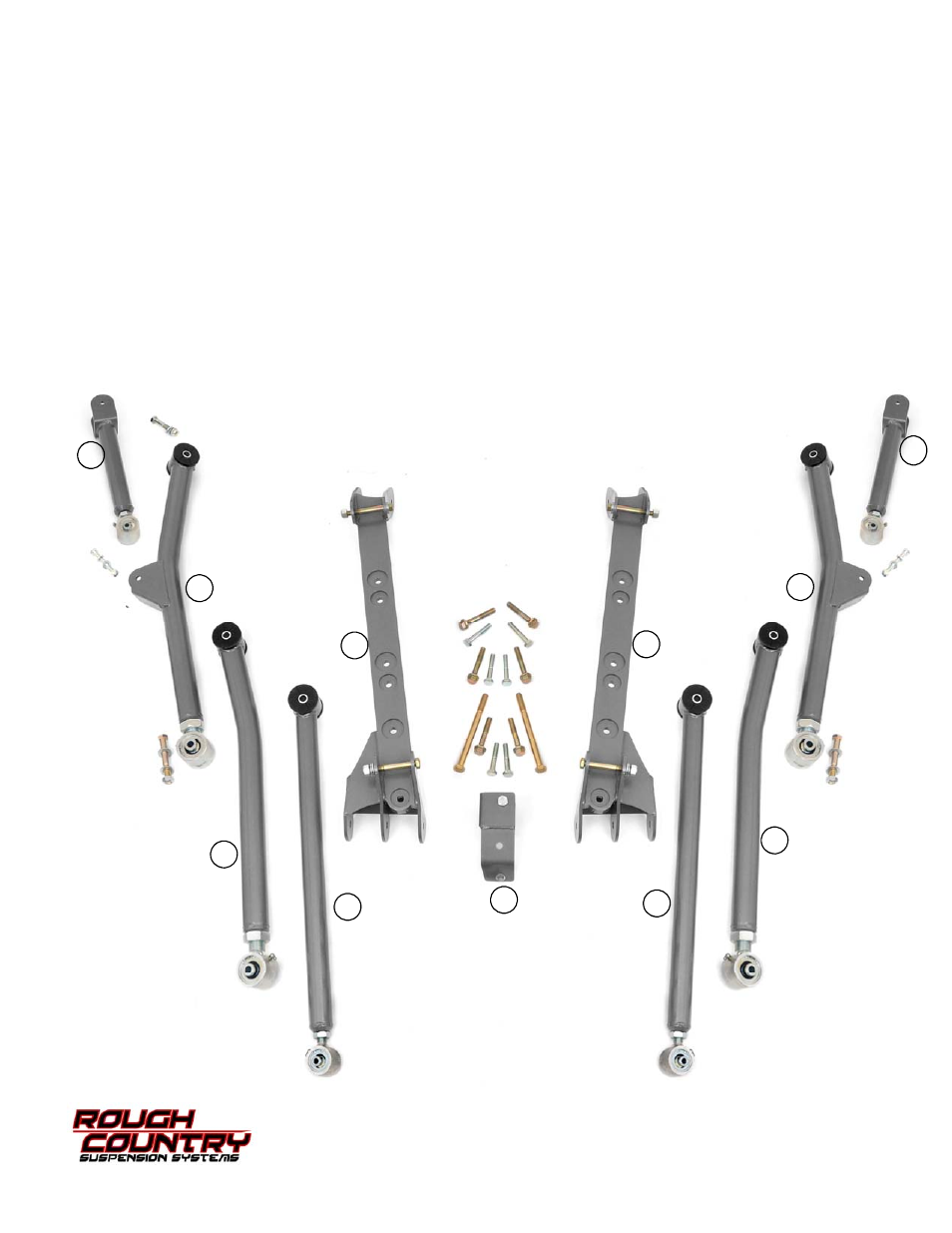

1663Box1:
1-Dr Side Control Arm Mount (A)
1-Pass Side Control Arm Mount (B)
1-Rear Track Bar Bracket (C)
2-Front Upper Adj Arms (D)
2-Large Arm Ends
2-Small Arm Ends
1663Box2:
2-Front Lower Adj Arms (E)
2-Rear Lower Adj Arms (F)
2-Rear Upper Adj Arms (G)
2-Large Arm Ends
2-Small Arm Ends
Fastener Breakdown:
1663Bag1:
For Control Arm Mounts:
4-1/2” x 4” Bolts
8-1/2” Washers
4-1/2” Lock nuts
For Transfer Case Skid Plate
6-9/16 x 4 1/2” Bolts (97-02)
OR 6-12mm x 65mm Bolts (03-06)
6-Flat
Washers
For Front Lower Control Arms
2-9/16” x 4” Bolts
4-9/16” Flat Washers
2-9/16” Lock Nuts
For Front Upper Control Arms
2-10mm x 80mm Bolts
4-10mm Flat Washer
2-10mm Lock Nuts
For Rear Lower Control Arm:
2-9/16” x 7” Bolts
4-9/16” Flat Washers
2-9/16” Lock Nuts
KIT CONTENTS
For Rear Track Bar Bracket
2-5/16” x 1” Bolt
4-5/16” Flat Washers
4-5/16” Lock Nuts
1-12mm x 65mm Bolt
1-12mm Flange Lock
1-Crush Sleeve
For use with Rubicon Models:
For Compressor Bracket
4-5/16” x 1” Bolts
4-5/16” Lock Nuts
8-5/16” Flat Washers
1663Bag2
12-Control Arm Bushings
6- Control Arm Sleeves
8-Grease Fittings
A B
C
D
D
E E
F
F
G
G
