Rough Country 1117 User Manual

Page 2

1. Chock the front wheels.
2. Jack up the vehicle.
3. Support the vehicle with jack stands.
4. Remove

wheels/

tires.

5. Remove the 4 bolts from the filler neck guard with a 10mm socket. Retain hardware for reuse. See Photo 1 & 2.
6. Remove Fuel Filler guard and set aside.
7. Place jack under axle for support.

8. Remove the lower shackle bolt with a 21mm wrench & remove the upper shackle bolt with a 21 mm wrench. See

Photo 3.

9. Lower axle and remove the shackle.
10. Install the new hanger bracket with the O.E. upper shackle bolt. See Photo 4. Do not tighten at this time.

11. Install the flag nut plate with the longer tab to bottom as shown with supplied 7/16” x 1 1/4” bolt and flat washer. See

Photo 5. Tighten using 5/8” wrench.

12. Torque all bolts at this time.
13. Reinstall Fuel Filler Guard with OE Hardware. DO NOT OVER-TORQUE.
14. Install the new hanger with the supplied 1/2” X 1 1/4” bolt and flat washers. See Photo 6.

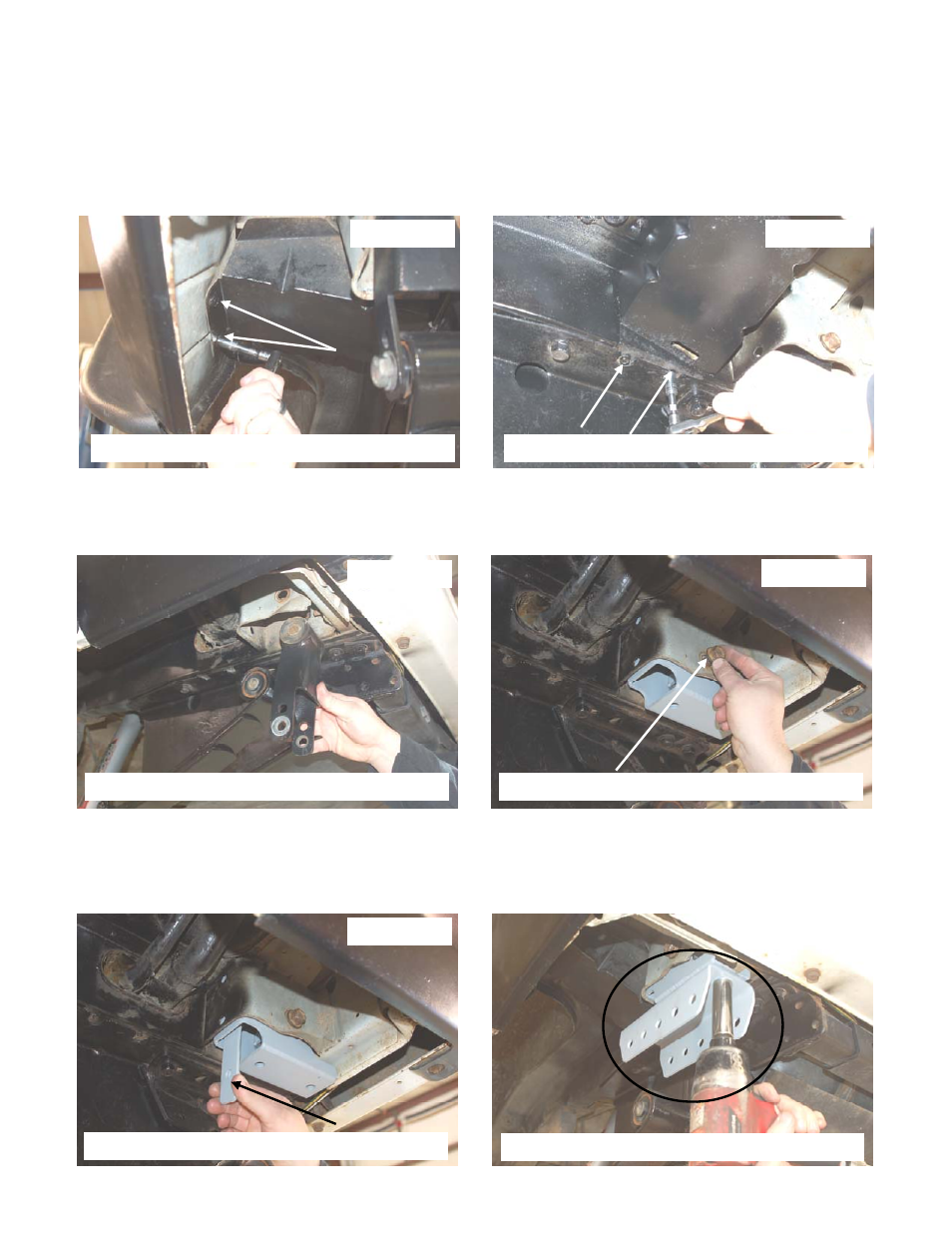

INSTALLATION INSTRUCTIONS

PHOTO 1

PHOTO 2

PHOTO 3

PHOTO 4

PHOTO 5

PHOTO 6

REMOVE FILLER GUARD

REMOVE SHACKLE

INSTALL HANGER FRAME BRACKET

INSTALL HANGER STRAP

INSTALL SHACKLE HANGER
