1. Chock the front tires. Jack up the rear of the vehicle and place jack stands under the frame rails, remember to raise
the rear high enough so the axle can be lowered to install the blocks. Lower the jack and let the vehicle rest on the
jack stand, keep the jack under the axle this will be used to move the axle up and down during installation.
2. Remove the bolts from the 4 factory brake line and ABS wire brackets. Also remove the emergency brake cable
bolts from brackets. Use 12mm wrench to remove bolts.
See Photo 1.
3. Remove shocks using a 17mm for both top and bottom bolts.
See Photo 2.
4. Using a 19mm socket remove the factory U-bolts and lower the axle with the jack. Be careful not to over extend the
brake lines or ABS wires. Install lift blocks and new U-bolts.
See Photo 3. Tighten with a 22mm socket.
5. Insert the new rear shock relocation bracket in
Photo 4 through the frame with a 10mm x 55 bolt and a male stem
shock bushing.
6. Using a 17mm wrench tighten the 10mm nut and cup washer to hold the shock relocation bracket in
Photo 5.
7. Install the supplied Rough Country 2.2 series shock
Part # 660564 to the shock relocation bracket with supplied
12mm x 65mm bolt and flange lock nut.
See Photo 6. Tighten using a 18mm socket and 19mm wrench.

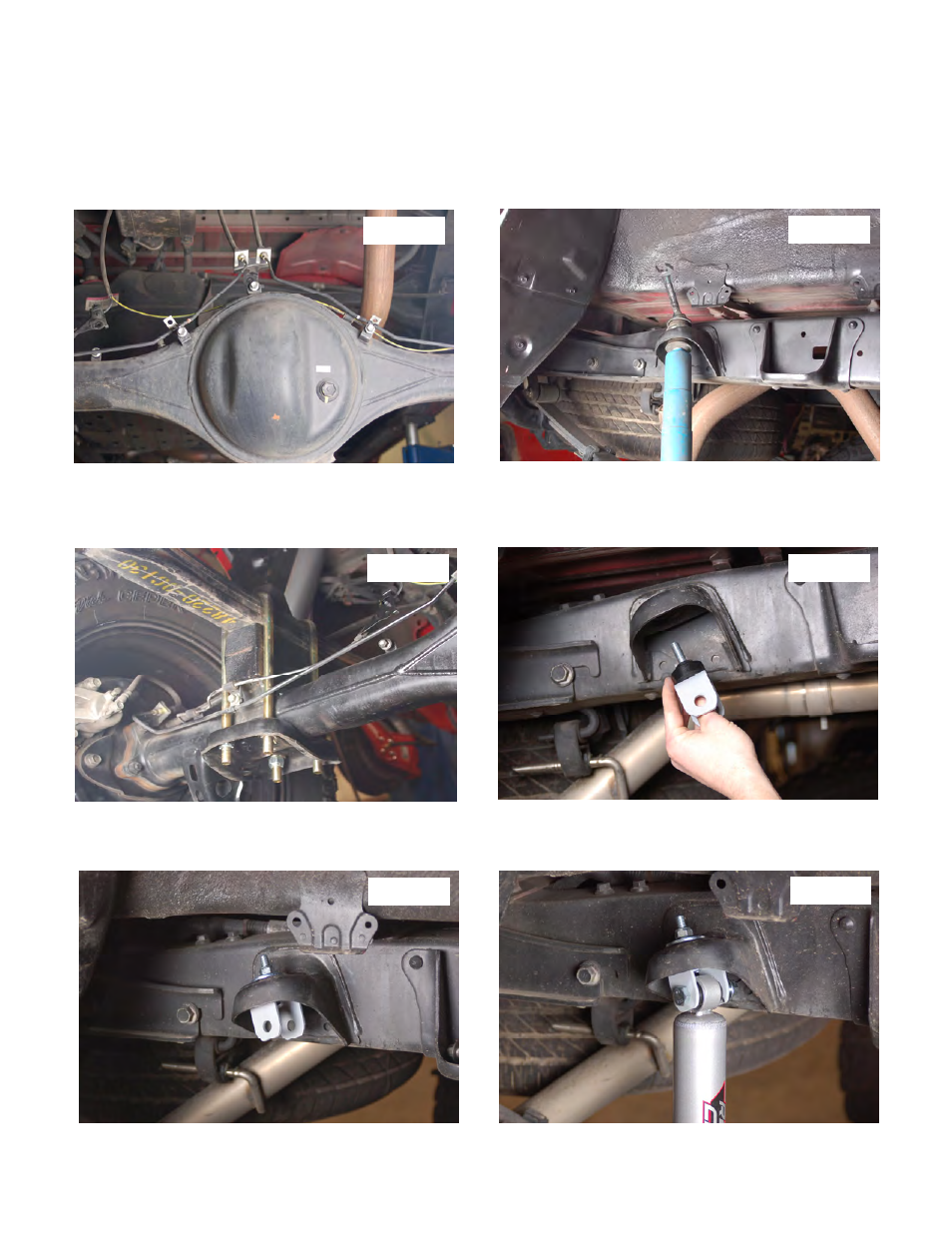

REAR INSTALLATION INSTRUCTIONS
Photo 1 Photo 2
Photo 5 Photo 6
Photo 3 Photo 4
