8. To install the new e-brake bracket measure from the rear measure 1 5/8” and from the bottom measure up 1 3/8”
and mark hole to be drilled. See Photo 7 & 8.
9. Drill hole using a 11/32” drill bit. See Photo 9.
10. Install the new bracket as shown with the supplied 7/16” x 1” bolt, washers, nut in the factory hole and 5/16” x 3/4”
bolt, washer and nut in the drilled hole. See Photo 10. Tighten using a 19mm and 13mm socket / wrench.
11. Using a jack support the rear end and remove U-bolts using a 21mm socket and remove the factory blocks. See
Photo 11.
12. Install the supplied blocks on the block pin holes on the axle and raise the axle into place. See Photo 12.
13. Install the axle u-bolts and tighten using a 22mm socket.

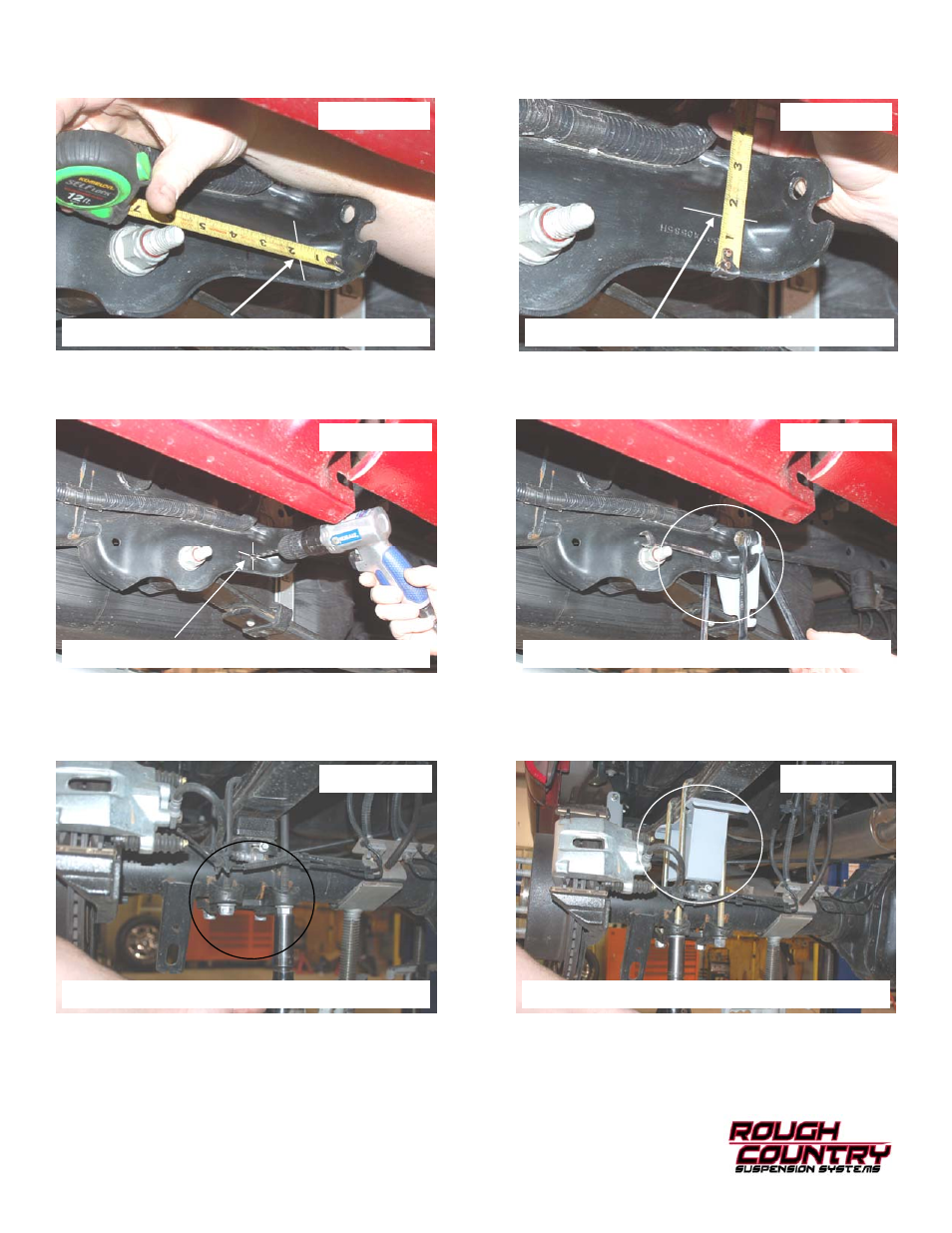

PHOTO 8 PHOTO 7
PHOTO 9 PHOTO 10
PHOTO 11 PHOTO 12
MEASURE 1 3/8” & MARK MEASURE 1 5/8” & MARK
DRILL USING 11/32” DRILL BIT INSTALL NEW BRACKET
REMOVE FACTORY U-BOLTS AND BLOCK INSTALL BLOCKS AND U-BOLTS
