Model Description
HDD-M4-1-RM MPEG-2 & MPEG-4 (H.264/AVC) Video/Audio Decoder, 1RU Rackmount
Models

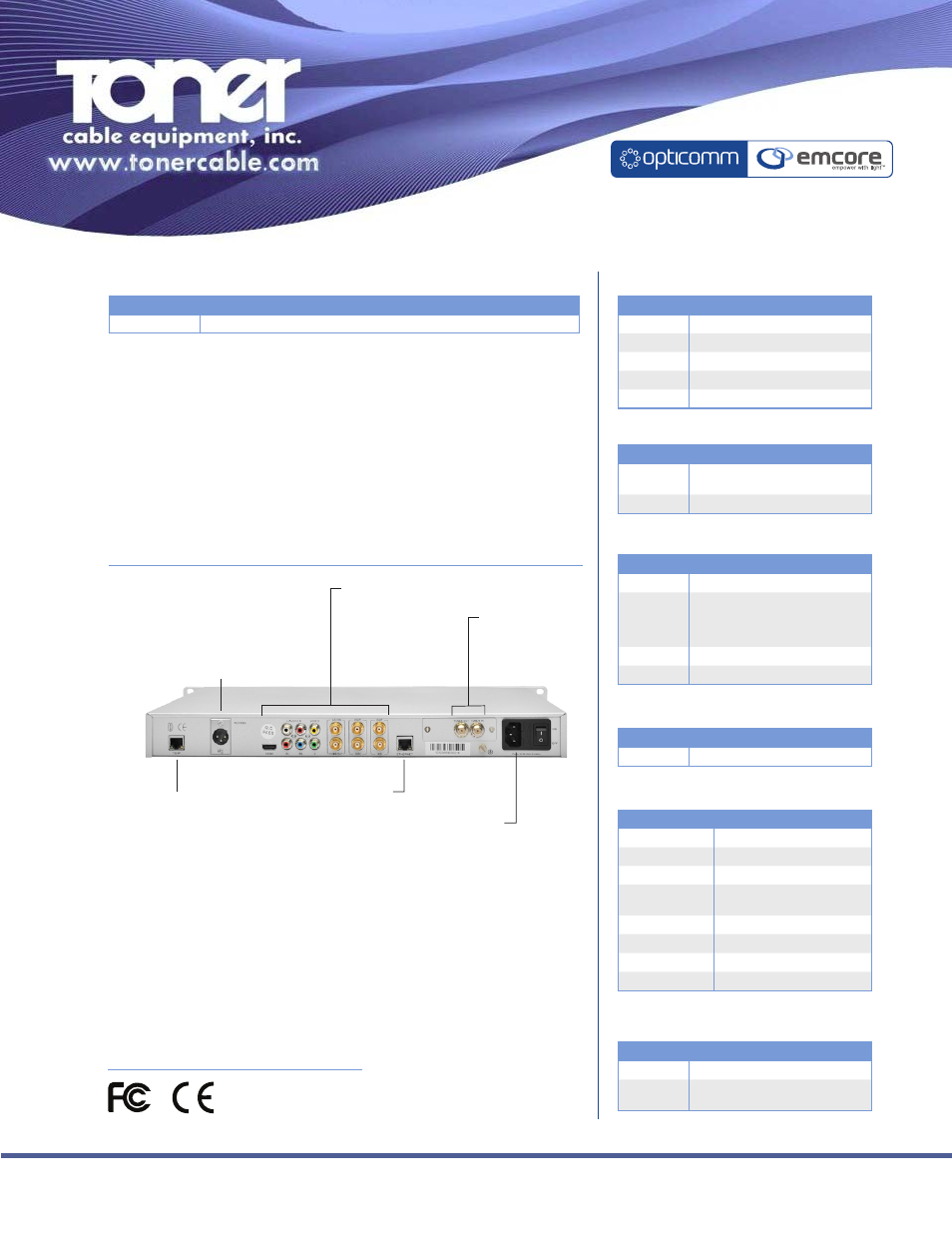

Connection Diagram
Power Input
Video/Audio Outputs
ASI Input/Output
TS/IP Management Port
RF Input/Output
Ethernet Input Port
AES/EBU Output
Compliance
TS Stream Input Interfaces
Specifications Values
DVB-S/S2 QPSK, 8PSK (1-45 Mbps)
DVB-T COFDM, 2K& 8 K FTT (0.45-7 Mbps)
DVB-C QAM (16/32/64/128/256) (3-7 Mbps)
DVB-ASI BNC, 75 Ohm
TS/IP 1G, MPEG-2/MPEG-4 TS over UDP & RTP
Video Decoding
Specifications Values
Compression MPEG-2, MPEG-4/H.264 AVC (SD & HD)
Resolutions 1080i @ 60/50 Hz
720p @ 60/50 Hz
576i @ 50 Hz
480i/480p @ 60 Hz
Formats NTSC, PAL, SECAM
Broadcast Type Unicast & multicast
Audio Decoding
Specifications Values
Compression MPEG-1 and MPEG-2 Layer I, II
Outputs
Specifications Values
Video 1 HDMI, 2 HD/SD-SDI, 2 DVB-ASI, 1 YPbPr, 2
CVBS (1 BNC, 1RCA)
Audio 1 AES3 (XLR), 1 stereo pair (RCA)
Monitoring & Control
Specifications Values
Front Panel Keyboard, LCD display, Status LED’s
Remote TCP/IP, Network management software for
full control & system diagnostics
General
Specifications Values
Input Power 90~250 VAC, 50/60 Hz
Power Consumption 30 Watts (max)
Weight 8.16lbs (3.7kg)
Dimensions 1.73” (1RU) H x 19” W x 10.79” D
(44mm x 484mm x 274mm)
Operating Temperature 32 - 113° F (0 - 45° C)
Operating Humidity 10% - 80% Relative Humidity
Storage Temperature 23 - 122° F (-5 to 50° C)
Storage Humidity 0% - 90% (non-condensing)
HDD-M4-1-RM
Video & Audio IP Decoder
