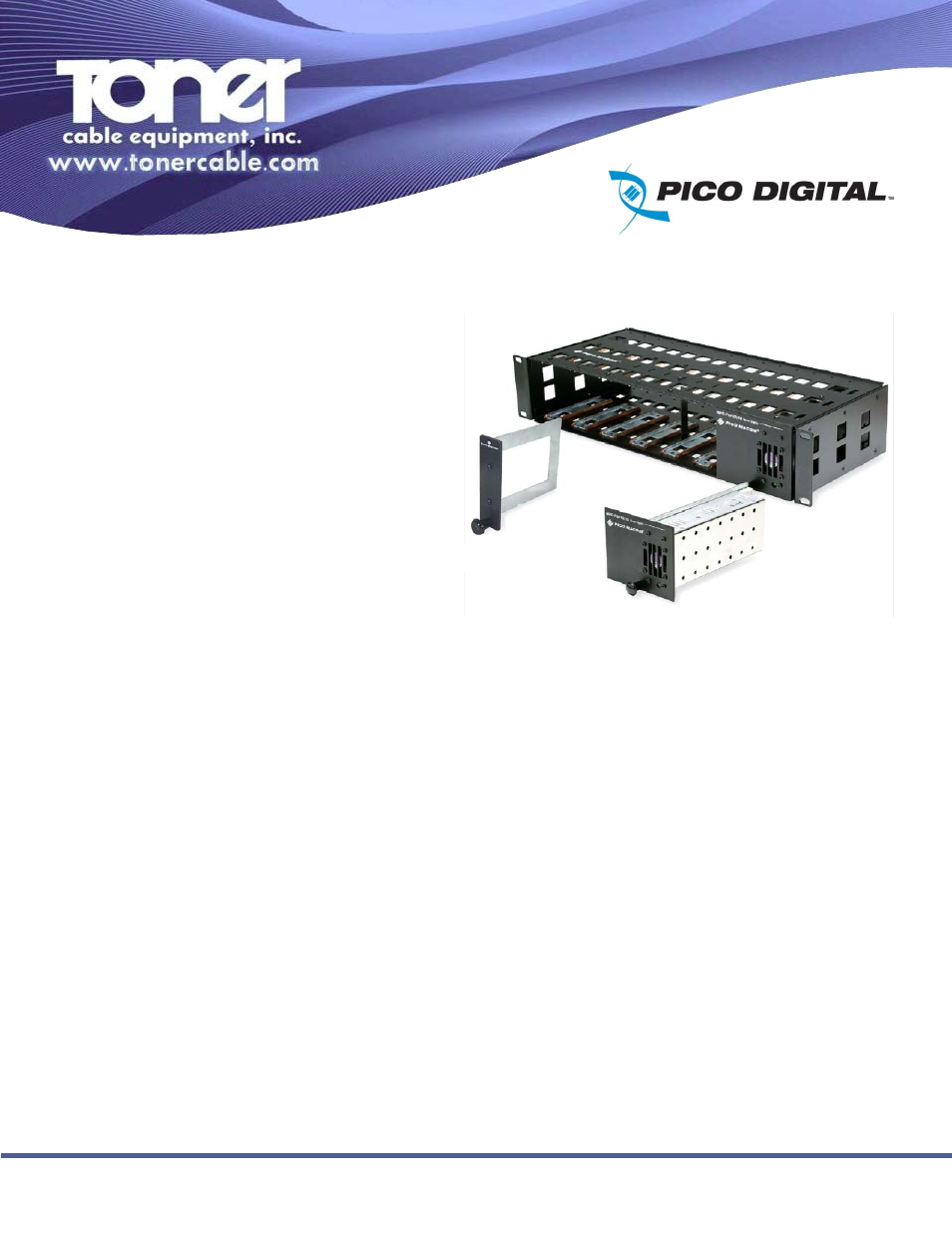

MPC-12 / MPC-12C 12-Slot Universal Mini-Mod Chassis & Power Supply
MPC-PSF12/16 Universal Power Supply Module
•
High capacity fully regulated power supply provides the most
efficient performance, ensuring reliability over a wide range
of environmental conditions
• High efficiency power supply (over 70%) equipped with
cooling fan minimizes power consumption and heat
dissipation
• Current overload protection prevents damage to system and
prolongs power supply life
• Internal fusing circuitry provides current overload protection
and precise voltage regulation, preventing component
damage
MPC-BP Universal Chassis Blank Plate
•
Blocks escape of cool air when used with forced air ventila-
tion systems
• Provides uniform look when not all module slots are filled
• Slides easily into Pico Macom mini-chassis systems and
those of other manufacturers
Module Capacity 12
Input Voltage Range 90-240 VAC
Input Voltage Frequency 47 - 63 Hz
Power Required 68 Watts Each
Output Volt. (V1) @ 4A 5 VDC
Output Volt. (V2) @ 4A 12 VDC
Efficiency 70%
Line Load Regulation ±1%
Minimum Load 10%
Video Input Connector 75 F-Female
Audio Input Connector 5K F-Female Unbalanced
RF Output Connector 75 F-Female
UR Listed Power Supply Yes
Operating Temperature 10-50°C
Dimensions (L x D x H)
MPC-12/12C 19" x 7.5" x 3.5"
MPC-BP 1" x 4" x 3.4"
Weight
MPC-12 7.8 lbs
MPC-BP 0.4 lbs
Specifications
Ordering Information
MPC-12 12 Slot Universal Mini-Mod Chassis and Power Supply
MPC-12C 12 Slot Universal Mini-Mod Chassis Only
MPC-BP Universal Chassis Blank Plate
MPC-PSF12/16 Universal Power Supply
MPC-12
MPC-BP
MPC-PSF12/16
