MPCM45 SAW Filtered Single Channel A/V Mini-Modulator
•
45dBmV minimum output for a 66dB in-band carrier to noise ratio provides
superior picture quality
•
125 Channel Frequency Range 54~806MHz (CATV 2~13, A1~A5, A~ZZZ,
89~125, UHF 14~69)
•
SAW (surface acoustic wave) filtered for superior adjacent channel perfor-
mance enables drop-in channel expansion
•
BTSC stereo compatible pre-emphasis disable switch provides pass-through
for stereo signals
•
Front panel access controls enables easy setup
•
Single-slot design allows up to 12 or 16 units in Pico Macom’s MPC-12,
MPC-12R and MPC-16PS/CS chassis
•
IRC and HRC offsets available for frequency settings in systems using offset
channels
•
Compatible with most manufacturers’ mini-modulator chassis
•
Optional PAL format channels available
•
Nickel plated precision brass threads
969 Horsham Road
l
Horsham, Pennsylvania 19044 USA
l
Phone: 215-675-2053 Fax: 215-675-7543
l
Mini-Modulators, Mini-Demodulators & Chassis
MPCMA SAW Filtered A/V Mini-Modulator
•
45dBmV minimum output for a 63dB in-band carrier to noise ratio provides
superior picture quality
•
135 Channel Frequency Range 54~860MHz (CATV 2~13, A1~A5, A~ZZZ,
89~135, UHF 14~69)
•
Agile microprocessor control enables quick digital push-button channel
selection for ease of installation, configuration and improved system uptime
•
SAW (surface acoustic wave) filtered for superior adjacent channel perfor-
mance enables drop-in channel expansion
•
BTSC stereo compatible pre-emphasis disable switch provides pass-through
for stereo signals
•
Three-digit LED display provides quick channel identification
•
Non-volatile memory ensures channel programming remains after power
loss
•
IRC and HRC offsets available for frequency settings in systems using offset
channels
•
Compatible with most manufacturers’ mini-modulator chassis
•
PAL option available for international operation

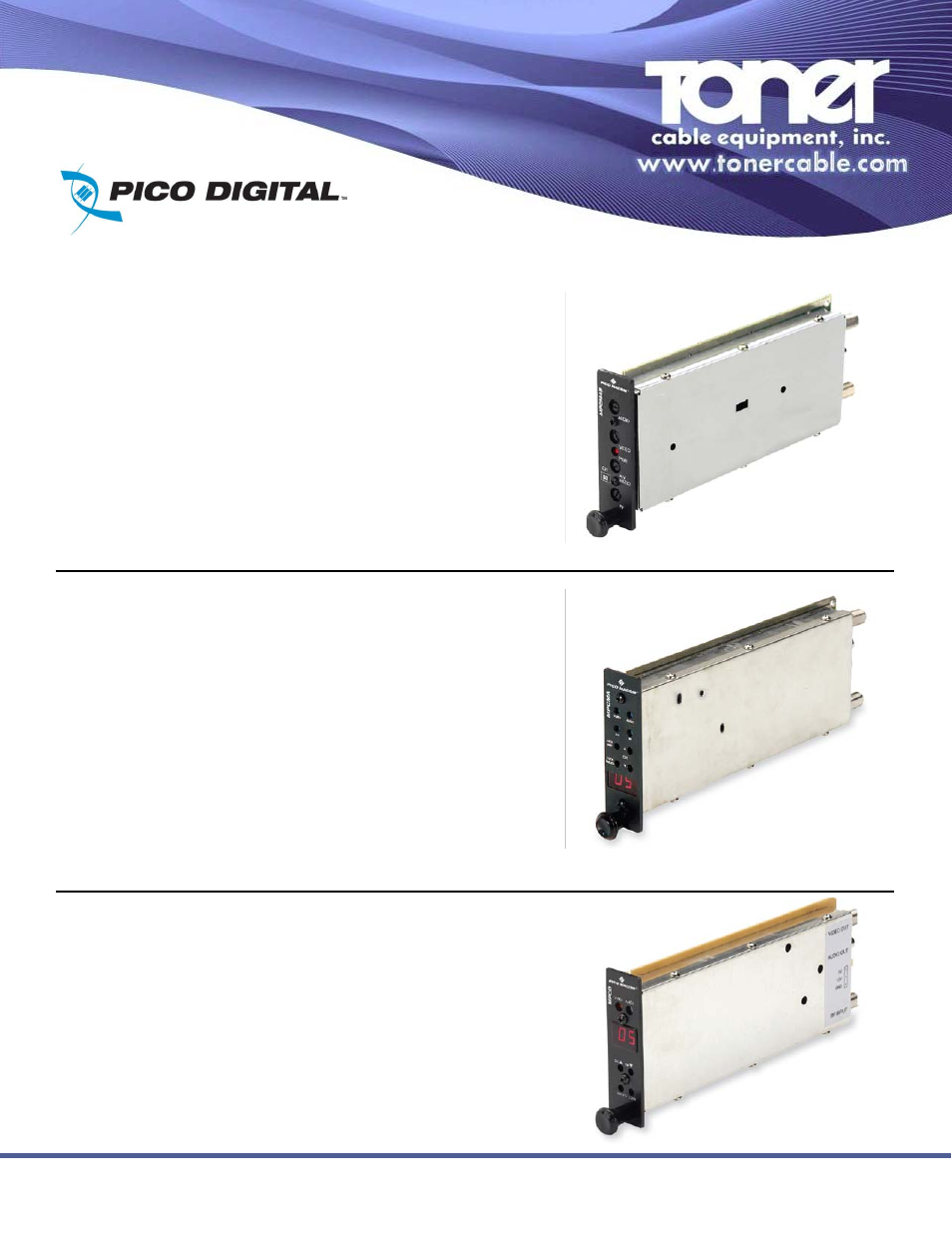

MPCM45
MPCMA
MPCD Agile A/V Mini-Demodulator
•
125 Channel Frequency Range 54~806MHz (CATV 2~13, A1~A5,
A~ZZZ, 89~125, UHF 14~69)
•
Agile microprocessor control with push-button channel selection pro-
vides ease of installation, configuration and servicing
•
SAW filtered for precise adjacent channel rejection
•
>60dB signal to noise ratio for crisp, sharp picture
•
Digital display provides quick channel identification
•
Non-volatile memory ensures channel programming remains after power
loss
•
Single-slot design allows up to 12 or 16 units in Pico Macom’s MPC-12,
MPC-12R and MPC-16PS/CS chassis
•
Fully compatible with most other manufacturers’ “mini-mod” chassis
MPCMD
