Input Interfaces
ASI Transport Stream Input
Connector: 1x BNC (F) 75 Ohm
Max. input rate: 160 Mbps
Packet length: 188/204 byte packets
Standard: EN50083-9
Satellite Input
Connector: 4x F-Type (F), 75 Ohm
Modulation: DVB-S QPSK
Standard: EN300 421
Frequency range: 950 MHz to 2150 MHz
Input level: -25 dBm to -65 dBm
Symbol rate: 1 Msym/s to 45 Msym/s (DVBS),
1y(5) Msym/s to 31 Msyms (/DVB-S2),
60Msym/s on inputs 1,2 (/DVBS2/2)
Bit rate: 170Mbips Max via /DVBS2/2 options
FEC, DVB-S: 1/2, 2/3, 3/4, 5/6, 7/8
LNB Power: 13V, 18V or off, 22 kHz on/off
DVB-S2 Satellite Input
(RX8200/SWO/DVBS2/QPSK)
Modulation: DVB-S2 QPSK
Standard: EN302 307
Symbol rate: 5 to 31 (60*) Msym/s
FEC DVB-S2 QPSK: (1/4, 1/3, 2/5*), 1/2, 3/5,
2/3, 3/4, 4/5, 5/6, 8/9, 9/10
DVB-S2 FEC frame: Short frames*, Normal
frames
DVB-S2 Satellite Input
(RX8200/SWO/DVBS2/8PSK)
Includes DVB-S2 QPSK functionality
Modulation: DVB-S2 8PSK
FEC, DVB-S2 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9,
9/10
DVB-S2 Satellite Input
(RX8200/SWO/DVBS2/16APSK)*
Includes DVB-S2 QPSK and 8PSK
functionality
Modulation: DVB-S2 16APSK
FEC, DVB-S2 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9,
9/10
DVB-S2 Low Symbol Rate
(RX8200/SWO/DVBS2/LSYM)
Symbol rate - extended to 1 to 31 (60*)
Msym/s
Applies to DVB-S2 modes only
Monitoring Video Output
SD Video Output
HD services monitored as SD with ARC under
manual or AFD control
Composite Video
Connector: 2x BNC (F) 75 Ohm
Format: PAL / NTSC
SDI Output
See TS output
TS Output
SDI/DVB ASI-C (Switchable)
Connector: 2x BNC 75 ohms
SD-SDI standard: SMPTE 259M
Embedded Audio: SMPTE 272M (SD)
ASI standard: EN50083-9
IP Output Option (RX8200/HWO/IP/OUT)
Transport encapsulation into IP
MPTS/IP/UDP with multi-service transcode -
CBR mode
SPTS/IP/UDP with single service transcode-
CBR mode
2x Gigabit Ethernet outputs, 100/1000
autosensing
Conditional Access Options
Director by Ericsson Multi-service decryp-
tion (RX8200/SWO/DIR5/MSD)
Director multi-service decryption
DVB Common Interface
(RX8200/SWO/CI)
Enables support for all major CAM modules
Single service decryption
Service pre-filtering
DVB Common Interface Multi-Service
Decryption (RX8200/SWO/MSD)
Single CAM, up to 24 PIDs
BISS Decryption (RX8200/SWO/BISS)
Decryption of BISS Mode 1 and E
BISS Multi-Service Decryption
(RX8200/SWO/BISS/MSD)
Common BISS key
Stream Processing
SI Manipulation
Regeneration on PAT and PMT
Regeneration or re-mapping of NIT, SDT, EIT,
CAT
Insertion of locally stored NIT
Pass-through of TDT/TOT
Re-mapping of PID for video, audio services
Re-mapping of PID for DVB subs, Teletext,
MHEG Data
*Check availability

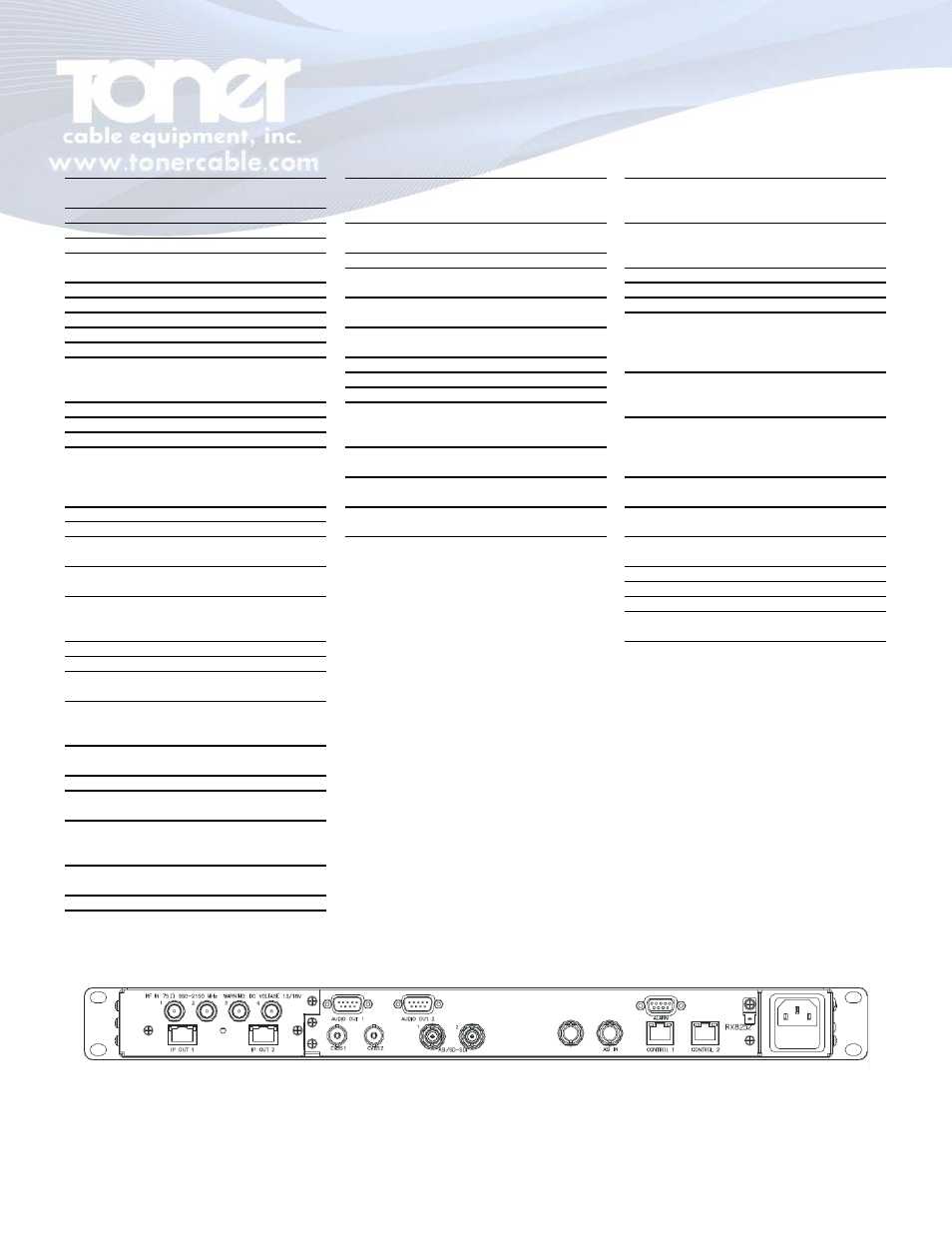

SPECIFICATIONS
SAMPLE CONFIGURATION
