QMOD-<3%+'79Modulator
Specifications
Feature
General Integrated HD/SD A/D converter/modulator
Physical 8.5” [216mm] wide x 1.73” [62mm] height (1RU) x 6.0” [153mm] deep
1.5 lbs [0.68kg]
+32° to 122° F operating temperature, fan cooled
Rack mounting for one or two units side-by-side optional (RK1, RK2EZ)
Encoding MPEG2 Profile:MP@HL for HD, MP@ML for SD
Auto-syncs to1080i, 720p, 480p, and 480i resolution, depending on input
Compensates for 60/30 Hz Component sources
Video Encoding bitrate 11, 13, 15, 18 or 25 Mbps (18 or less for dual-channel)
AC-3 (Pass-through or stereo) or MPEG1, Layer 2 audio
MTS Dual-language capability
Dual-channel operation carries 2 full HD sub-channels
Modulation Switchable 64/256 QAM, J83 Annex B, Interleaving Modes (128,1)
MER 38 dB typical
Compliance FCC Class B, ROHS, meets California standards
Front Panel Power button
Select and directional buttons for menu setup
Menu LCD, 2 lines of 20 white characters each

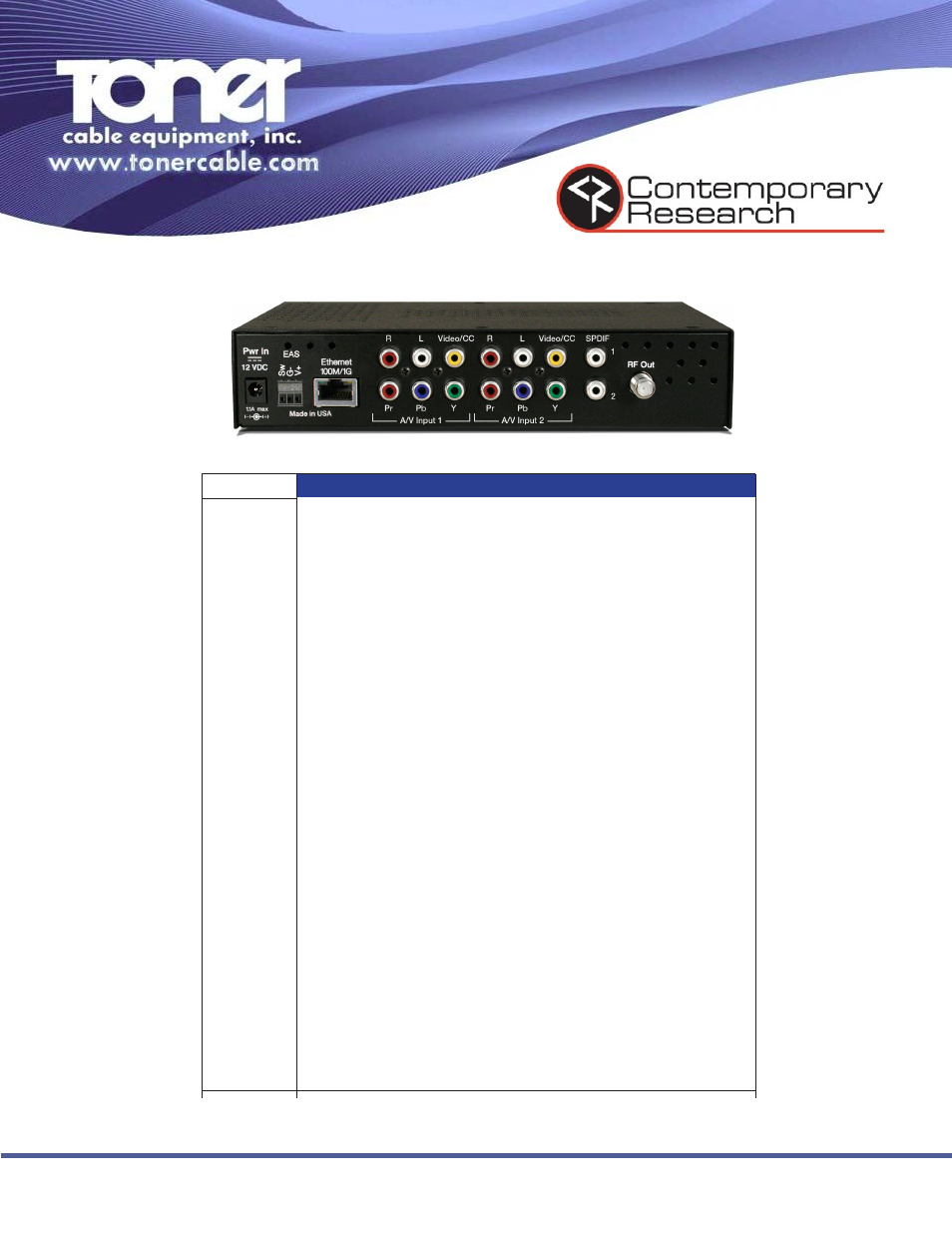

Back Panel
Power
EAS
2.1mm coaxial jack (inside center conductor positive)
1.1A maximum, 11.5 to 13.5 VDC, 12 VDC typical
Captive-screw terminal with 3 GPI Pins for momentary or latching control
Ethernet RJ-45 GigE Ethernet: Web page, control, streaming video, firmware updates
Video Inputs Two Component Y, Pb, Pr RCA inputs (1080i/720p/480p/480i), 59.94/60, 29.97/30 Hz
Composite Video: RCA female (480i), 29.97 Hz, also used for Line 21 captioning data
Audio Inputs Two Digital SPDIF Coax RCA jacks, PCM/AC-3 48K sample rate
Two stereo analog RCA inputs
Inputs assignable to video inputs
RF ‘F’, female, 75 ohm impedance
Agile, channels 2-135 (48-860 MHz), standard, HRC, or IRC spacing
6 MHz bandwidth fits any open channel without interference to adjacent channels
1 KHz resolution, +/- 30 ppm accuracy, +/- 35 ppm stability
29 dB typical output power, attenuated in 5 steps, approx 4 dB
Includes Compact PS12-1.5 switching power supply, 1.5A 12 VDC, fits power strip
Options RK1 Single Rack Kit
RK2EZ Dual Rack Kit
